Description

Price

11056

BRACKET,CALIPER

11056-0202

$119.31

41080

DISC,RR,BLACK

41080-0730-11H

$184.27

43034

HOLDER-BRAKE

43034-0170

$136.53

43045

SHAFT-CALIPER

43045-0013

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0232-DJ

$401.25

43082

PAD-ASSY-BRAKE

43082-0080

$68.09

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,DISC PLATE,8X15

92150-1811

$5.00

92210

NUT

92210-0615

$6.26

130

BOLT-FLANGED,8X20

130BA0820

$4.14

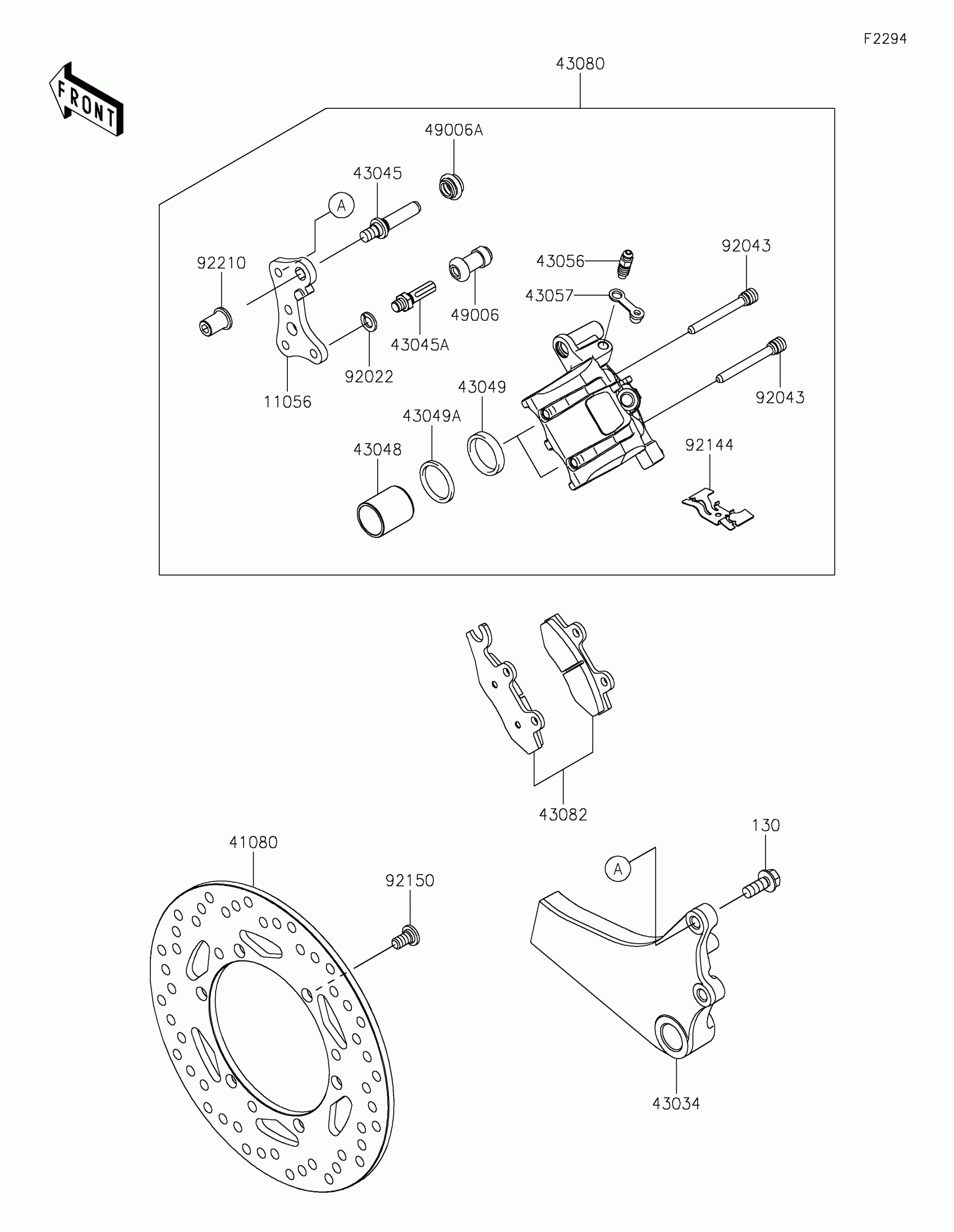

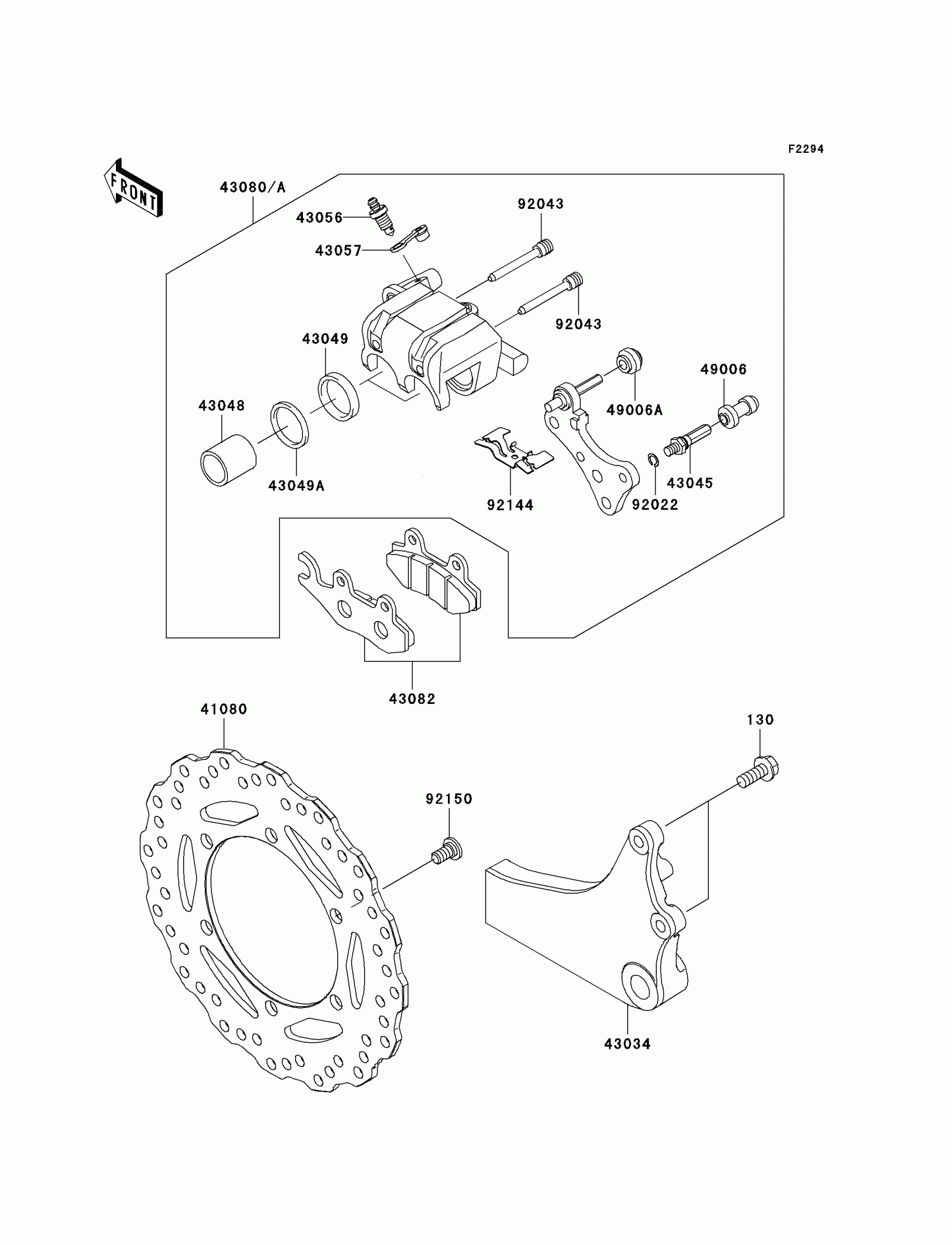

Kawasaki KLR®650 Rear Brake Diagram

BRACKET,CALIPER

DISC,RR,BLACK

HOLDER-BRAKE

SHAFT-CALIPER

SHAFT-CALIPER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,RR,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

WASHER,WAVE

PIN,HANGER

SPRING,PAD

BOLT,DISC PLATE,8X15

NUT

BOLT-FLANGED,8X20
