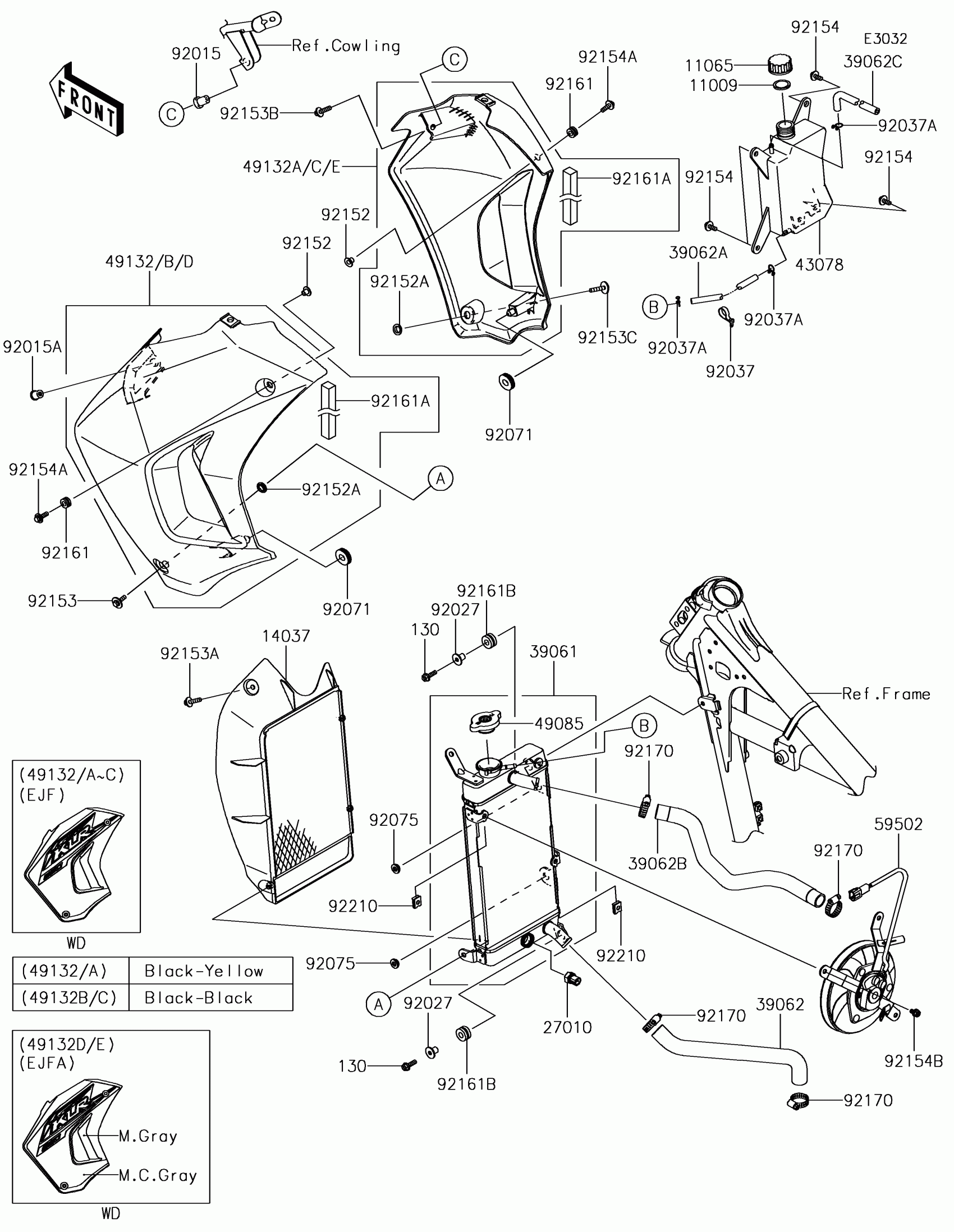

Kawasaki KLR™650 Radiator(EJF/EJFA) Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11065
CAP
11065-0969
$2.02
130
BOLT-FLANGED,6X20
130BA0620
$1.74
14037
SCREEN
14037-0056
$58.98
27010
SWITCH
27010-1443
$135.39
39061
RADIATOR-ASSY
39061-0690
$994.32
39062
HOSE-COOLING,W/P-RAD.
39062-0149
$38.19
39062A
HOSE-COOLING,RESERVOIR-CAP
39062-0340
$15.04
39062B
HOSE-COOLING,HEAD-RAD.
39062-0341
$48.48
39062C
HOSE-COOLING,RESERVOIR
39062-1220
$26.45
43078
RESERVOIR
43078-0583
$63.78
49085
CAP-ASSY-PRESSURE
49085-0006
$50.52
49132
SHROUD-ENGINE,LH,M.S.BLACK
49132-5446-660
$280.63
49132A
SHROUD-ENGINE,RH,M.S.BLACK
49132-5447-660
$280.63
49132B
SHROUD-ENGINE,LH,M.S.BLACK
49132-5448-660
$280.63
49132C
SHROUD-ENGINE,RH,M.S.BLACK
49132-5449-660
$280.63
59502
FAN-ASSY
59502-0605
$474.62
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92015A
NUT
92015-1700
$8.58
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92037A
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1043
$5.46
92075
DAMPER,8MM
92075-1138
$3.65
92152
COLLAR,6.3X8.3X9.2
92152-0237
$5.65
92152A
COLLAR
92152-1235
$4.13
92153
BOLT,6X20
92153-0864
$7.43
92153A
BOLT,FLANGED WP,6X25
92153-1008
$2.63
92153B
BOLT,FLANGED,6X30
92153-1457
$3.39
92153C
BOLT,6X30
92153-1895
$3.89
92154
BOLT,6X16
92154-0391
$1.94
92154A
BOLT,FLANGED,6X20
92154-0392
$3.02
92154B
BOLT
92154-1429
$4.18
92161
DAMPER
92161-0056
$3.44
92161A
DAMPER
92161-0509
$20.56
92161B
DAMPER
92161-1755
$4.69
92170
CLAMP,COOLING HOSE
92170-1033
$15.16
92210
NUT
92210-1323
$4.18
