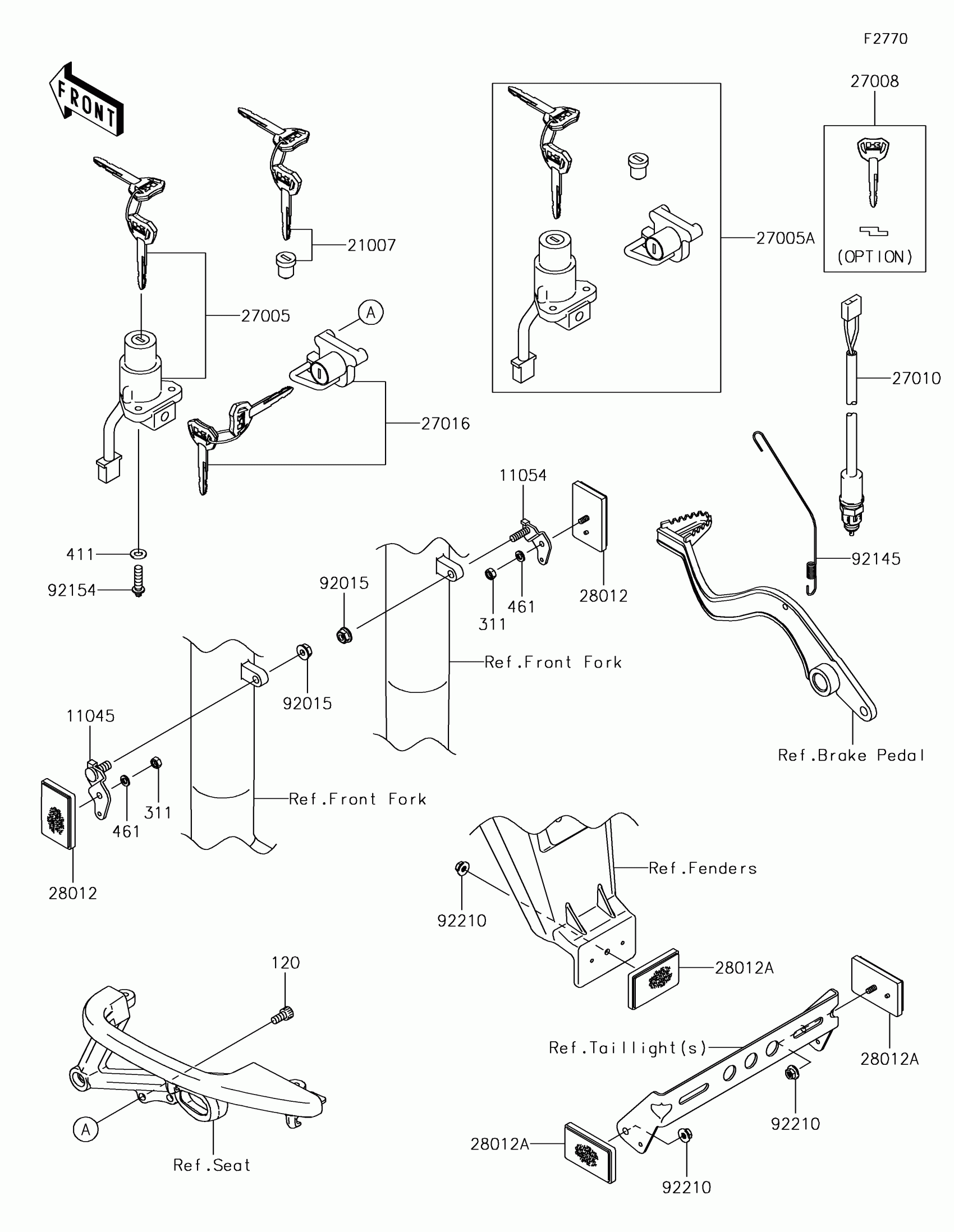

Kawasaki KLR™650 Ignition Switch(EJF/EJFA) Diagram

Description

Price

11045

BRACKET,REFLECTOR,FR

11045-1354

$7.68

11054

BRACKET,REFLECTOR,FR

11054-1889

$9.67

120

BOLT-SOCKET,6X12

120CB0612

$2.49

21007

ROTOR,LOCK,TANK CAP

21007-5074

$84.28

27005

SWITCH-ASSY-IGNITION

27005-0647

$156.77

27005A

SWITCH-ASSY-IGNITION

27005-5152

$178.60

27008

KEY-LOCK,BLANK

27008-0559

$21.59

27010

SWITCH,REAR BRAKE

27010-0119

$52.97

27016

LOCK-ASSY

27016-5385

$68.08

28012

REFLECTOR-REFLEX

28012-1003

$22.09

28012A

REFLECTOR-REFLEX

28012-1088

$22.46

311

NUT-HEX,5MM

311AB0500

$0.43

411

WASHER-PLAIN,6MM

411AA0600

$2.92

461

WASHER-SPRING,5MM

461DB0500

$1.50

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92145

SPRING

92145-0778

$6.20

92154

BOLT,TORX,6X22

92154-1858

$3.94

92210

NUT,FLANGED,5MM

92210-0007

$2.70
