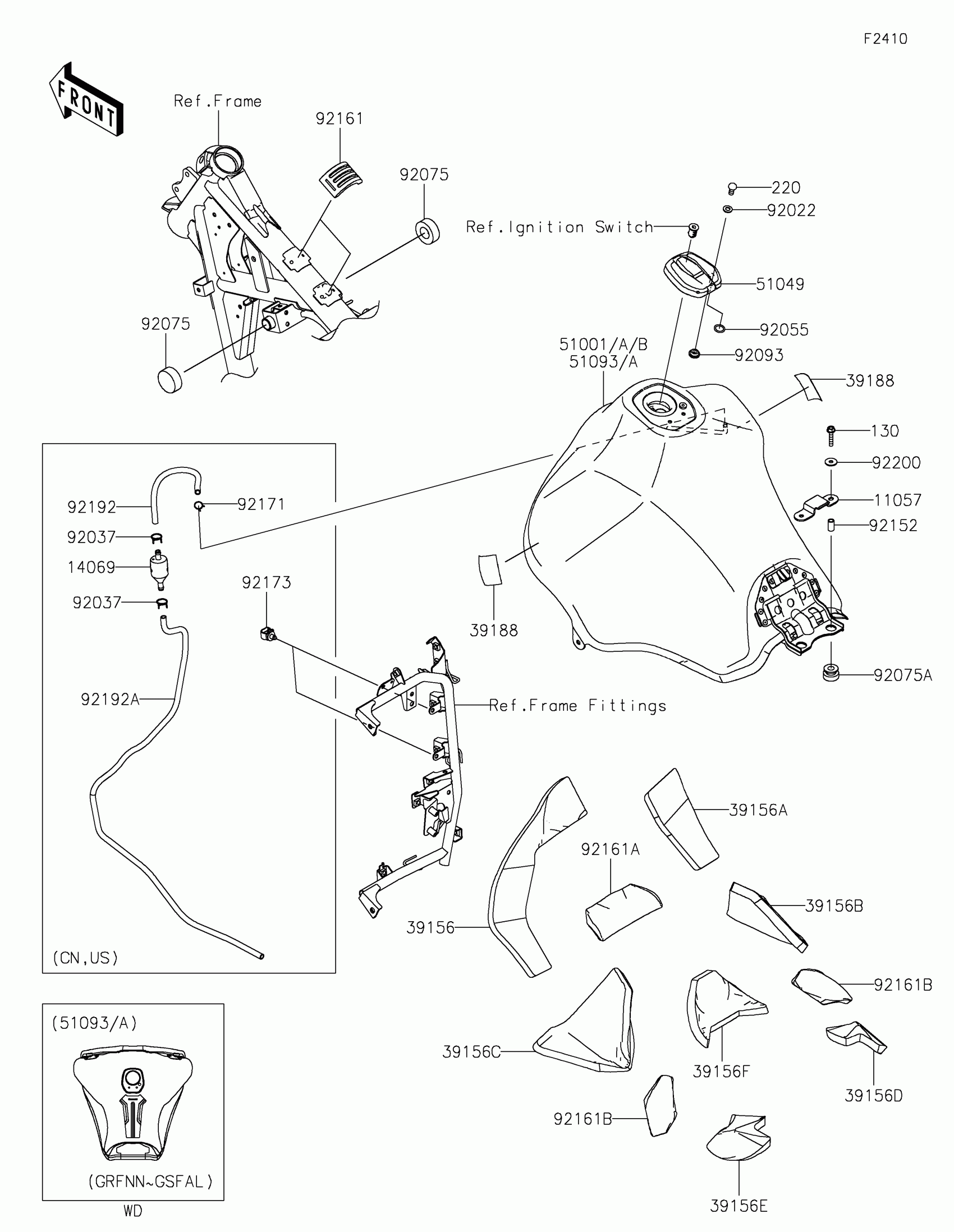

Kawasaki KLR™650 Fuel Tank Diagram

#

Description
Price

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$25.31

39156

PAD,FUEL TANK,FR,LH

39156-0254

$38.55

39156A

PAD,FUEL TANK,FR,RH

39156-0255

$38.55

39156B

PAD,FUEL TANK,RR,LH

39156-0256

$38.55

39156C

PAD,FUEL TANK,RR,RH

39156-0257

$38.55

43028

DIAPHRAGM

43028-1033

$22.90

43049

PACKING

43049-1103

$5.74

51023

TAP-ASSY,FUEL

51023-0003

$120.50

51039

RING,TAP FLANGED

51039-003

$6.27

51049

CAP-TANK,FUEL

51049-1134

Unavailable

130

BOLT-FLANGED,6X30

130BB0630

$4.43

220

SCREW-PAN-CROS,3X8

220AA0308

$0.59

220A

SCREW-PAN-CROS,5X10

220AA0510

$0.71

221

SCREW-CSK-CROS,4X14

221AA0414

$3.67

53044

TRIM,L=60

53044-1249

$6.57

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,6.8X10X20

92027-1856

$6.27

92055

RING-O,TAP LEVER

92055-1085

$5.05

92055B

RING-O

92055-1664

$5.00

92075

DAMPER,FUEL TANK

92075-101

$6.22

92075A

DAMPER

92075-1507

$10.28

92075B

DAMPER

92075-1660

$8.10

92075C

DAMPER,FUEL TANK

92075-1862

Unavailable

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

92153

BOLT,FLANGED,6X20

92153-0746

$2.14

92200

WASHER,6.5X11.5X0.8

92200-0117

$2.61

51001A

TANK-COMP-FUEL,C.P.RED

51001-0288-G2

$1,216.89

51001C

TANK-COMP-FUEL,EBONY

51001-0288-H8

$1,216.89

51001D

TANK-COMP-FUEL,C.T.BLUE

51001-0288-620

$1,216.89

51086

TANK-COMP-FUEL,C.P.RED

51086-5077-G2

$1,050.94

51086B

TANK-COMP-FUEL,EBONY

51086-5077-H8

$1,050.94

51086C

TANK-COMP-FUEL,C.T.BLUE

51086-5077-620

$1,050.94

702

TUBE-RUBBER,5X8X620

702A05620

$29.14

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
