Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

311

NUT-HEX,6MM

311BB0600

$1.04

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0077

$306.54

43020

PISTON-COMP-BRAKE

43020-1104

$52.21

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1074

$25.59

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43095

HOSE-BRAKE,FR

43095-0255

$127.92

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$21.91

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,ADJUST

92002-1893

$7.45

92002B

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,ADJUST

92015-1642

$3.92

92144

SPRING,RETURN

92144-1103

$9.43

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,LEVER SET

92153-0790

$19.22

92171

CLAMP,BRAKE HOSE

92171-0756

$18.75

92171A

CLAMP,BRAKE HOSE,LH

92171-0943

$10.39

92171B

CLAMP,BRAKE HOSE,RH

92171-1682

$13.73

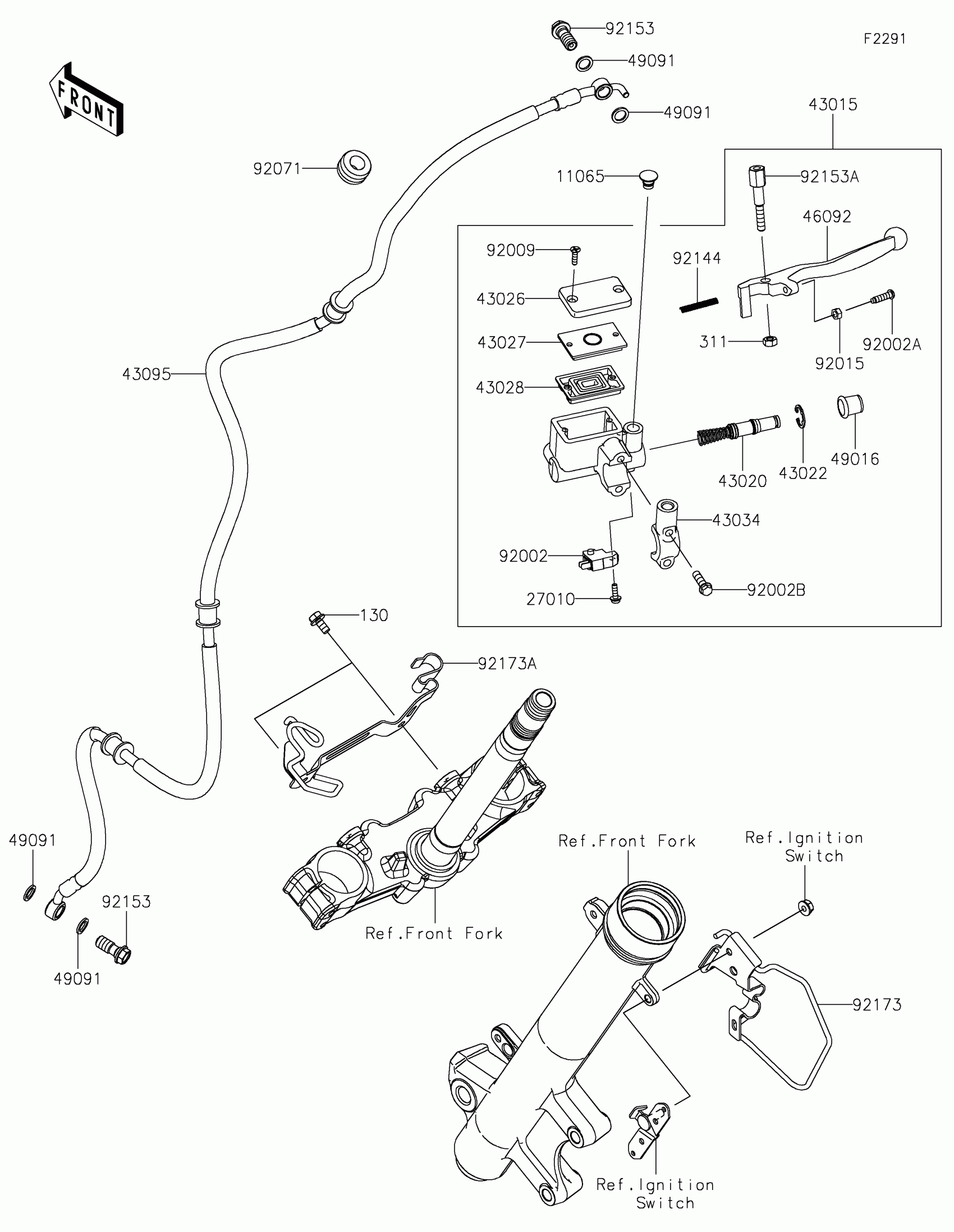

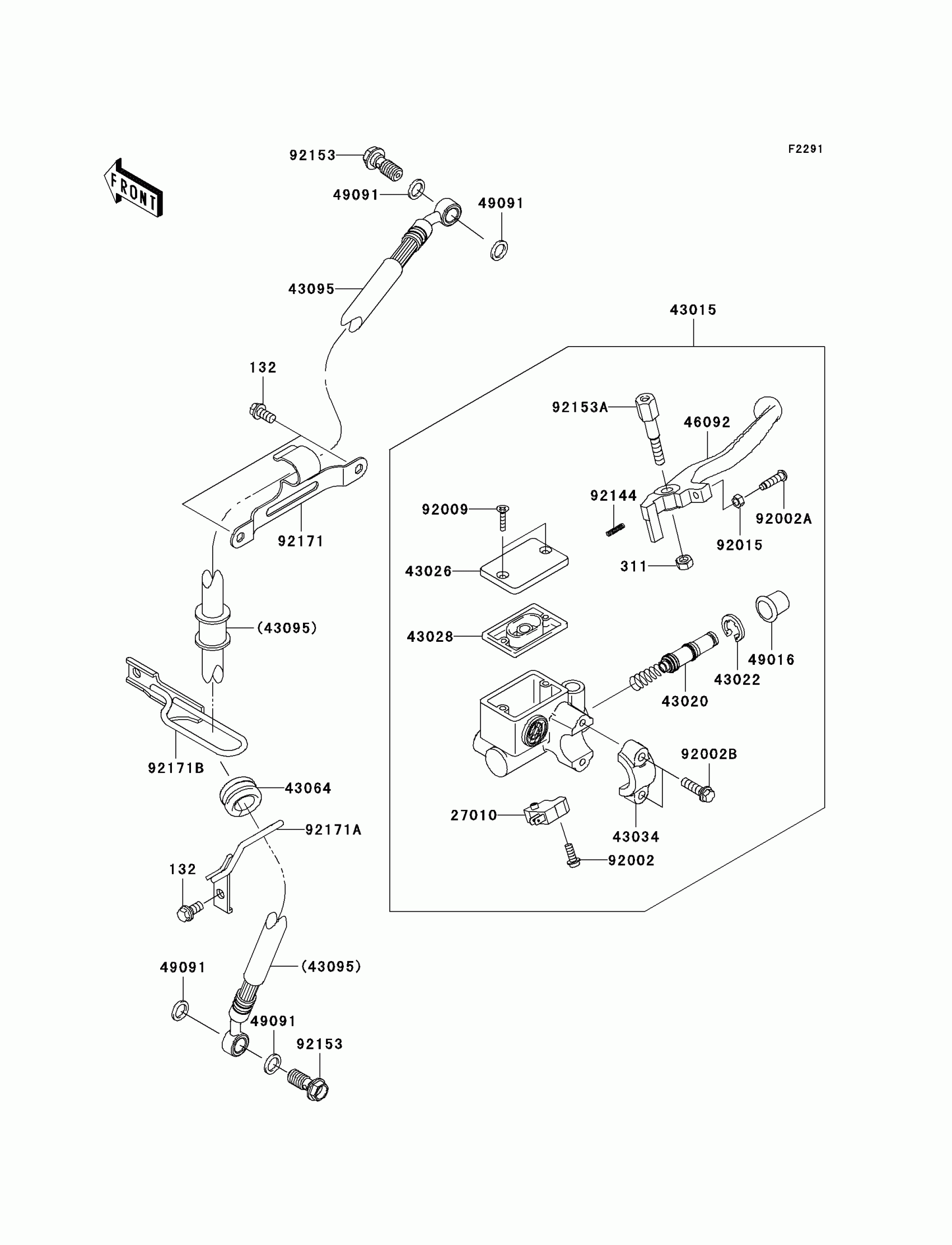

Kawasaki KLR™650 Front Master Cylinder Diagram
