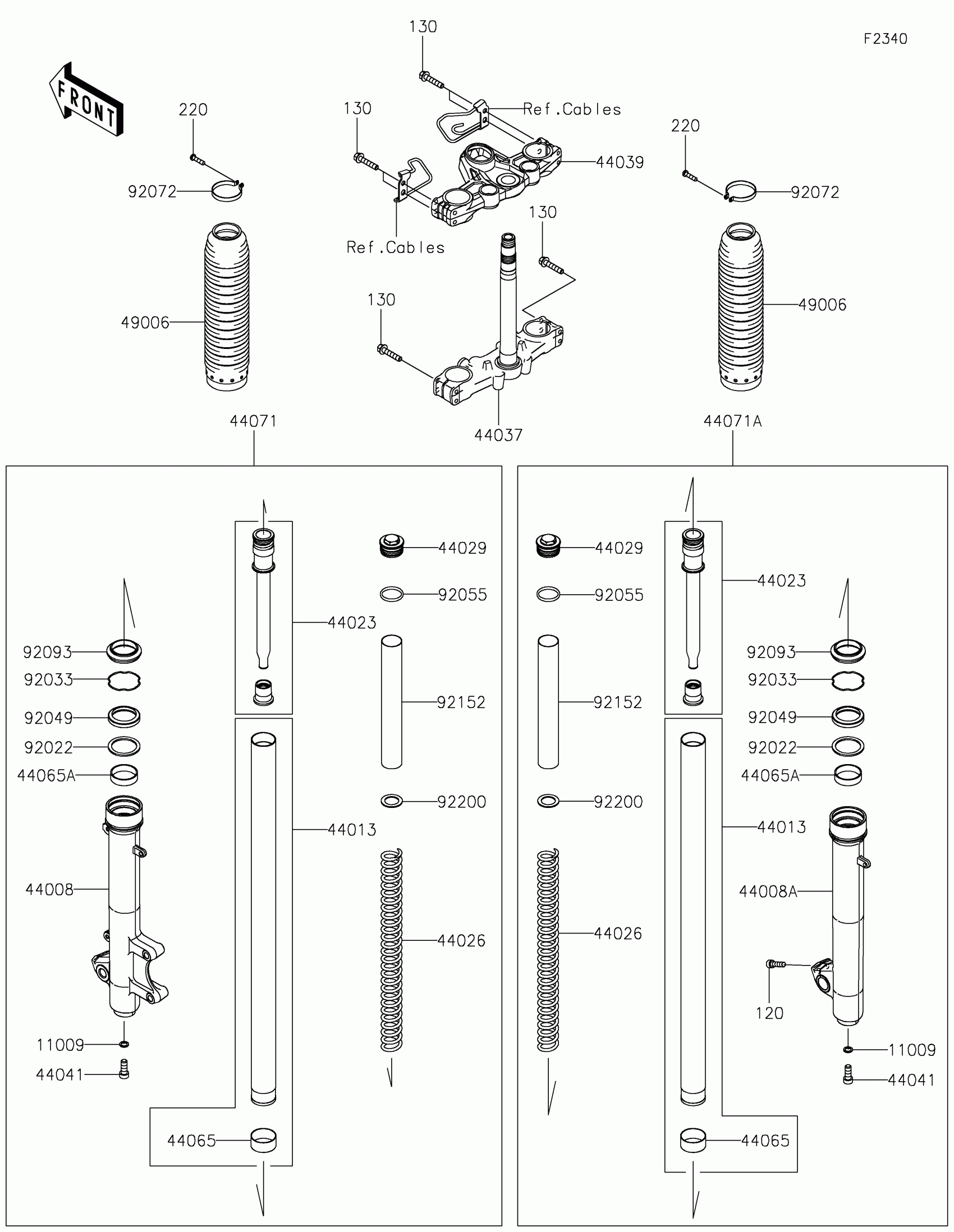

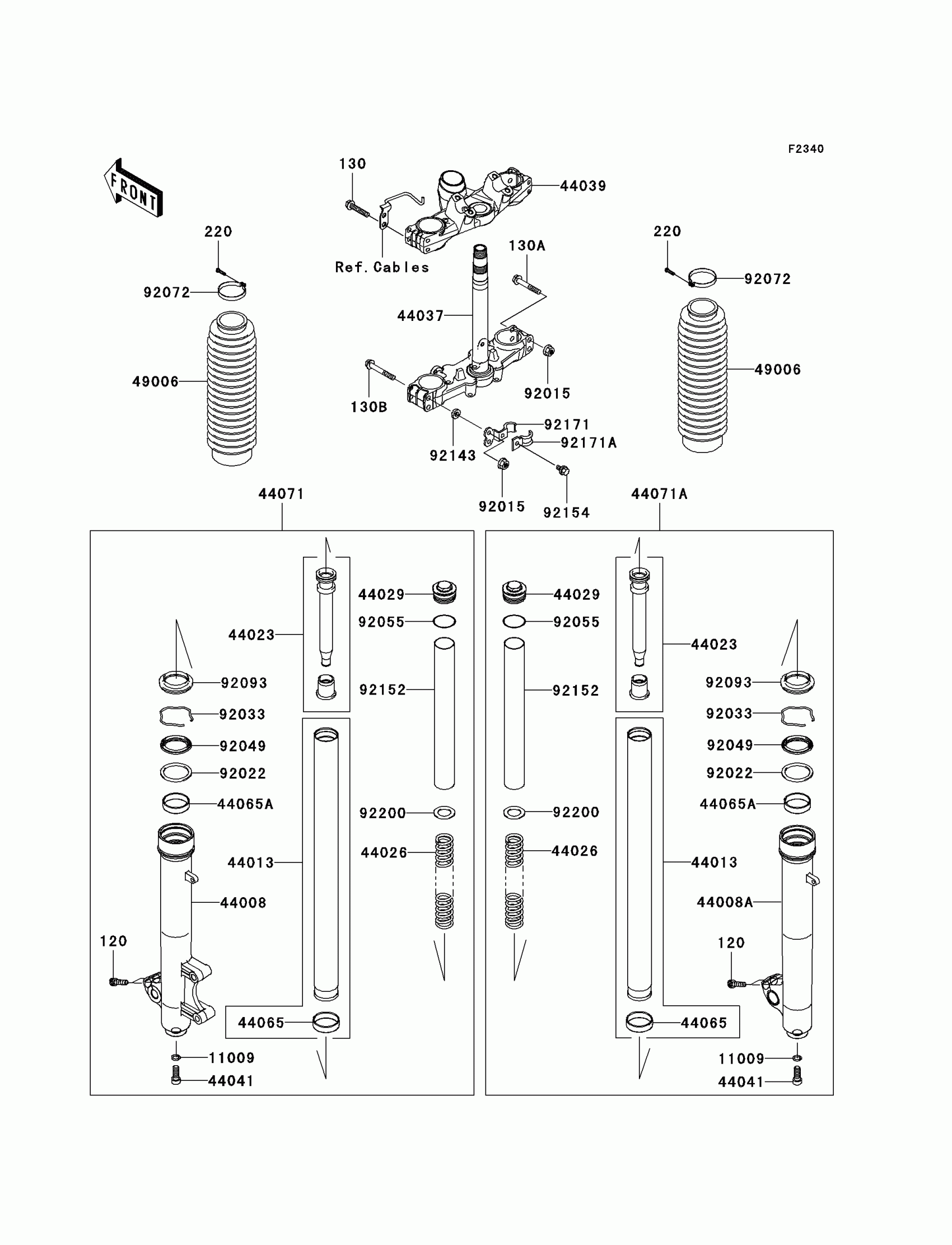

Kawasaki KLR™650 Front Fork Diagram

#

Description
Price

120

BOLT-SOCKET,8X30

120CA0830

$2.80

130

BOLT-FLANGED,8X40

130BA0840

$1.98

130A

BOLT-FLANGED,8X50

130BA0850

$2.25

130B

BOLT-FLANGED,8X55

130BA0855

$2.25

220

SCREW-PAN-CROS,4X16

220C0416

$1.69

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44008

PIPE-FORK OUTER,LH,P.SILVER

44008-0021-458

$505.87

44008A

PIPE-FORK OUTER,RH,P.SILVER

44008-0023-458

$505.87

44013

PIPE-FORK INNER

44013-0107

$352.37

44023

CYLINDER-SET-FORK

44023-0060

$190.00

44026

SPRING-FRONT FORK

44026-0112

$74.72

44029

SEAT-FORK SPRING

44029-0005

$44.62

44037

HOLDER-FORK UNDER,P.SILVER

44037-0054-458

$653.55

44039

HOLDER-FORK UPPER,P.SILVER

44039-0047-458

$337.84

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$29.57

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$28.71

44071

DAMPER-ASSY,FORK,LH,P.SILVER

44071-0343-458

$822.16

44071A

DAMPER-ASSY,FORK,RH,P.SILVER

44071-0344-458

$822.16

49006

BOOT,FORK,BLACK

49006-1266-BD

$64.44

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

$19.34

92055

RING-O

92055-1321

$1.35

92072

BAND,BOOT

92072-1077

$9.98

92093

SEAL,DUST

92093-0036

$20.49

92143

COLLAR

92143-1770

$9.62

92152

COLLAR

92152-0603

$17.13

92154

BOLT,FLANGED,6X10

92154-0111

$2.58

92171

CLAMP

92171-1744

$21.92

92171A

CLAMP

92171-1745

$11.12

92200

WASHER

92200-1467

$9.91
