Description

Price

41080

DISC,FR,BLACK

41080-0728-11H

$239.58

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0006

$156.79

43045

SHAFT-CALIPER

43045-0013

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0231-DJ

$383.94

43082

PAD-ASSY-BRAKE

43082-0060

$68.09

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,8X15

92150-1852

$4.69

92153

BOLT,FLANGED,10X41

92153-0587

$5.48

92161

DAMPER

92161-2430

$54.05

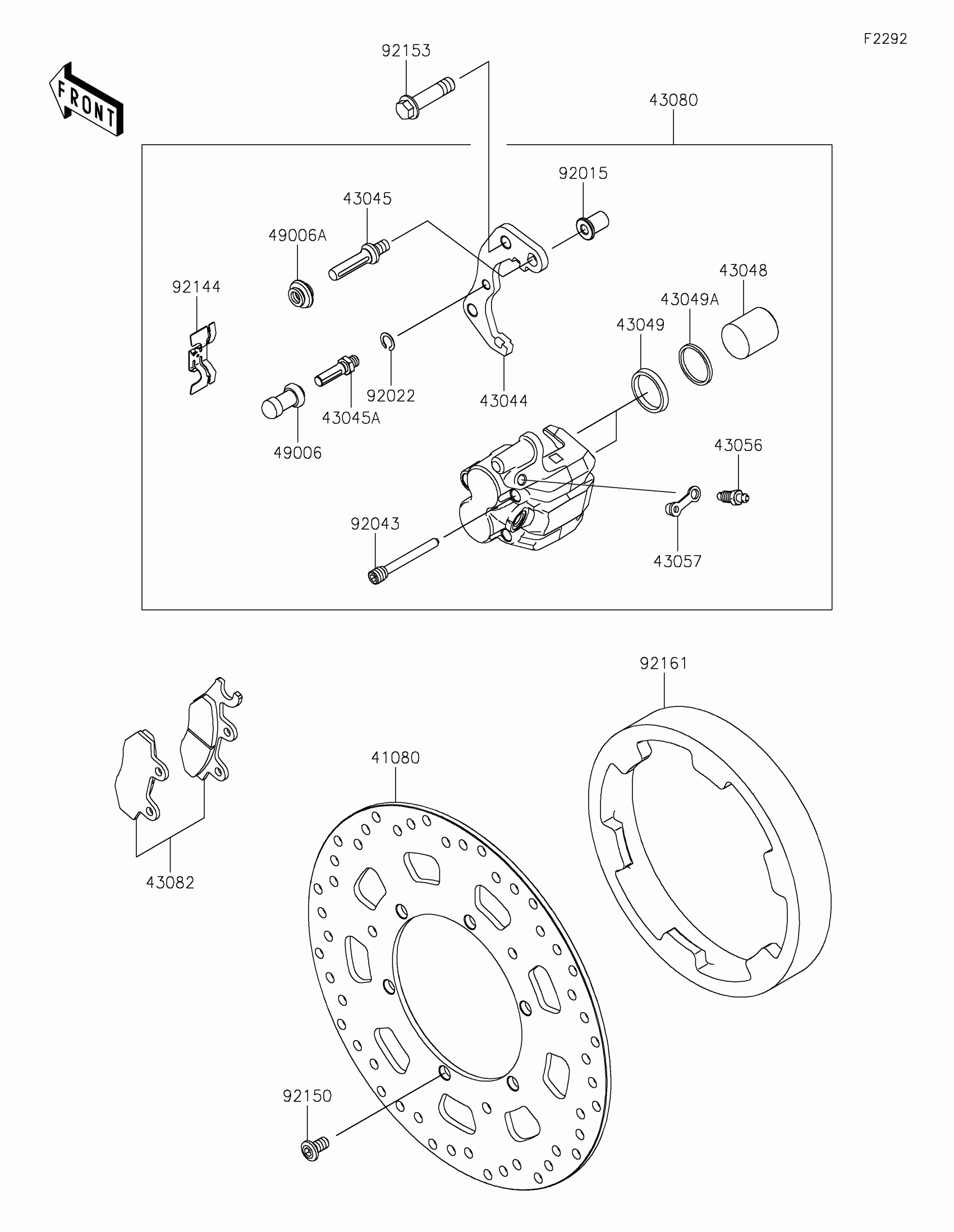

Kawasaki KLR®650 Front Brake Diagram

DISC,FR,BLACK

HOLDER-COMP-CALIPER,FR,LH

SHAFT-CALIPER

SHAFT-CALIPER

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

NUT

WASHER,WAVE

PIN,HANGER

SPRING,PAD

BOLT,8X15

BOLT,FLANGED,10X41

DAMPER
