Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X14

130BB0614

$2.49

186

BOLT-UPSET-WP,6X20

186AA0620

$2.32

11054

BRACKET,ELECTRIC

11054-0400

$42.00

11054B

BRACKET

11054-1793

$25.20

11055

BRACKET,STARTER RELAY

11055-0291

$39.22

14024

COVER,FRONT RESERVOIR

14024-1372

$68.94

14024A

COVER,RESERVOIR TANK

14024-1470

$13.57

14024B

COVER,RESERVOIR TANK

14024-1531

$10.53

14091

COVER,STARTER RELAY

14091-0591

$26.41

32098

CASE-TOOL,F.BLACK

32098-0014-6Z

$47.83

35063

STAY,HORN&RESERVE

35063-0312

$89.22

35063A

STAY,F.S.BLACK

35063-0443-18R

$65.69

55020

GUARD,CHAIN

55020-1266

$41.66

92002

BOLT,SOCKET,8X23.5

92002-1598

$6.27

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,6MM

92015-1602

$7.34

92015B

NUT,RUBBER,6MM

92015-1692

$7.34

92028

BUSHING

92028-1259

$15.74

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,TOOL CASE

92072-1219

$21.99

92075

DAMPER

92075-1941

$6.52

92161

DAMPER

92161-0510

$6.81

92171

CLAMP,HARNESS

92171-1869

$10.89

92172

SCREW,6X14

92172-0004

$2.80

92200

WASHER,13X23X2

92200-0389

$2.17

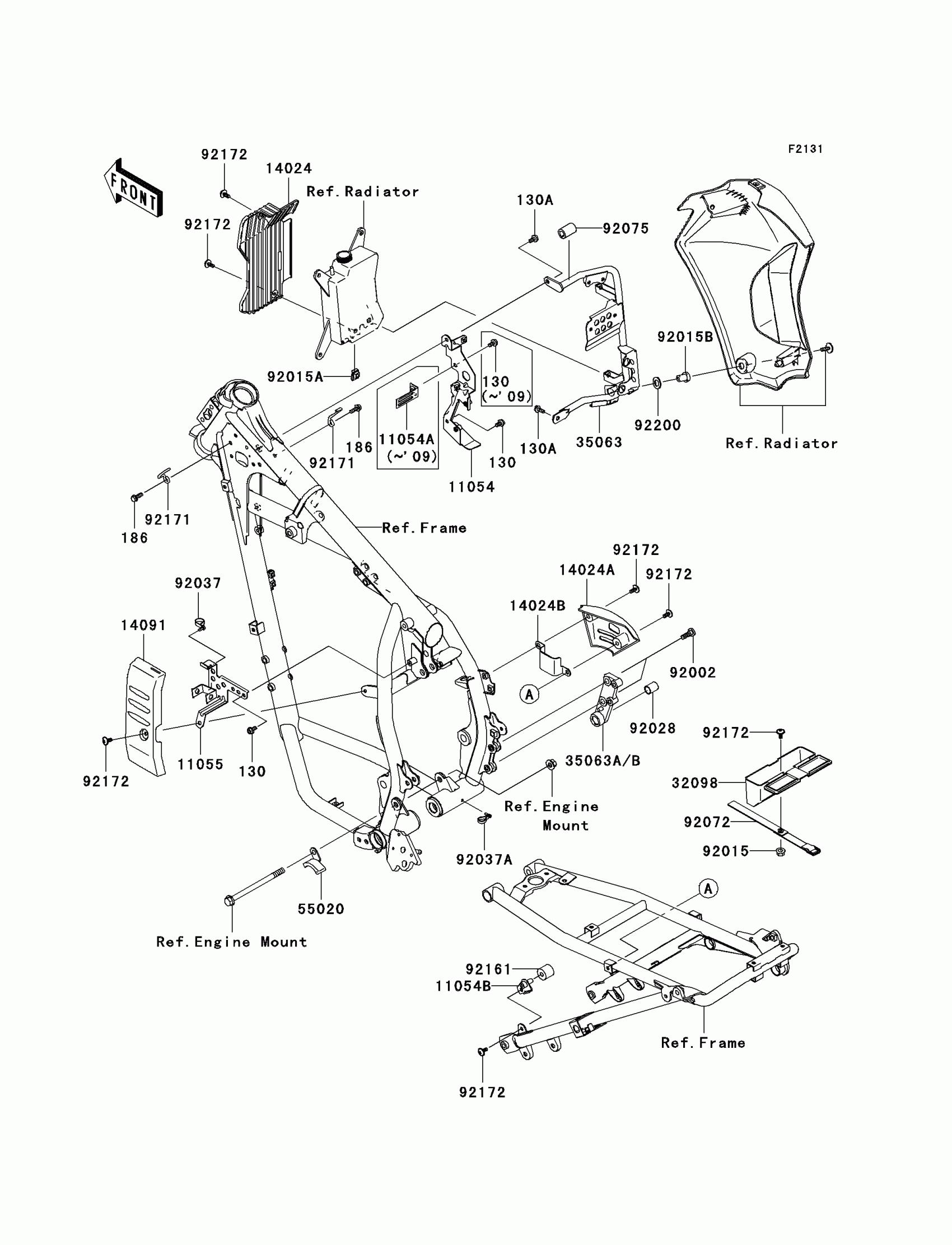

Kawasaki KLR™650 Frame Fittings Diagram

BOLT-FLANGED,6X10

BOLT-FLANGED,6X14

BOLT-UPSET-WP,6X20

BRACKET,ELECTRIC

BRACKET

BRACKET,STARTER RELAY

COVER,FRONT RESERVOIR

COVER,RESERVOIR TANK

COVER,RESERVOIR TANK

COVER,STARTER RELAY

CASE-TOOL,F.BLACK

STAY,HORN&RESERVE

STAY,F.S.BLACK

GUARD,CHAIN

BOLT,SOCKET,8X23.5

NUT,FLANGED,6MM,BLACK

NUT,6MM

NUT,RUBBER,6MM

BUSHING

CLAMP,SPEED,L=58

CLAMP,SPEED,L=80.5

BAND,TOOL CASE

DAMPER

DAMPER

CLAMP,HARNESS

SCREW,6X14

WASHER,13X23X2
