Description

Price

130

BOLT-FLANGED,8X20

130CA0820

$1.71

482

CIRCLIP-TYPE-E

482EA7000

$3.92

550

PIN-COTTER,2.0X15

550AA2015

$1.12

34003

HOLDER-STEP,RR,RH,F.S.BLACK

34003-0054-18R

$100.53

34003B

HOLDER-STEP,RR,LH,F.S.BLACK

34003-1275-18R

$100.53

34003D

HOLDER-STEP,FR,LH,F.S.BLACK

34003-1431-18R

$107.29

34003F

HOLDER-STEP,FR,RH,F.S.BLACK

34003-1432-18R

$107.29

34028

STEP,RR,LH

34028-0066

$39.15

34028A

STEP,RR,RH

34028-0067

$39.15

34028B

STEP,FR,LH

34028-0068

$39.15

34028C

STEP,FR,RH

34028-0069

$39.15

92002

BOLT,SOCKET,8X23.5

92002-1598

$6.27

92002A

BOLT,BANK SENSOR

92002-1995

$14.23

92022

WASHER,STEP FITTING

92022-1314

$5.24

92022A

WASHER,6.5X13X2.0

92022-1523

$0.92

92022B

WASHER,STEP FITTING

92022-1797

$5.24

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,6X28

92043-1464

$8.10

92153

BOLT,SOCKET,8X20

92153-1621

$2.15

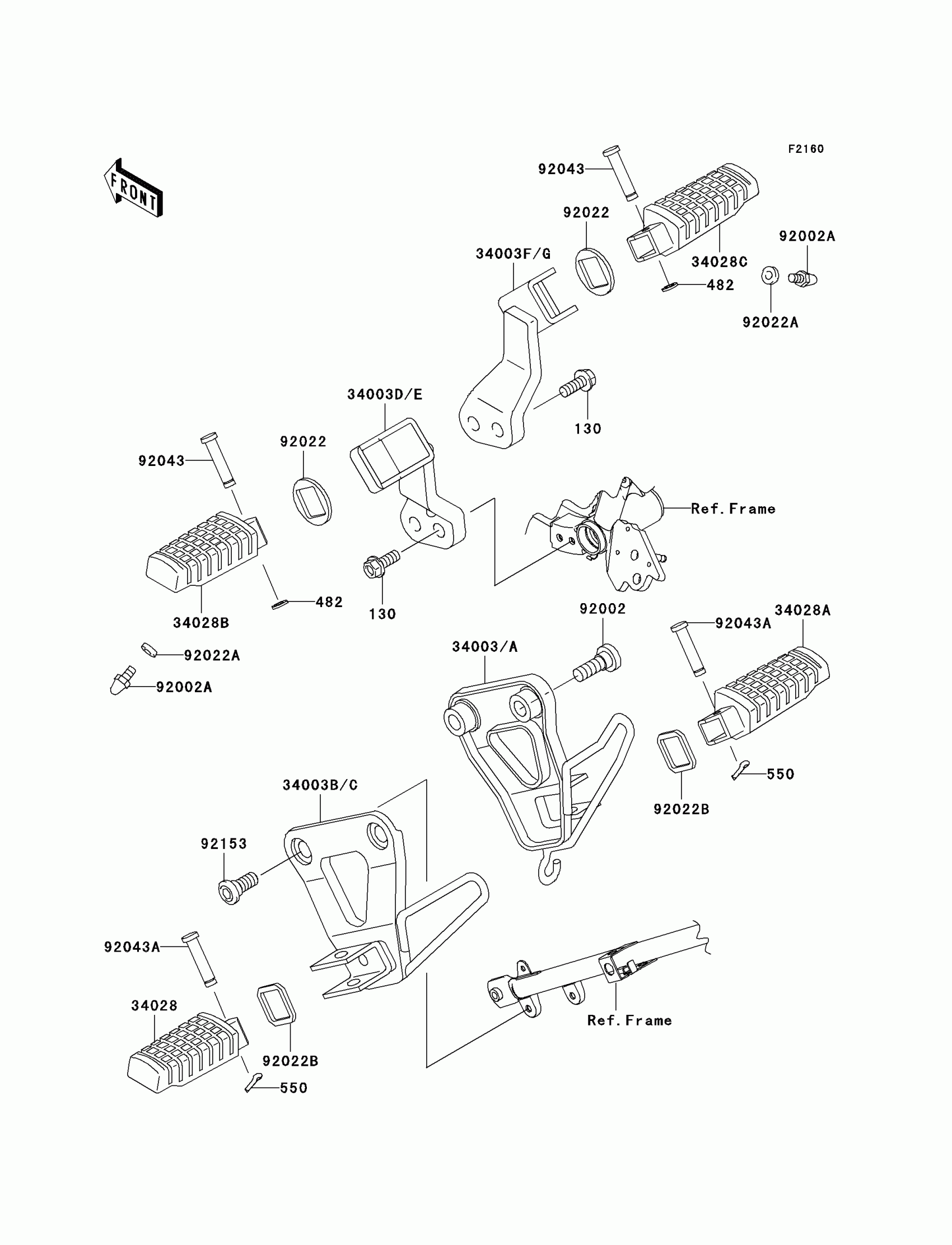

Kawasaki KLR™650 Footrests Diagram

BOLT-FLANGED,8X20

CIRCLIP-TYPE-E

PIN-COTTER,2.0X15

HOLDER-STEP,RR,RH,F.S.BLACK

HOLDER-STEP,RR,LH,F.S.BLACK

HOLDER-STEP,FR,LH,F.S.BLACK

HOLDER-STEP,FR,RH,F.S.BLACK

STEP,RR,LH

STEP,RR,RH

STEP,FR,LH

STEP,FR,RH

BOLT,SOCKET,8X23.5

BOLT,BANK SENSOR

WASHER,STEP FITTING

WASHER,6.5X13X2.0

WASHER,STEP FITTING

PIN,8X36.5

PIN,6X28

BOLT,SOCKET,8X20
