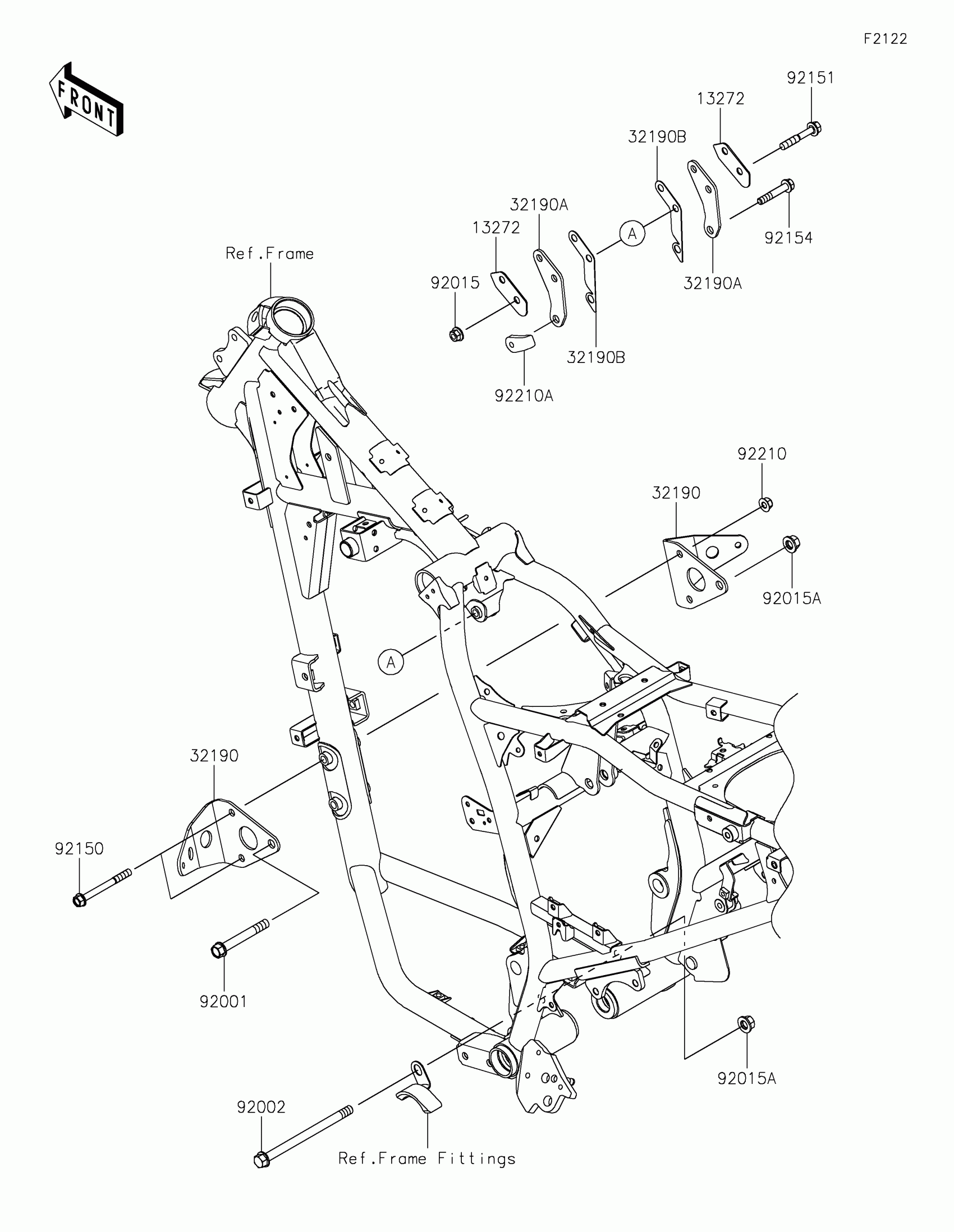

Kawasaki KLR®650 Engine Mount Diagram

Description

Price

13272

PLATE

13272-3910

$4.36

32190

BRACKET-ENGINE,LWR

32190-0858

$23.98

32190A

BRACKET-ENGINE,UPP

32190-0859

$22.55

32190B

BRACKET-ENGINE

32190-0860

$13.34

92001

BOLT,10X75

92001-4021

$8.86

92002

BOLT,10X145

92002-1348

$18.57

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92015A

NUT,FLANGED,10MM

92015-1415

$4.69

92150

BOLT,8X80

92150-1162

$6.61

92151

BOLT,8X50

92151-1463

$5.33

92154

BOLT,FLANGED,8X45

92154-3733

$2.95

92210

NUT,FLANGED,LOCK,8MM

92210-0159

$11.95

92210A

NUT,PLATE,8MM

92210-0608

$5.05
