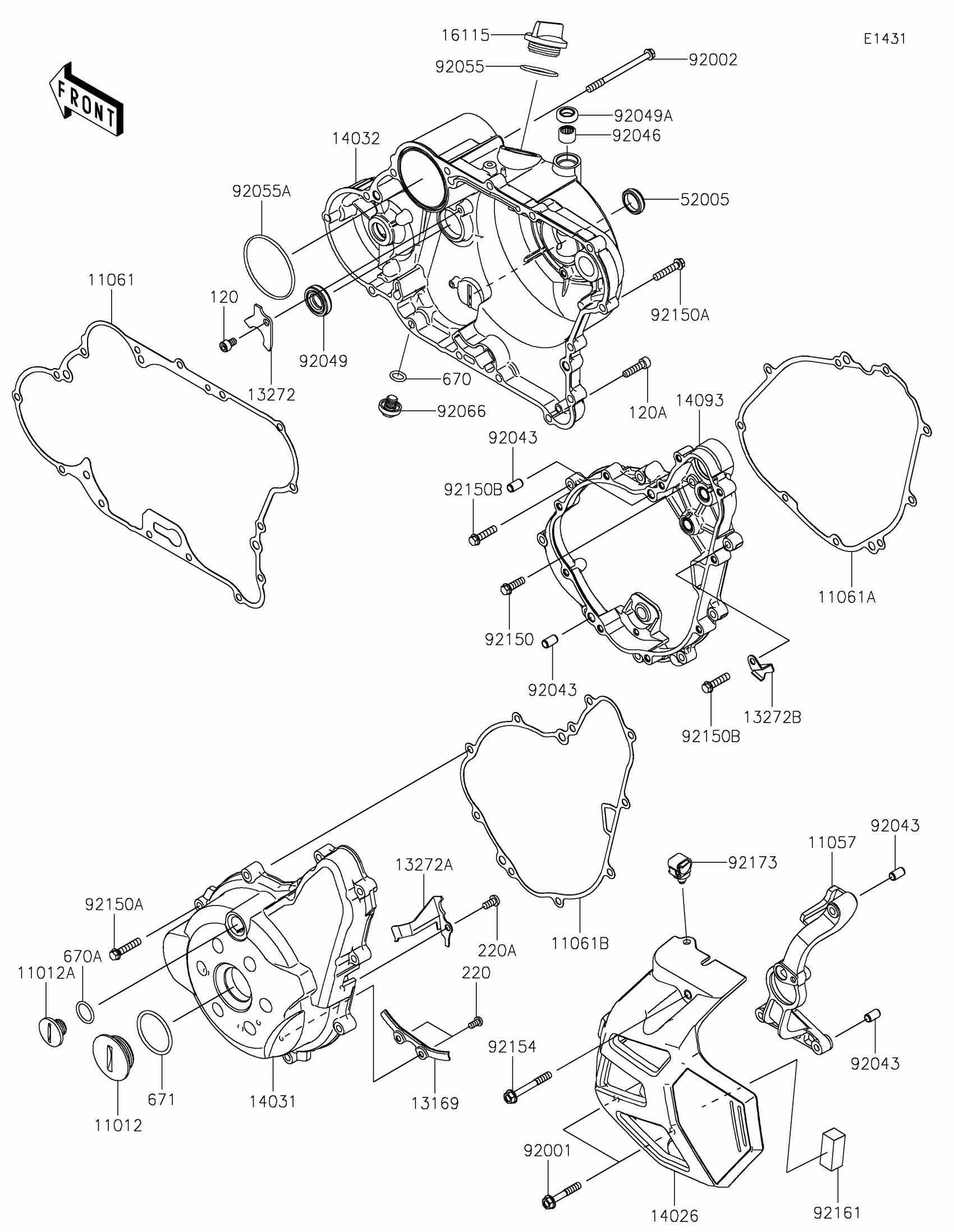

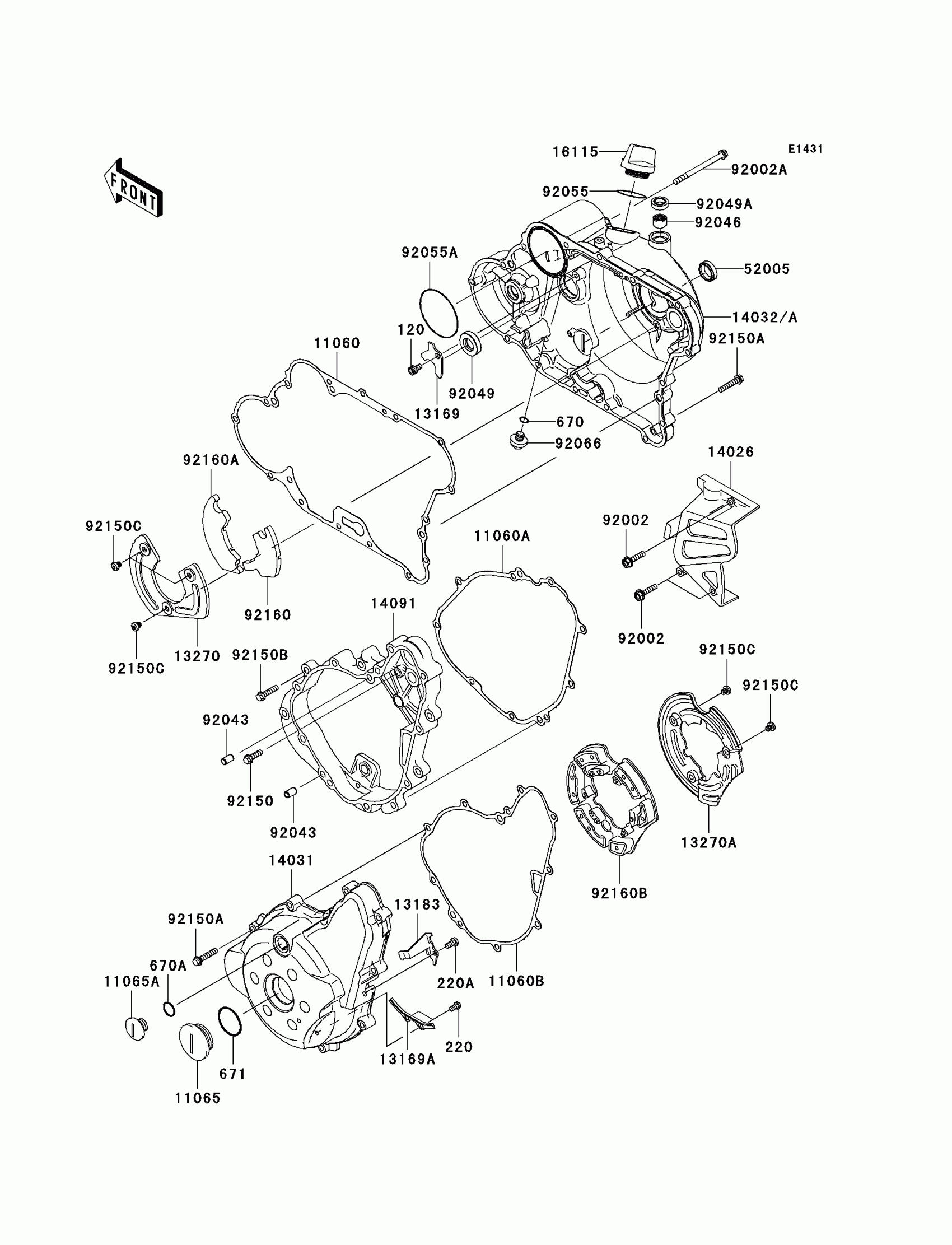

Kawasaki KLR™650 Engine Cover(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120CA0610

$1.71

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

220A

SCREW-PAN-CROS,6X12

220AA0612

$1.19

670

O RING,11MM

670B2011

$1.28

670A

O RING,18MM

670B2018

$1.42

671

O RING,40MM

671B2540

$6.22

11060

GASKET,CLUTCH COVER

11060-1111

$36.66

11060A

GASKET,GENERATOR CASE COVER

11060-1692

$26.99

11060B

GASKET,GENERATOR COVER

11060-1693

$26.99

11065

CAP

11065-0227

$11.42

11065A

CAP,TOP MARK

11065-0228

$9.02

13169

PLATE,OIL SEAL

13169-1735

$7.62

13169A

PLATE,PULSING COIL LEAD

13169-1882

$8.86

13183

PLATE,GENERATOR

13183-1144

$9.45

13270

PLATE

13270-1438

$15.18

13270A

PLATE

13270-1667

$19.60

14026

COVER-CHAIN

14026-0044

$83.39

14031

COVER-GENERATOR

14031-0117

$342.12

14032A

COVER-CLUTCH

14032-0145

$438.36

14091

COVER,GENERATOR CASE

14091-0662

$305.23

16115

CAP-OIL FILLER

16115-1068

$5.74

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92002A

BOLT,FLANGED,6X80

92002-1568

Unavailable

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,SCY 15X30X7

92049-1158

$25.27

92049A

SEAL-OIL

92049-1560

$9.28

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,62.6X66X3.1

92055-1221

$8.86

92066

PLUG,DRAIN

92066-1156

$9.20

92150

BOLT,6X20

92150-1010

Unavailable

92150A

BOLT,6X30

92150-1021

Unavailable

92150B

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92150C

BOLT,6X7

92150-1902

$2.81

92160

DAMPER

92160-1608

$12.11

92160A

DAMPER

92160-1609

$12.11

92160B

DAMPER

92160-1763

$36.07
