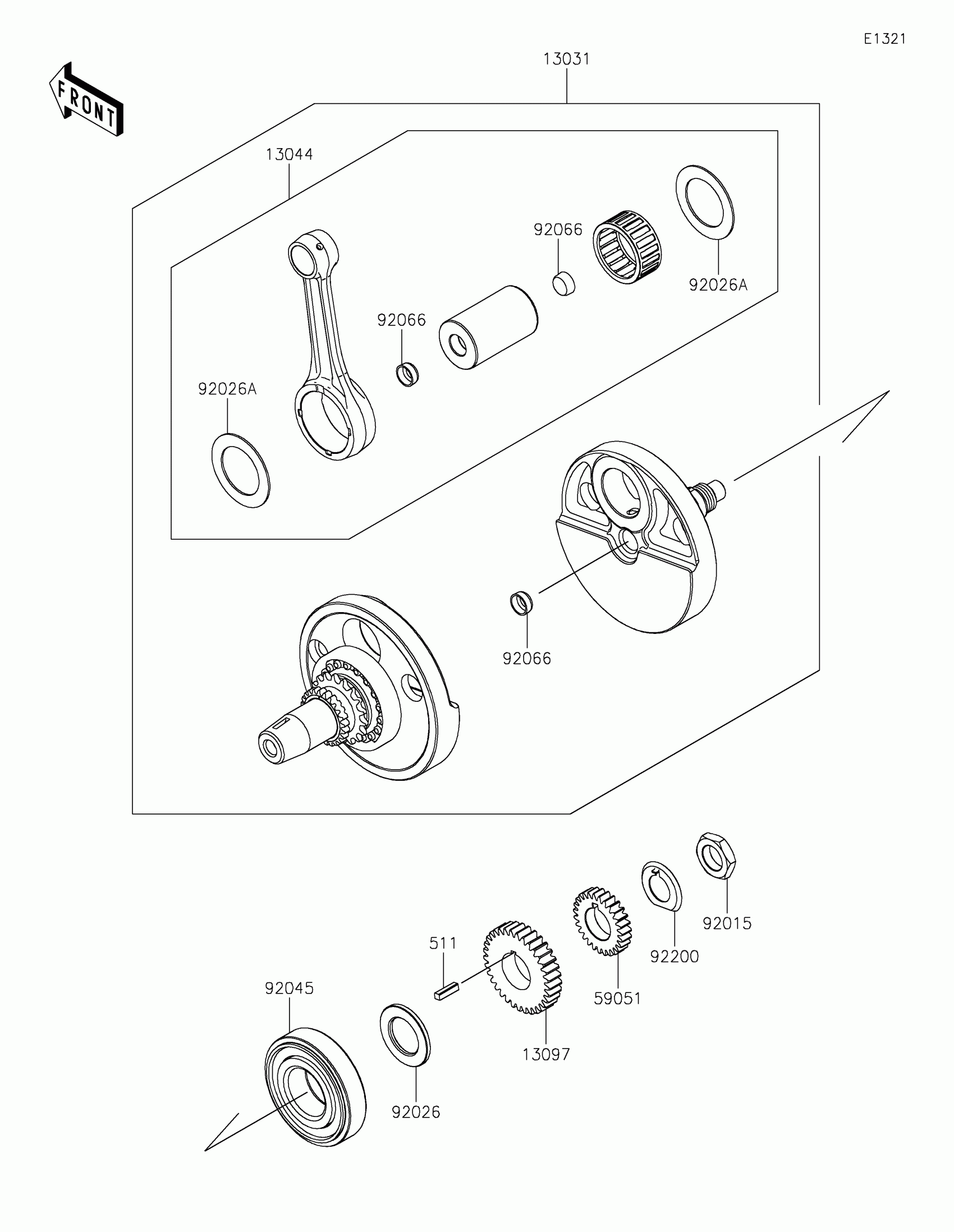

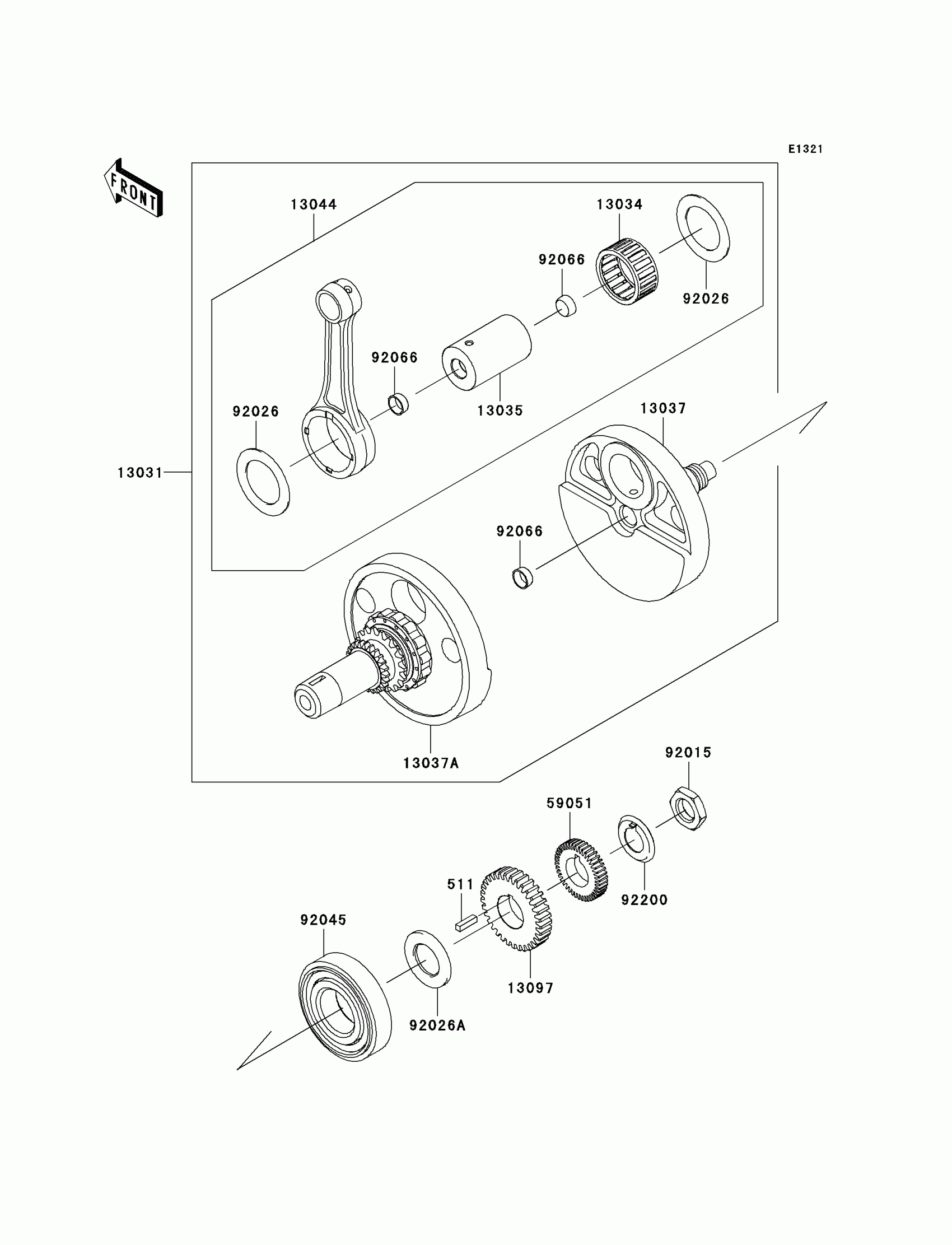

Kawasaki KLR™650 Crankshaft Diagram

Description

Price

511

KEY-SUNK

511A0520

$2.70

13031

CRANKSHAFT-COMP

13031-0093

$1,125.81

13034

BEARING-BIG END

13034-1084

$80.35

13035

PIN-CRANK

13035-1066

$81.44

13037

CRANKSHAFT,RH

13037-0119

$623.72

13037A

CRANKSHAFT,LH

13037-5096

$691.39

13044

SET-CONNECTING ROD

13044-5073

$319.68

13097

GEAR-PRIMARY SPUR,33T

13097-1333

$70.83

59051

GEAR-SPUR,27T

59051-1145

$56.36

92015

NUT,22MM

92015-1890

$14.23

92026

SPACER,40X60X1.5

92026-1279

$19.27

92026A

SPACER,30X50X4

92026-1280

$20.51

92045

BEARING-BALL,40X90X23

92045-0065

$110.25

92066

PLUG

92066-1154

$4.65

92200

WASHER,CLAW

92200-1157

$6.16
