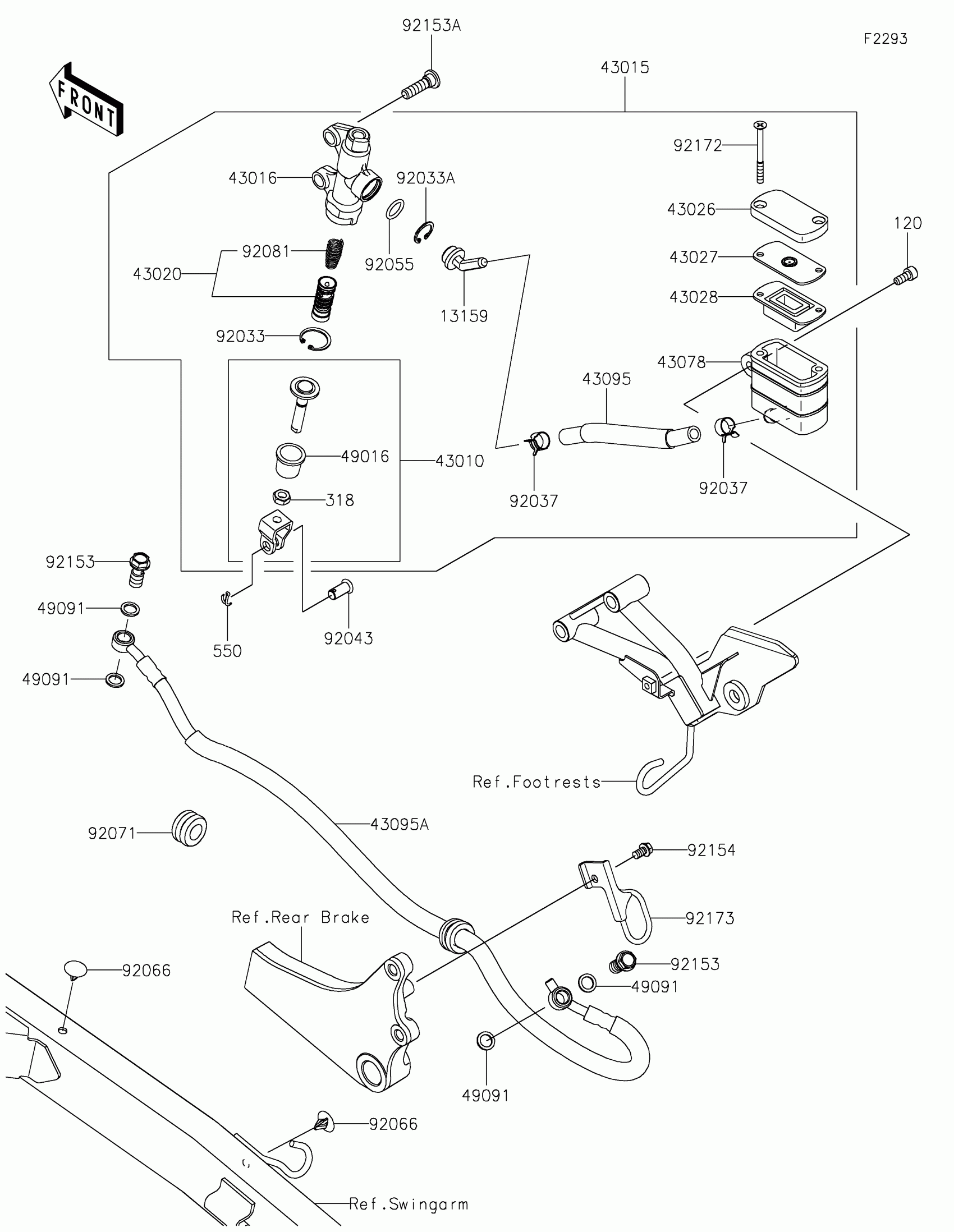

Kawasaki KLR®650 Adventure Rear Master Cylinder Diagram

#

Description
Price

11057

BRACKET,BRAKE HOSE

11057-4377

$2.80

11057A

BRACKET,RR MASTER CYLINDER

11057-4396

$6.77

13159

CONNECTOR

13159-1065

$7.26

21176

SENSOR,SPEED,RR

21176-0995

$259.40

43010

ROD-ASSY-BRAKE

43010-0031

$65.92

43015

CYLINDER-ASSY-MASTER,RR

43015-0777

$409.35

43016

CYLINDER-MASTER,RR

43016-1208

$153.65

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR M/C-ABS UNIT

43095-1758

$146.41

43095A

HOSE-BRAKE

43095-1762

$22.62

43095B

HOSE-BRAKE,ABS UNIT-RR CALIPER

43095-1860

$257.27

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$13.37

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,6.5X16X2

92022-1565

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP

92037-1710

$9.91

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92071

GROMMET,12.2X26X16

92071-0785

$2.15

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92151

BOLT

92151-1166

$2.26

92152

COLLAR

92152-2770

$3.86

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,6X18

92153-0816

$2.15

92153B

BOLT,SOCKET,8X30

92153-1624

$3.90

92154

BOLT

92154-0929

$3.71

92154A

BOLT,FLANGED,6X10

92154-0950

$2.67

92161

DAMPER,10X18X6.5

92161-2091

$2.44

92161A

DAMPER

92161-2387

$2.80

92171

CLAMP

92171-0640

$3.90

92171A

CLAMP

92171-0817

$4.65

92171B

CLAMP

92171-0818

$4.41

92171C

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-2454

$11.16

120

BOLT-SOCKET,6X25

120CB0625

$2.62

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

550

PIN-COTTER,2.0X15

550AA2015

$1.12
