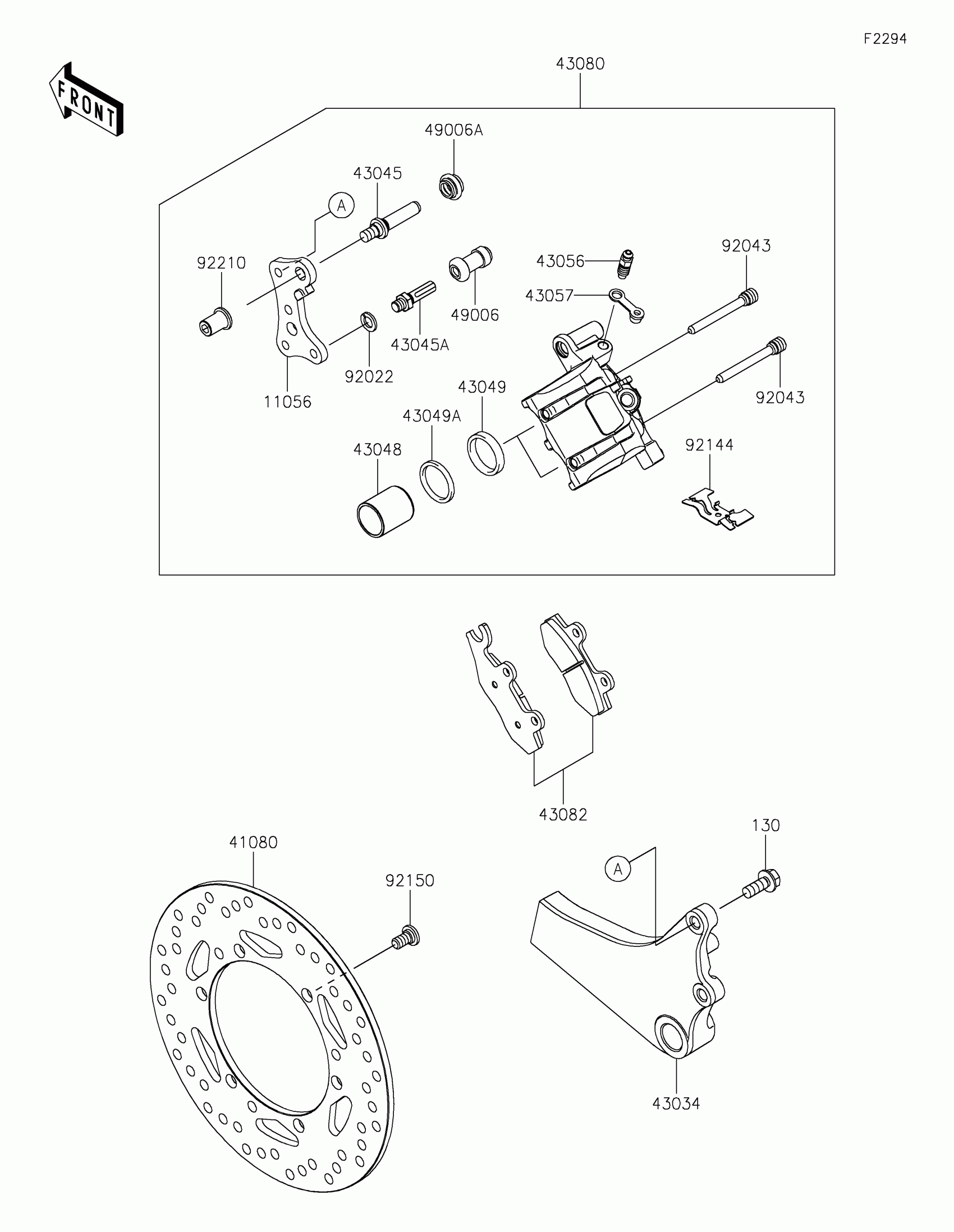

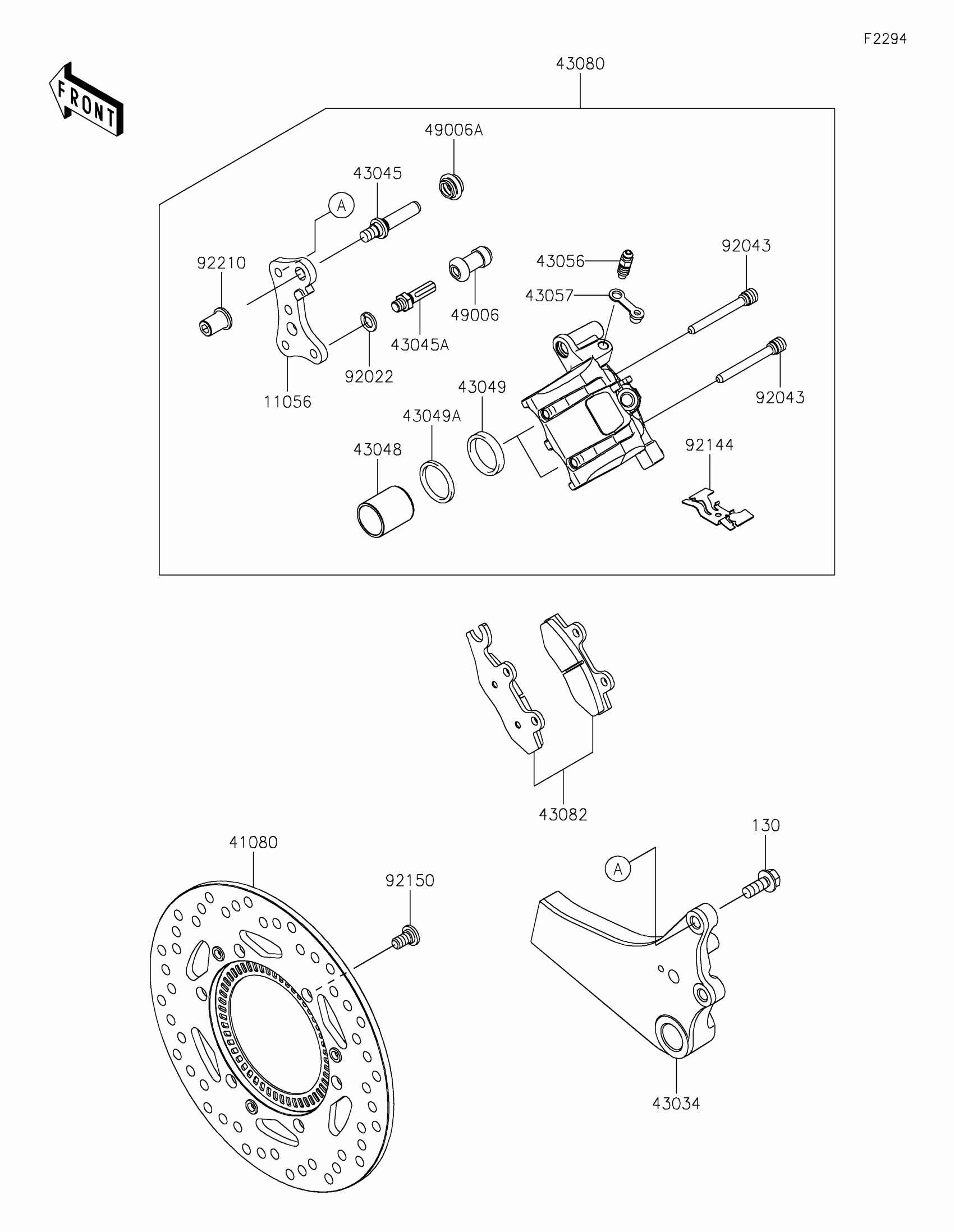

Kawasaki KLR®650 Adventure Rear Brake Diagram

Description

Price

11056

BRACKET,CALIPER

11056-0202

$121.79

41080

DISC,RR,ABS,BLACK

41080-0731-11H

$197.50

43034

HOLDER-BRAKE

43034-0164

$139.40

43045

SHAFT-CALIPER

43045-0013

$19.49

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1068

$83.43

43049

PACKING,PISTON SEAL

43049-1060

$14.67

43049A

PACKING,PISTON SEAL

43049-1061

$8.04

43056

BREATHER-BRAKE

43056-0004

$12.83

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0232-DJ

$409.71

43082

PAD-ASSY-BRAKE

43082-0080

$60.98

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92150

BOLT,DISC PLATE,8X15

92150-1811

$3.81

92210

NUT

92210-0615

$5.46

130

BOLT-FLANGED,8X20

130BA0820

$3.04
