2023 Kawasaki KLR®650 Adventure Front Brake Diagram

← All diagrams

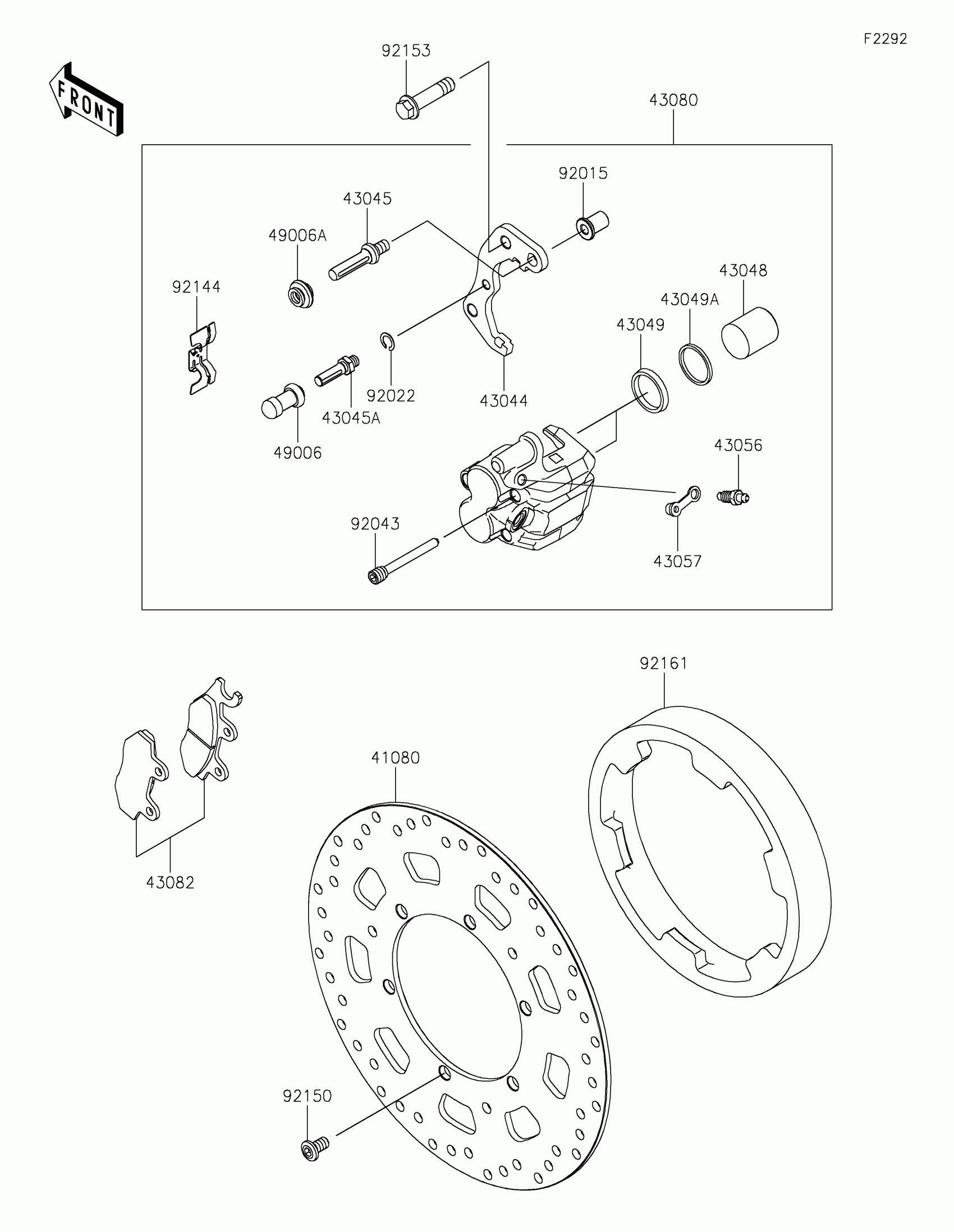

Find the part on the Front Brake diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,BLACK

41080-0728-11H

1
Out of stock

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0006

1
Out of stock

43045

SHAFT-CALIPER

43045-0013

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0231-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0060

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92015

NUT

92015-1740

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1416

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92150

BOLT,8X15

92150-1852

1
Out of stock

92153

BOLT,FLANGED,10X41

92153-0587

1
Out of stock

92161

DAMPER

92161-2430

1
Out of stock
