2022 Kawasaki KLR®650 Adventure Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

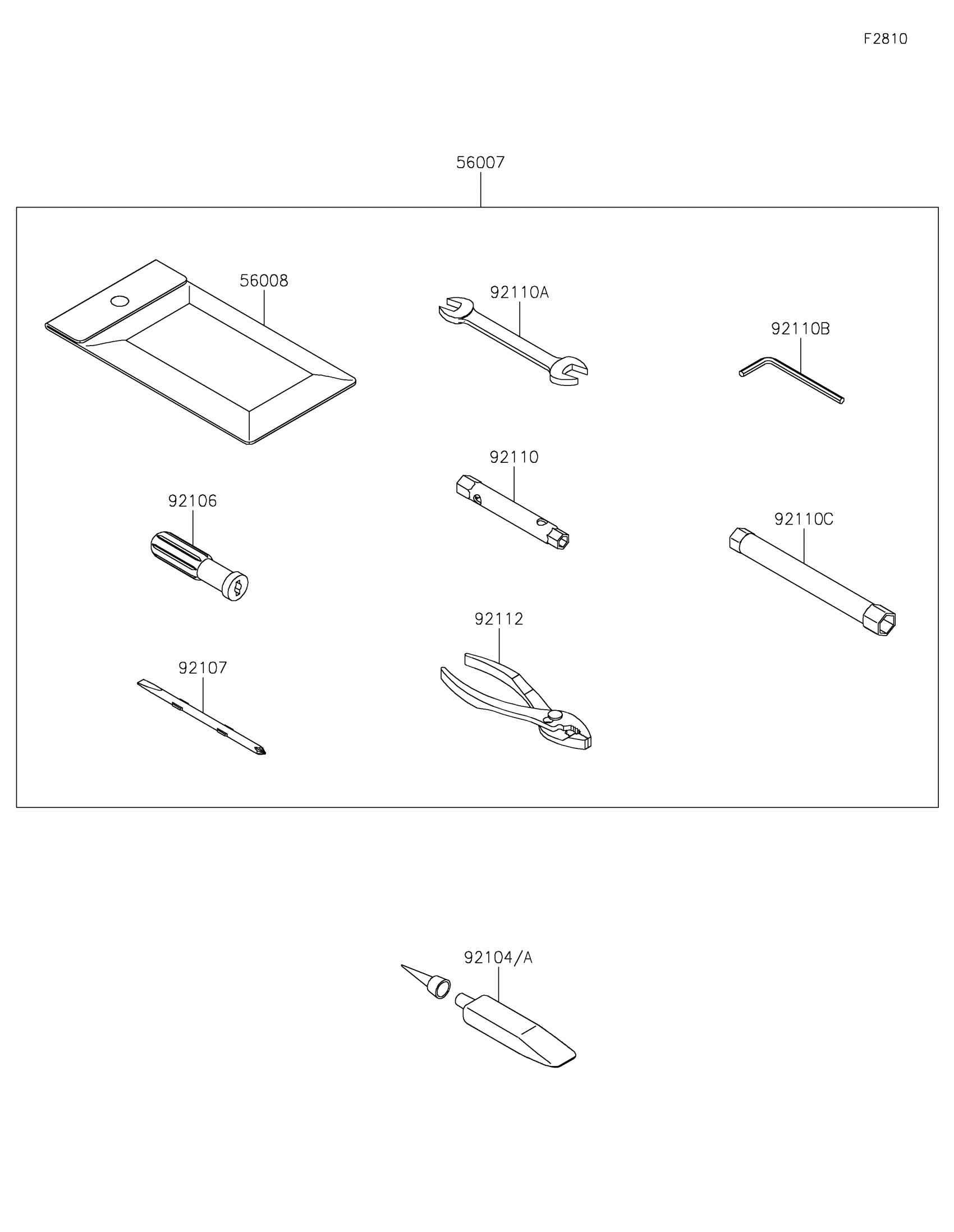

2022 Kawasaki KLR®650 Adventure Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT

56007-0196

1
Out of stock

56008

BAG,TOOL

56008-0036

1
Out of stock

92104

GASKET-LIQUID,TB1211F,CLEAR

92104-0004

1
Out of stock

92104A

GASKET-LIQUID,TB1216B,BLACK

92104-1064

1
Out of stock

92106

GRIP-SCREW DRIVER

92106-0004

1
Out of stock

92107

TOOL-DRIVER,#2PHILLIPS&SLOT

92107-0019

1
Out of stock

92110

TOOL-WRENCH,BOX,8X10

92110-0049

1
Out of stock

92110A

TOOL-WRENCH,OPEN END,14X17

92110-0057

1
Out of stock

92110B

TOOL-WRENCH,ALLEN,4MM

92110-0567

1
Out of stock

92110C

TOOL-WRENCH,BOX,12MM

92110-0579

1
Out of stock

92112

TOOL-PLIERS

92112-0007

1
Out of stock
