2023 Kawasaki KLR®650 Adventure Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

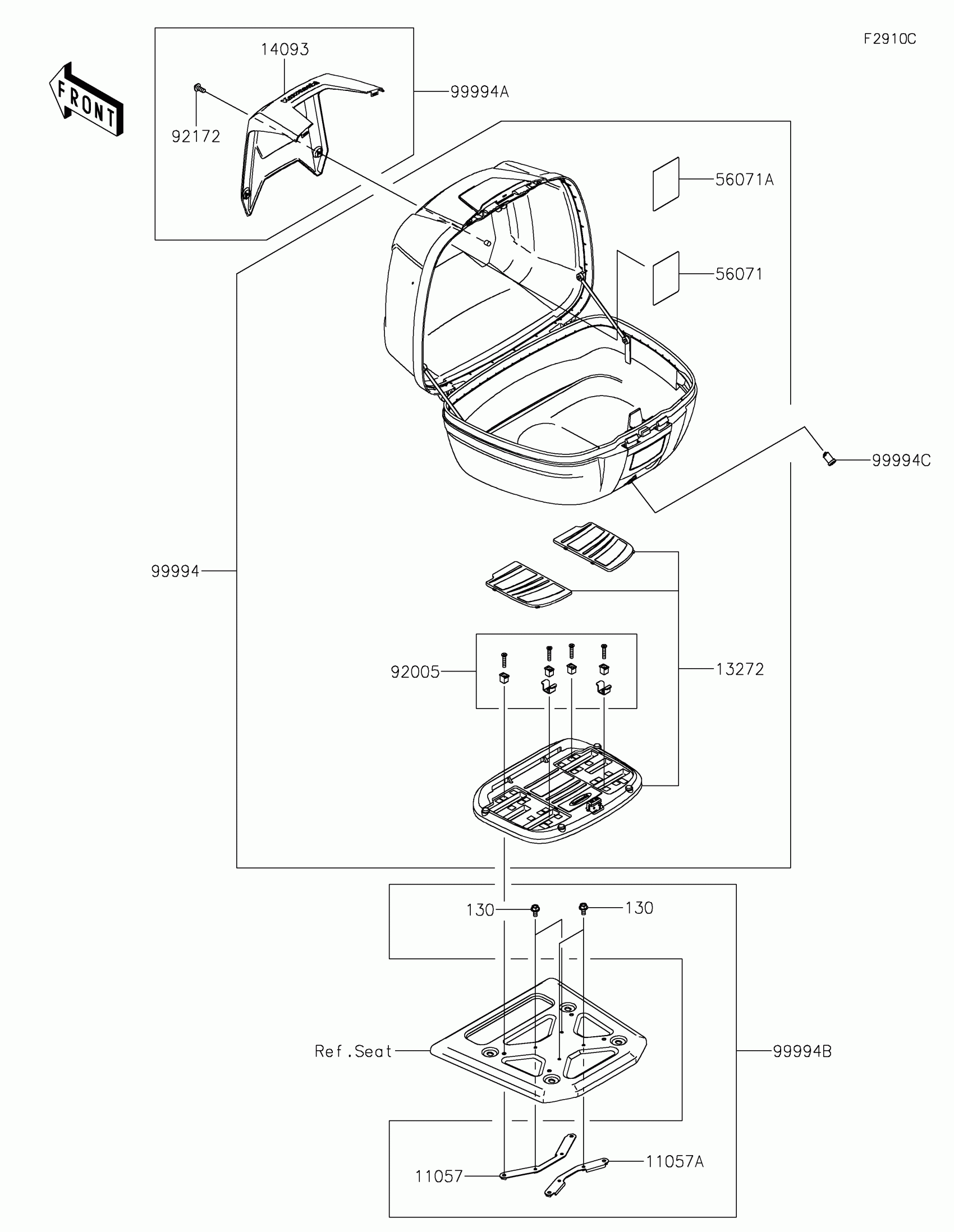

2023 Kawasaki KLR®650 Adventure Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-7099

1
Out of stock

11057A

BRACKET

11057-7100

1
Out of stock

13272

PLATE,TOPCASE BASE

13272-3743

1
Out of stock

14093

COVER,TOPCASE,M.P.SILVER

14093-1067-GU

1
Out of stock

56071

LABEL-WARNING,MAX LOAD

56071-0940

1
Out of stock

56071A

LABEL-WARNING,PICTOGRAM

56071-1043

1
Out of stock

92005

FITTING

92005-1428

1
Out of stock

92172

SCREW,SOCKET,5X14

92172-0823

1
Out of stock

99994

TOPCASE

99994-1493

1
Out of stock

99994A

PANEL-TOPCASE,M.P.SILVER

99994-1494-GU

1
Out of stock

99994B

FITTING-TOPCASE

99994-1495

1
Out of stock

99994C

ROTOR(INNER GROOVE)

99994-1496

1
Out of stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock
