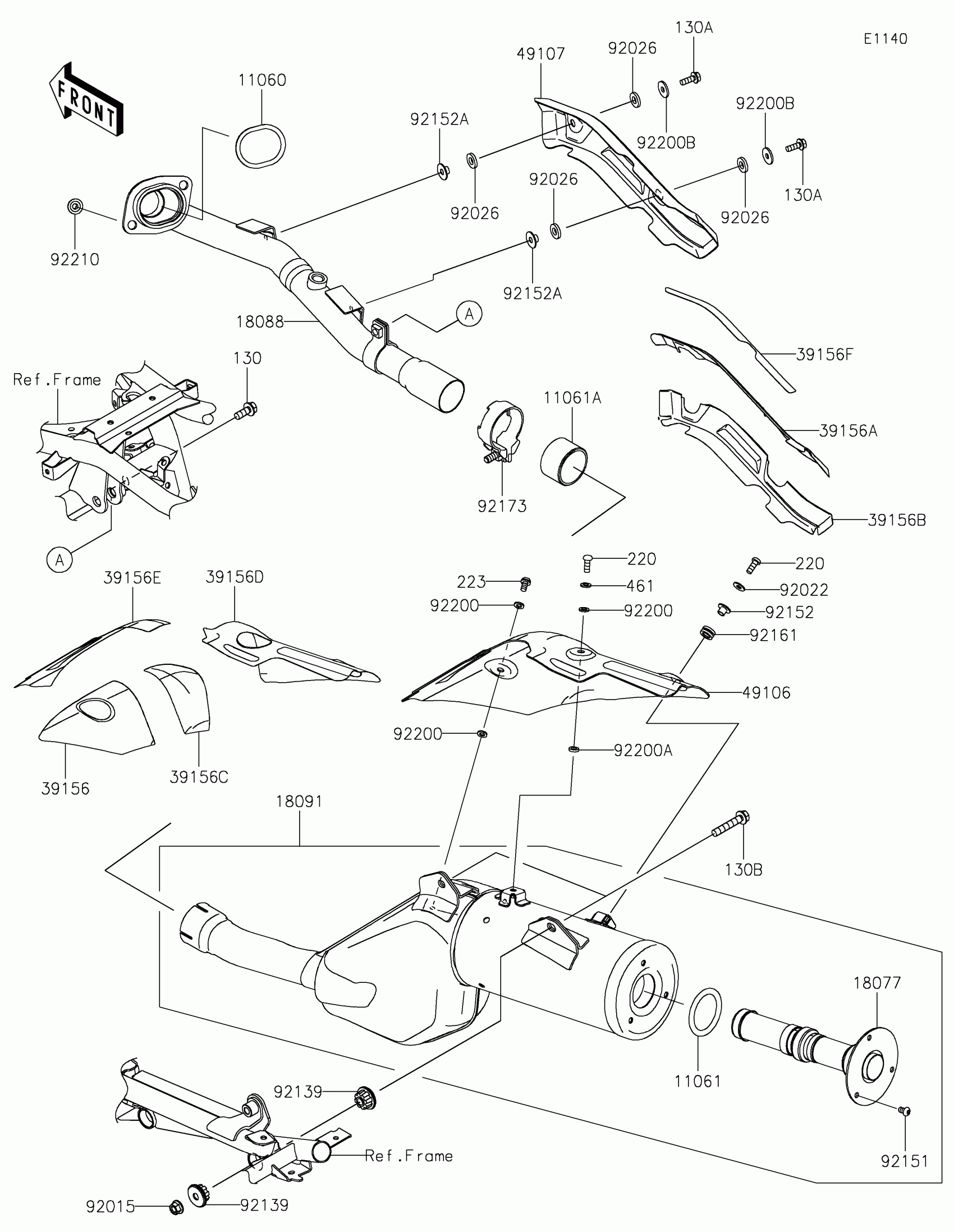

Kawasaki KLR®650 Adventure Muffler(s) Diagram

#

Description
Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1108

$9.20

11061

GASKET

11061-1345

$26.29

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1411

$30.09

18077

ARRESTER-SPARK

18077-0050

$125.98

18088

PIPE-EXHAUST

18088-1665

$359.85

18091

BODY-COMP-MUFFLER

18091-1207

$1,269.61

39156

PAD,MUFFLER COVER,FR

39156-2693

$10.27

39156A

PAD,EXHAUST PIPE COVER,CNT

39156-2698

$9.74

39156B

PAD,EXHAUST PIPE COVER,LWR

39156-2699

$10.79

39156C

PAD,MUFFLER COVER,CNT

39156-2738

$7.89

39156D

PAD,MUFFLER COVER,RR

39156-2773

$14.76

39156E

PAD,MUFFLER COVER,UPP

39156-2774

$11.06

39156F

PAD,EXHAUST PIPE COVER,UPP

39156-2798

$6.03

49106

COVER-MUFFLER

49106-0857

$231.34

49107

COVER-EXHAUST PIPE

49107-0849

$158.90

92015

NUT,8MM

92015-1402

$4.69

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92026

SPACER,8.7X18X3

92026-0919

$2.56

92139

BUSHING

92139-1116

$60.28

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92152

COLLAR

92152-2837

$0.63

92152A

COLLAR

92152-2862

$2.56

92161

DAMPER

92161-2434

$4.11

92173

CLAMP

92173-2463

$20.38

92200

WASHER,6.2X11.5X1.5

92200-2496

$0.63

92200A

WASHER,6.2X11.5X2.5

92200-2511

$1.36

92200B

WASHER,6.5X20X2

92200-2529

$1.84

92210

NUT,8MM

92210-1114

$2.46

130

BOLT-FLANGED,8X20

130BD0820

$2.80

130A

BOLT-FLANGED,6X18

130CB0618

$2.55

130B

BOLT-FLANGED

130CC0845

$3.56

220

SCREW-PAN-CROS,6X16

220AB0616

$4.45

223

SCREW-PAN-WS-CROS,6X12

223AB0612

$4.12

461

WASHER-SPRING,6MM

461DB0600

$0.65
