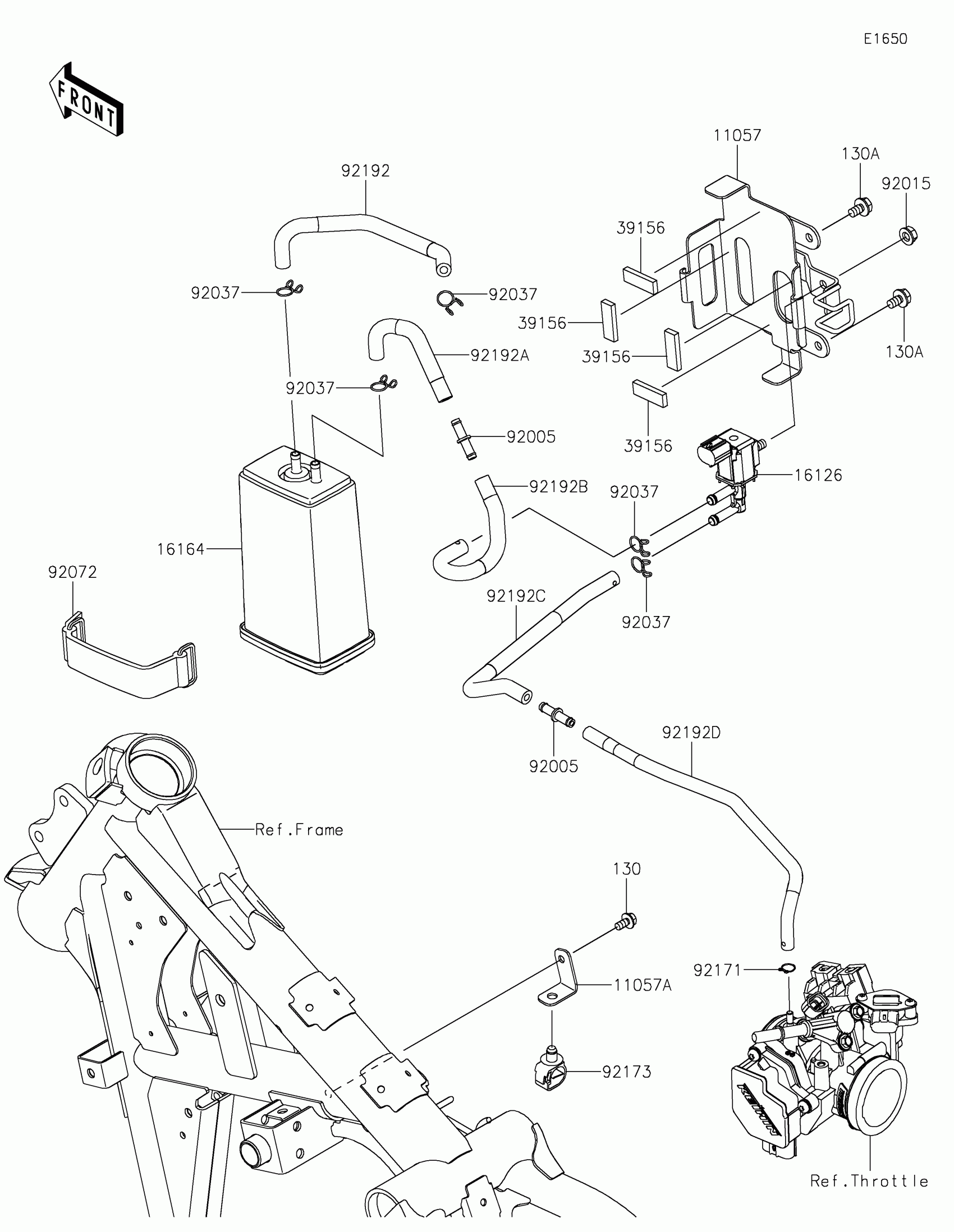

Kawasaki KLR®650 Adventure Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-4309

$37.52

11057A

BRACKET,EVAPO TUBE

11057-4394

$3.53

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

39156

PAD,10X30X4

39156-0927

$0.84

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,TUBE

92037-147

$7.34

92072

BAND,L=90

92072-0135

$18.06

92171

CLAMP

92171-0573

$1.34

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92192

TUBE,TANK-CANISTER

92192-2455

$27.64

92192A

TUBE,CANISTER-FITTING

92192-2456

$23.99

92192B

TUBE,FITTING-VALVE

92192-2457

$21.63

92192C

TUBE,VALVE-FITTING

92192-2458

$39.09

92192D

TUBE,FITTING-THROTTLEBODY

92192-2591

$51.13

130

BOLT-FLANGED,5X10

130BA0510

$1.71

130A

BOLT-FLANGED,6X10

130BA0610

$1.20
