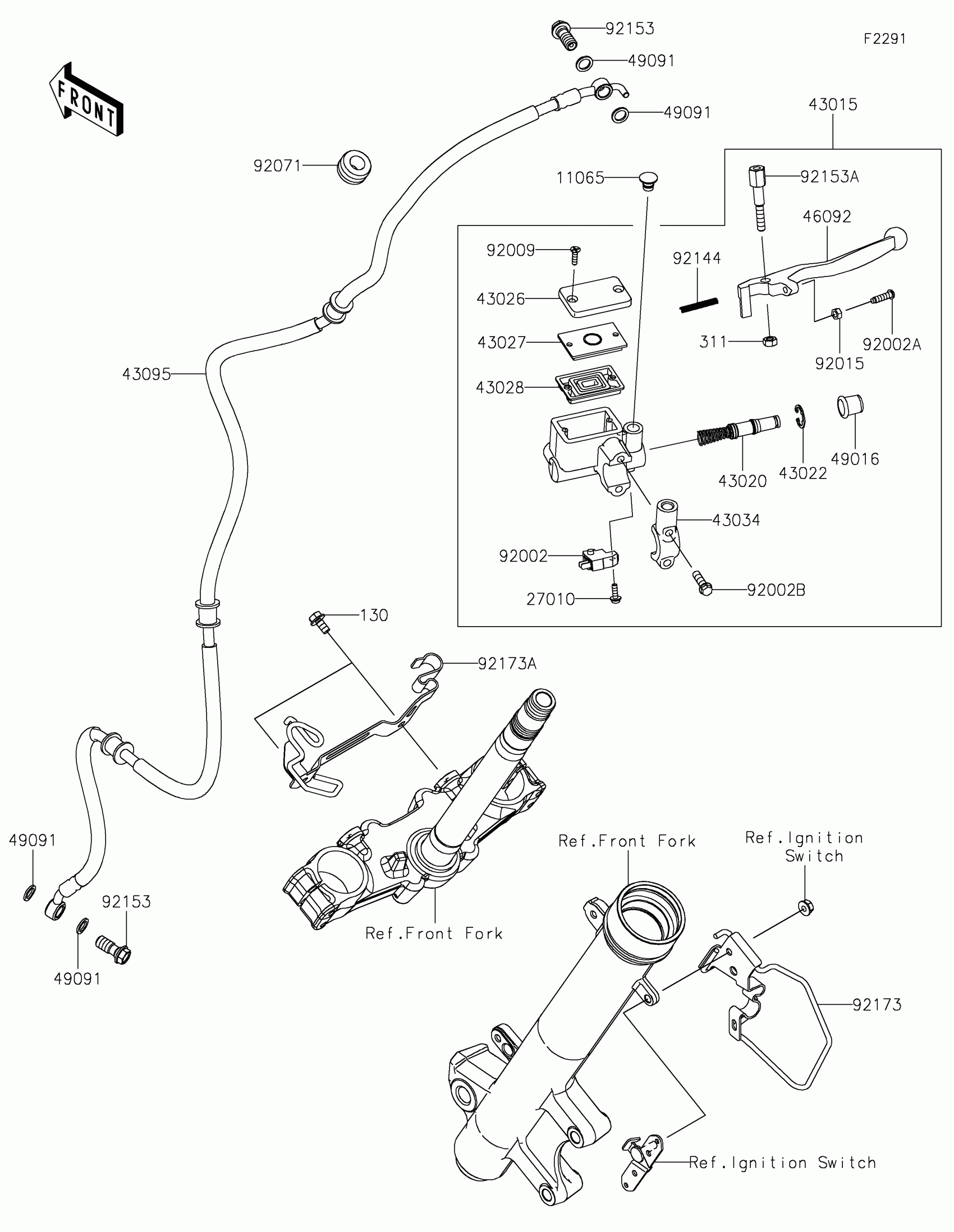

Kawasaki KLR®650 Adventure Front Master Cylinder Diagram

Description

Price

11065

CAP,DUMMY

11065-0921

$5.60

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0788

$306.54

43020

PISTON-COMP-BRAKE

43020-1104

$52.21

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1082

$20.87

43027

PLATE-DIAPHRAGM

43027-1057

$4.13

43028

DIAPHRAGM

43028-1061

$16.18

43034

HOLDER-BRAKE

43034-0145

$19.45

43095

HOSE-BRAKE,FR M/C-FR CALIPER

43095-1882

$180.92

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

$21.91

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,ADJUST

92002-1893

$7.45

92002B

BOLT

92002-1894

$5.52

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,ADJUST

92015-1642

$3.92

92071

GROMMET,12.2X26X16

92071-0785

$2.15

92144

SPRING,RETURN

92144-1103

$9.43

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,LEVER SET

92153-0790

$19.22

92173

CLAMP

92173-2348

$12.14

92173A

CLAMP

92173-2350

$23.04

130

BOLT-FLANGED,6X12

130BA0612

$1.72

311

NUT-HEX,6MM

311BB0600

$1.04
