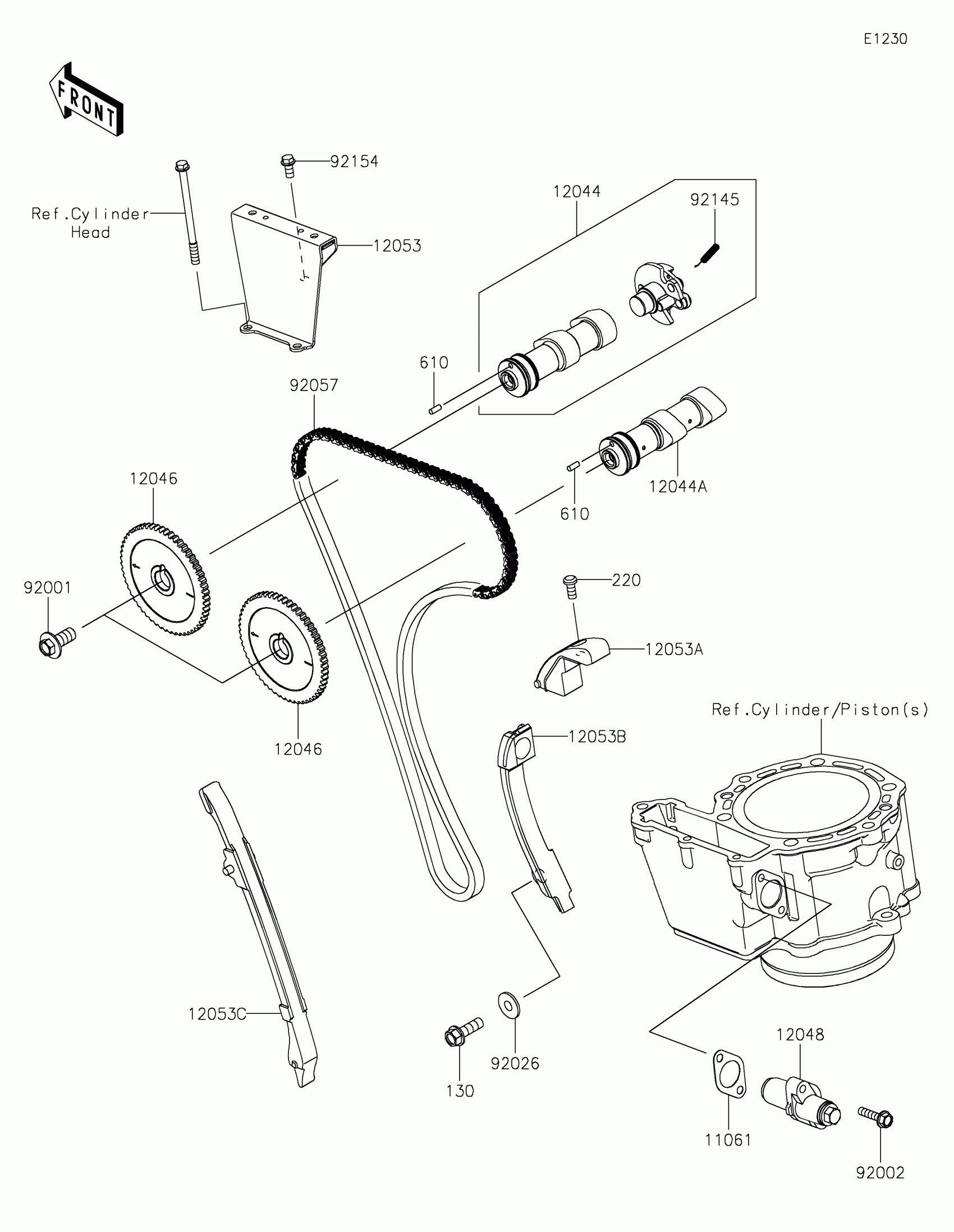

Kawasaki KLR®650 Adventure Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER

11061-0427

$6.20

12044

CAMSHAFT-VALVE,EXHAUST

12044-1522

$355.70

12044A

CAMSHAFT-VALVE,INTAKE

12044-1523

$356.73

12046

SPROCKET,48T

12046-1160

$68.42

12048

TENSIONER-ASSY,CAM CHAIN

12048-1141

$127.47

12053

GUIDE-CHAIN,UPP

12053-0314

$72.41

12053A

GUIDE-CHAIN,LWR

12053-1134

$21.09

12053B

GUIDE-CHAIN,RR

12053-1222

$77.85

12053C

GUIDE-CHAIN,FR

12053-1223

$44.98

92001

BOLT,10X23

92001-1859

$9.91

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92026

SPACER

92026-1146

$8.58

92057

CHAIN,CAM,92RH2015

92057-0671

$144.94

92145

SPRING,DECOMPRESSOR

92145-1984

$6.16

92154

BOLT,FLANGED,6X12

92154-0358

$1.94

130

BOLT-FLANGED,8X25

130BA0825

$2.95

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.48

610

ROLLER,4X10

610A0410

$4.31
