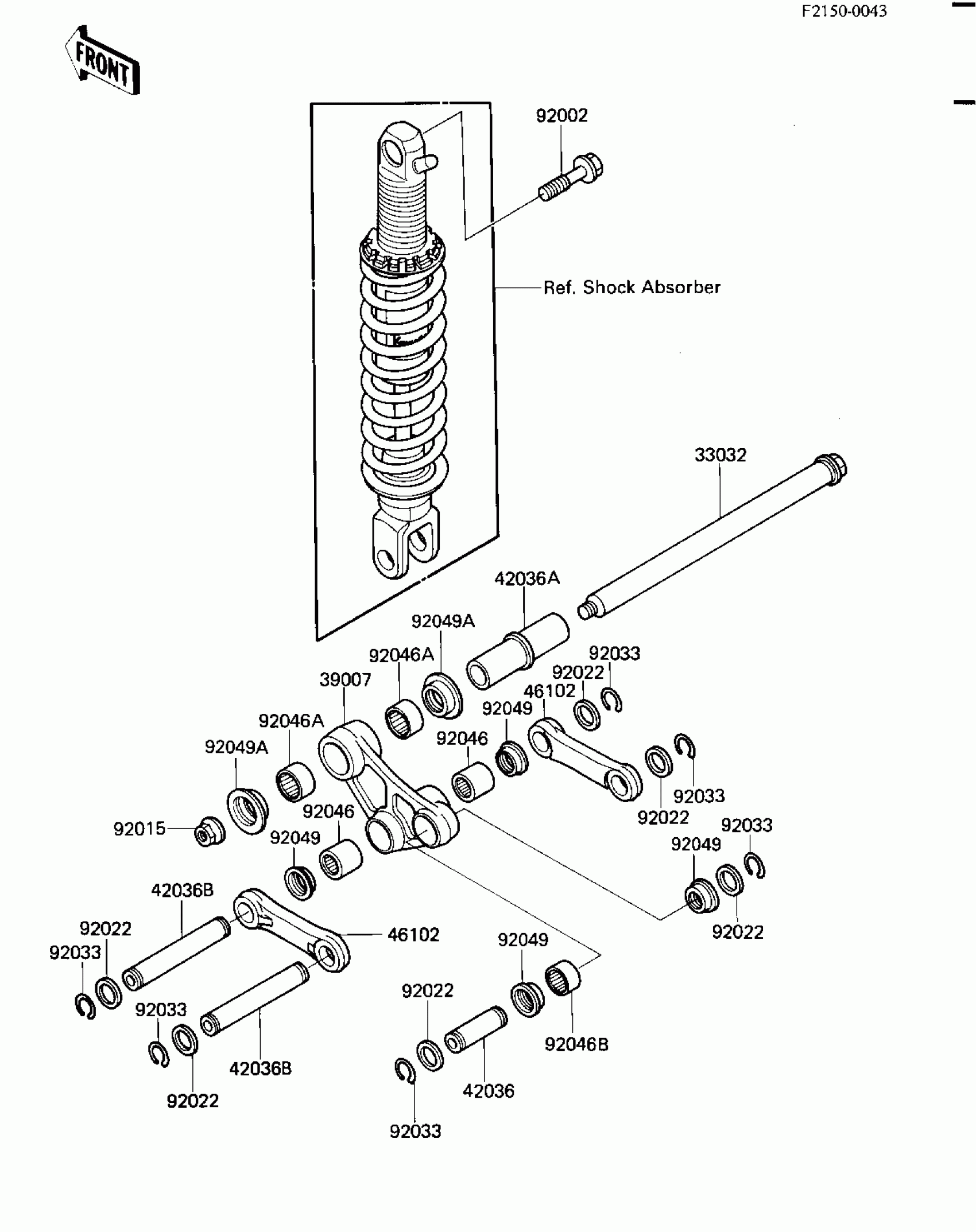

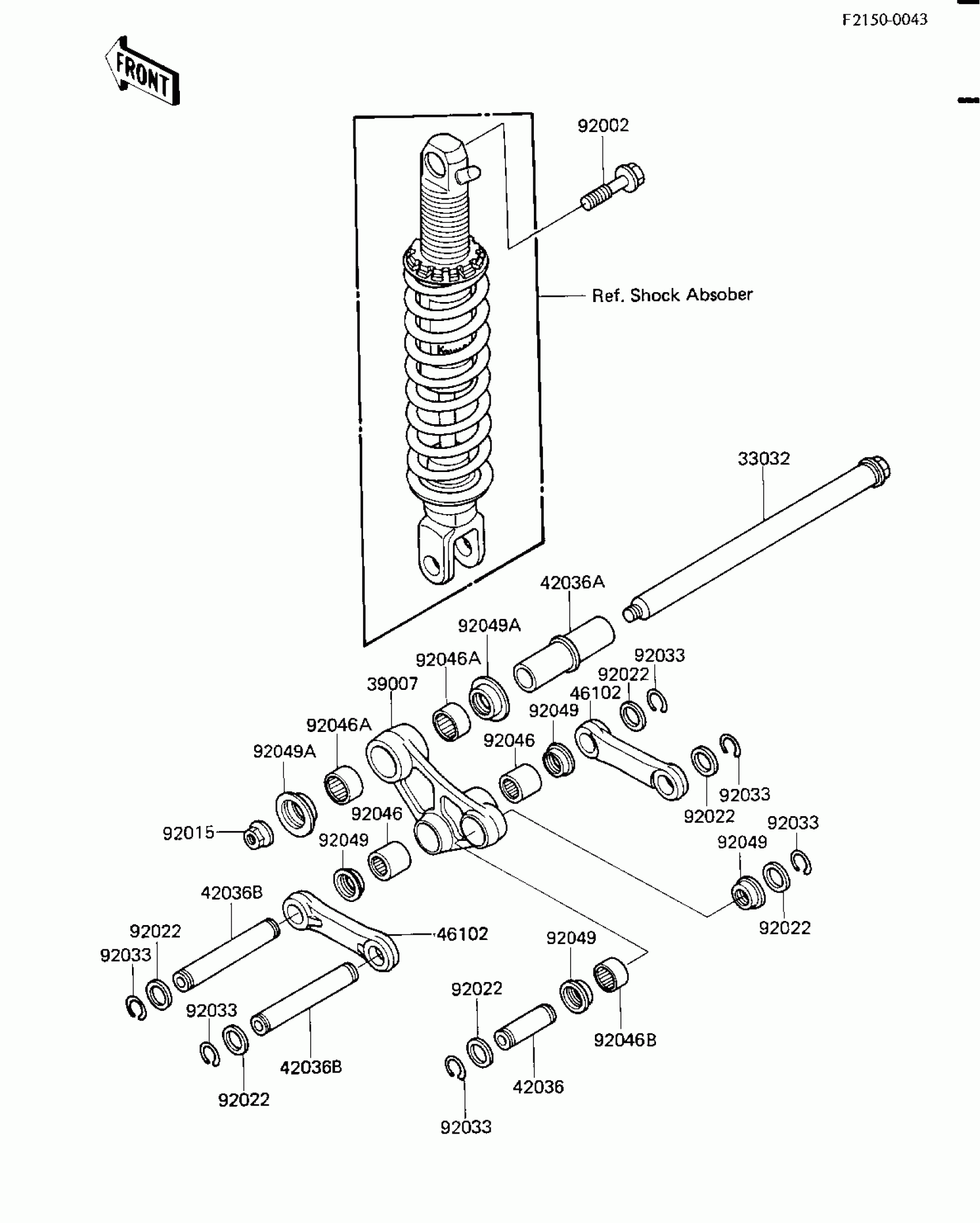

Kawasaki KL600 REAR SUSPENSION Diagram

Description

Price

33032

SHAFT-SWING ARM

33032-1107

Unavailable

39007

ARM-SUSP,UNI TRAK

39007-1057

$265.12

42036

SLEEVE,L=59

42036-1133

$35.38

42036A

SLEEVE

42036-1135

$124.71

42036B

SLEEVE,L=121

42036-1140

$54.79

46102

ROD,UNI TRAK

46102-1115

$99.23

92002

BOLT,12X55

92002-1130

$10.65

92015

NUT,14MM

92015-1459

$9.91

92022

WASHER,20.1X28X1

92022-1547

$4.31

92033

RING-SNAP,18.3MM

92033-1168

$4.55

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92046B

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,28X34X5.7

92049-1181

$9.28
