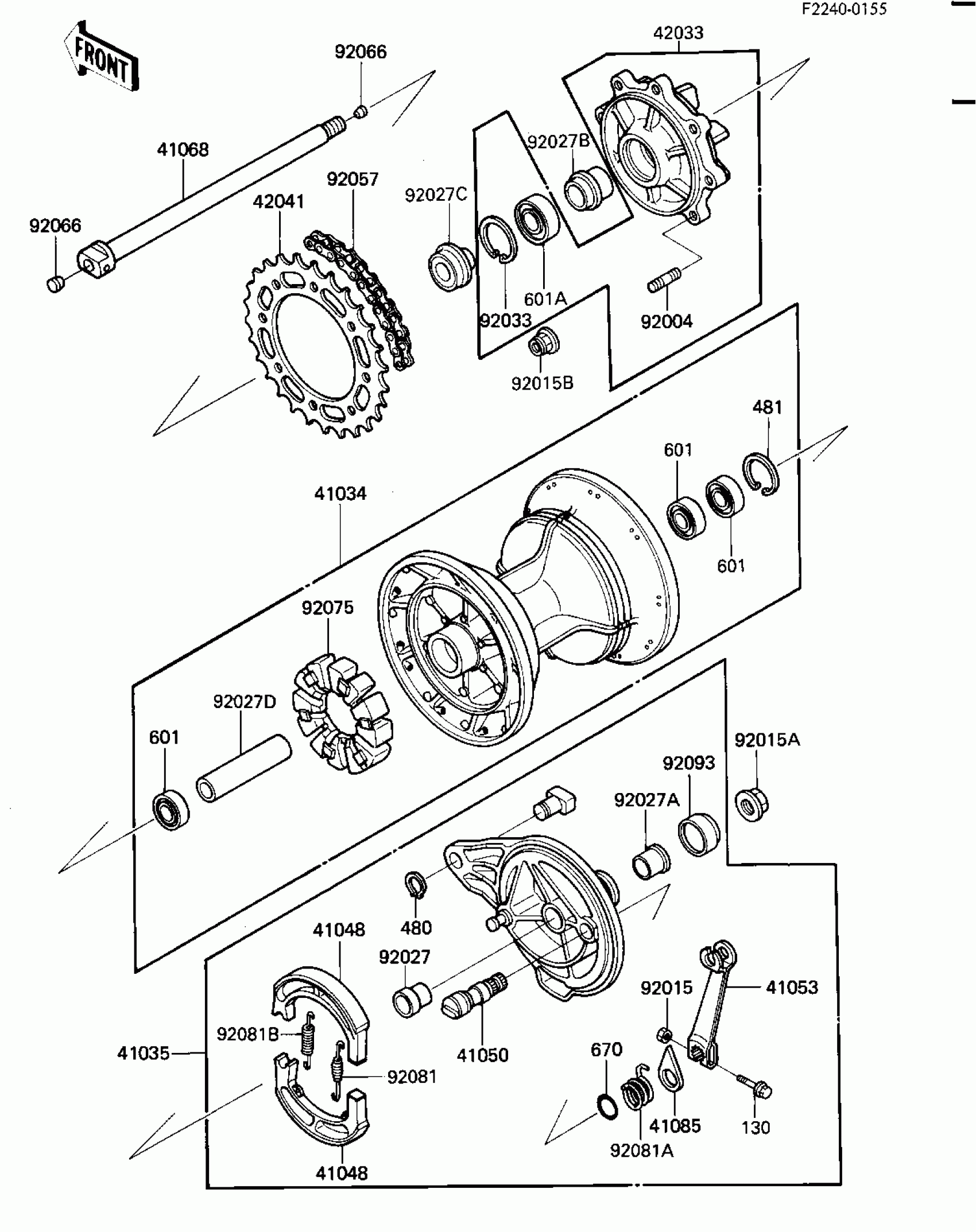

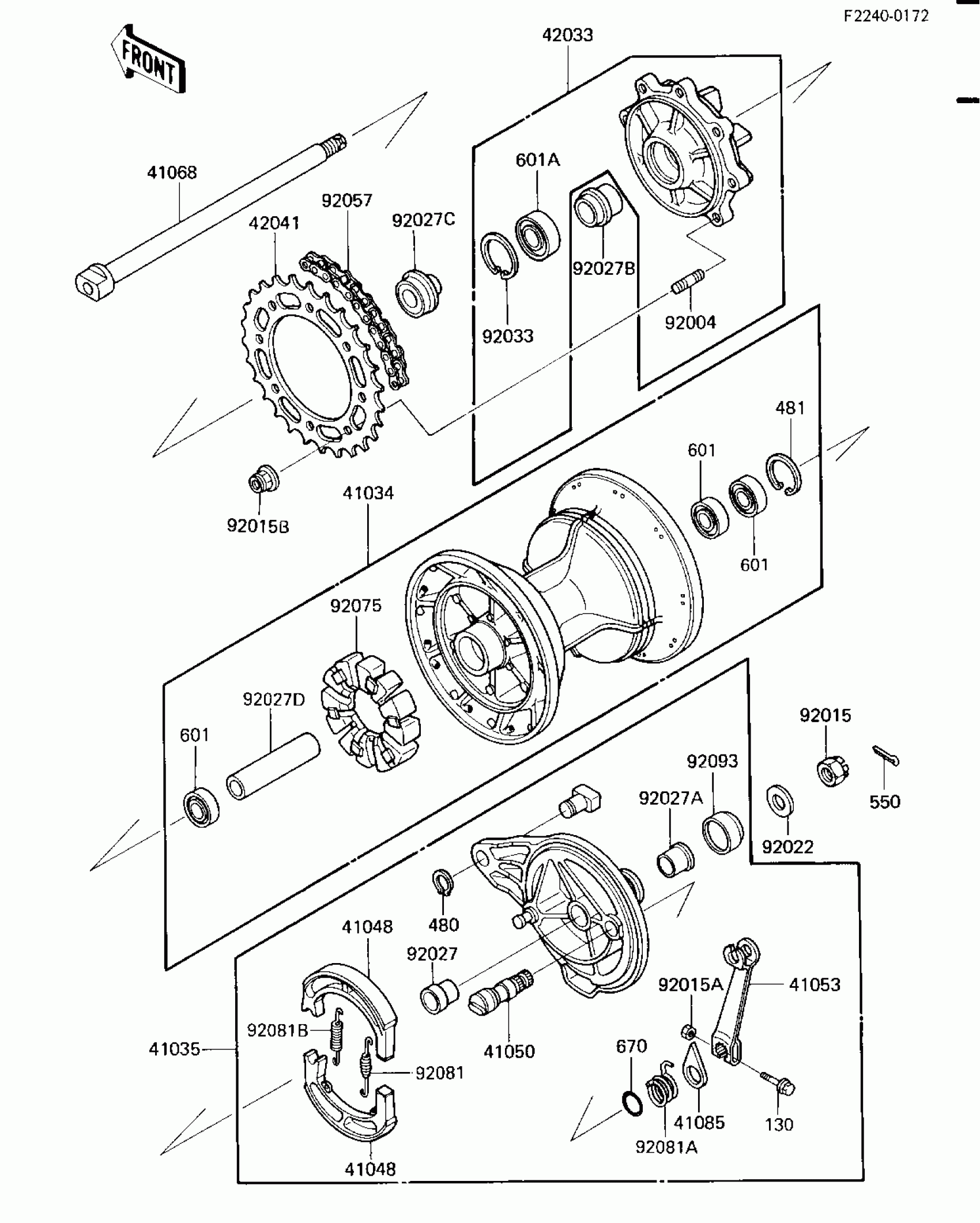

Kawasaki KL600 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

41034

DRUM-ASSY,REAR BRAKE

41034-1107

$622.80

41035

PANEL-ASSY-BRAKE,RR

41035-1194

$325.82

41048

SHOE-BRAKE

41048-1060

$38.07

41050

CAM-BRAKE

41050-1060

$38.08

41053

LEVER-BRAKE CAM

41053-1051

$82.87

41068

AXLE,RR

41068-1184

$98.92

41085

INDICATOR

41085-005

$12.96

42033

COUPLING-ASSY,REAR HUB

42033-1112

$224.56

42041

SPROCKET-HUB,43T

42041-1185

Unavailable

92004

STUD,8X16

92004-1150

$5.46

92015

NUT,CASTLE,16MM

42045-014

$9.91

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92015B

NUT,LOCK,8MM

92015-1506

Unavailable

92022

WASHER,17.3X32X3.2

42046-009

$7.84

92027

COLLAR,REAR BRAKE PAN

92027-1689

$23.18

92027A

COLLAR,REAR BRAKE PAN

92027-1690

Unavailable

92027B

COLLAR,REAR HUB COUPLING,L=23

92027-1770

$25.19

92027C

COLLAR,REAR HUB COUPL

92027-1771

Unavailable

92027D

COLLAR,REAR BRAKE DRUM,L=90

92027-1772

$16.91

92033

RING-SNAP,42MM

92033-1041

$6.16

92057

CHAIN,DRIVE,EK520LDOX

92057-1177

$381.19

92075

DAMPER,SHOCK,RR HUB

92075-1068

$47.86

92081

SPRING,BRAKE SHOE

92081-1550

$9.49

92081A

SPRING,BRAKE CAM LEVER RETURN

92081-1615

$18.66

92081B

SPRING,BRAKE SHOE

92081-1766

$8.03

92093

OIL SEAL

92093-1004

Unavailable

130

BOLT-FLANGED,6X30

130G0630

$1.42

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6003UC3

601B6003U

$22.40

601A

BEARING-BALL,#6004UC3

601B6004U

$37.11

670

O RING,15MM

670B2015

$1.42
