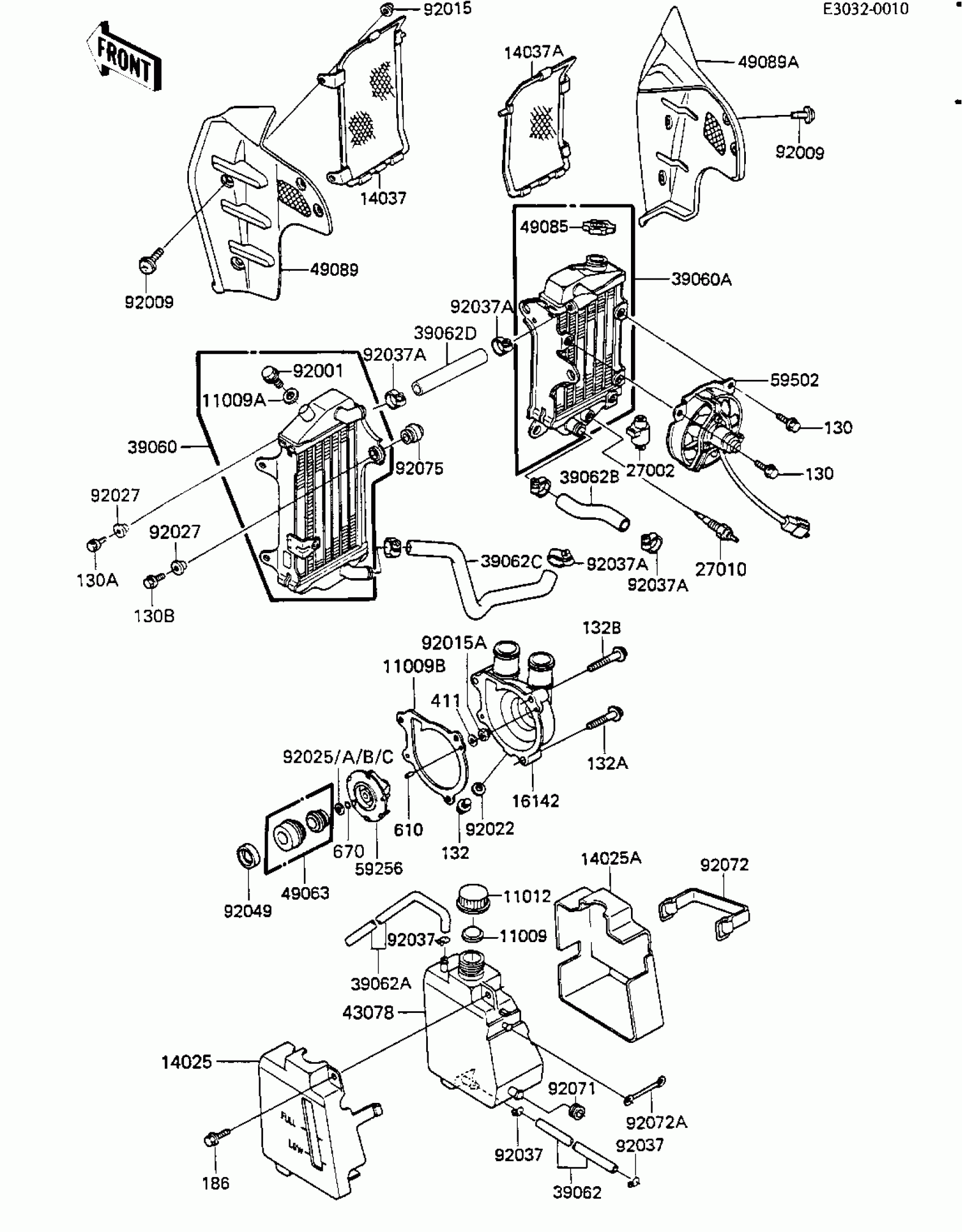

Kawasaki KL600 RADIATORS/FAN/WATER PUMP Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11009A
GASKET,DRAIN BOLT
11009-1152
$7.55
11009B
GASKET,WATER PUMP COVER
11060-1114
$8.03
11012
CAP
11012-1084
$1.72
14025
COVER,RESERVOIR,LH
14025-1782
Unavailable
14025A
COVER,RESERVOIR,RH
14025-1783
Unavailable
14037
SCREEN,RADIATOR,LH
14037-1056
$50.49
14037A
SCREEN,RADIATOR,RH
14037-1057
$50.16
16142
COVER-PUMP,WATER
16142-1057
$104.94
27002
RELAY-ASSY
27002-1051
$52.57
27010
SWITCH,FAN
27010-1167
$134.15
39060
EXCHANGER-HEAT,LH
39060-1055
$814.41
39060A
EXCHANGER-HEAT,RH
39060-1056
$735.77
39062
HOSE-COOLING,5.5X10.5X970
39062-1060
Unavailable
39062A
HOSE-COOLING,5.5X10.5
39062-1061
$13.77
39062B
HOSE-COOLING,CYLINDER
39062-1062
Unavailable
39062C
HOSE-COOLING,RADIATOR
39062-1090
Unavailable
39062D
HOSE-COOLING,RADIATOR-PUMP
39062-1256
$25.59
43078
RESERVOIR,TANK
43078-1061
Unavailable
49063
SEAL-MECHANICAL
49063-1054
$16.68
49085
CAP-ASSY-PRESSURE
49085-1052
$53.94
49089
SHROUD-ENGINE,LH,BLAC
49089-1053-6Z
Unavailable
49089A
SHROUD-ENGINE,RH,BLAC
49089-1054-6Z
Unavailable
59256
IMPELLER
59256-1055
$30.63
59502
FAN-ASSY
59502-1052
$596.05
92001
BOLT,RADIATOR DRAIN
92002-1682
$20.51
92009
SCREW,6X14,WHITE
92009-1287
$2.55
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92015A
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92022
WASHER,6.2X11X1
92022-304
$3.65
92025
SHIM,T=2.0
92025-1505
Unavailable
92025A
SHIM,T=1.4
92025-1506
Unavailable
92025B
SHIM,T=0.8
92025-1507
Unavailable
92025C
SHIM,T=0.3
92025-1508
Unavailable
92027
COLLAR,6.5X10X14.1
92027-1183
$5.52
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92049
SEAL-OIL,SC10227
92049-1157
$9.28
92071
GROMMET
92071-1115
$5.46
92072
BAND,L=82
92072-053
$12.35
92072A
BAND,L=58
92072-1156
$7.24
92075
DAMPER
92075-1352
$6.52
130
BOLT-FLANGED,6X12
130J0612
$2.19
130A
BOLT-FLANGED
130J0620
$0.43
130B
BOLT-FLANGED,6X25
130J0625
$2.62
132
BOLT-FLANGED-SMALL,6X8
132J0608
$3.41
132A
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132B
BOLT-FLANGED-SMALL,6X35
132J0635
$3.84
186
BOLT-UPSET-WP
186J0618
$3.84
411
WASHER PLAIN
411F0600
$1.18
610
ROLLER,4X8
610A0408
$4.31
670
O RING,6MM
670B1506
$1.28
