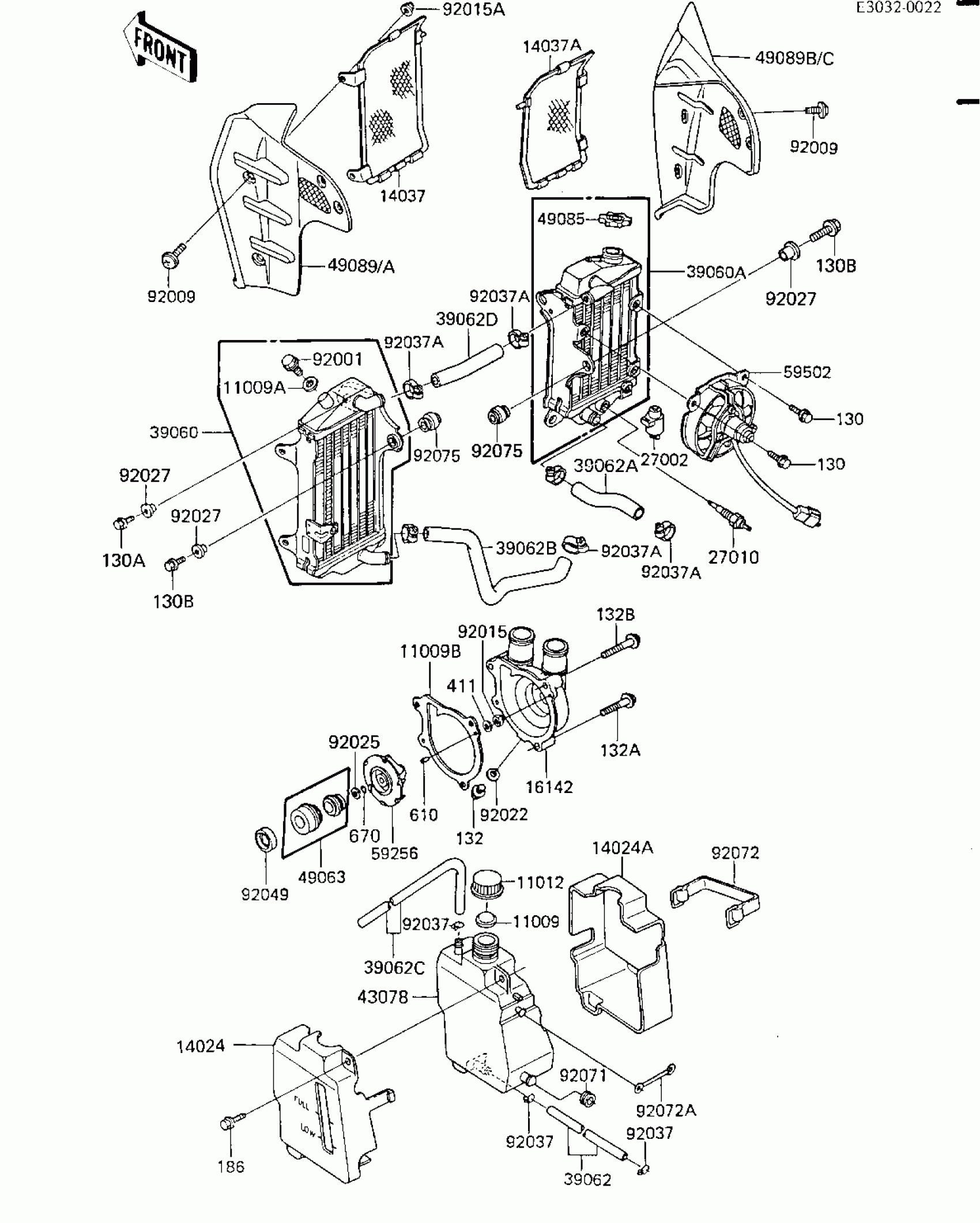

Kawasaki KL600 RADIATORS/FAN/COOLANT TANK/WATER PUMP Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11009A

GASKET,DRAIN BOLT

11009-1152

$7.44

11009B

GASKET,WATER PUMP COVER

11060-1114

$6.13

11012

CAP

11012-1084

$1.25

14024

COVER,RESERVOIR

14025-1991

$37.37

14024A

COVER,RESERVOIR

14025-1992

$37.37

14037

SCREEN,RADIATOR,LH

14037-1056

$51.47

14037A

SCREEN,RADIATOR,RH

14037-1057

$51.13

16142

COVER-PUMP,WATER

16142-1057

$106.98

27002

RELAY-ASSY

27002-1051

$48.39

27010

SWITCH,FAN

27010-1167

$119.71

39060

EXCHANGER-HEAT,LH

39060-1055

$832.95

39060A

EXCHANGER-HEAT,RH

39060-1056

$752.63

39062

HOSE-COOLING,5.5X10.5X970

39062-1060

Unavailable

39062A

HOSE-COOLING,CYLINDER

39062-1062

Unavailable

39062B

HOSE-COOLING,RADIATOR

39062-1090

Unavailable

39062C

HOSE-COOLING

39062-1131

$18.76

39062D

HOSE-COOLING,RADIATOR-PUMP

39062-1256

$24.03

43078

RESERVOIR,TANK

43078-1061

$41.38

49063

SEAL-MECHANICAL

49063-1054

$12.56

49085

CAP-ASSY-PRESSURE

49085-1052

$47.60

49089

SHROUD-ENGINE,LH,BLUE

49089-1053-BA

Unavailable

49089B

SHROUD-ENGINE,RH,BLUE

49089-1054-BA

Unavailable

59256

IMPELLER

59256-1055

$27.07

59502

FAN-ASSY

59502-1052

$609.59

92001

BOLT,RADIATOR DRAIN

92002-1682

$16.61

92009

SCREW,6X14,WHITE

92009-1287

$1.81

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92022

WASHER,6.2X11X1

92022-304

$2.76

92025

SHIM,T=0.8

92025-1507

$2.23

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,COOLING HOSE

92037-1589

$14.01

92049

SEAL-OIL,SC10227

92049-1157

$7.08

92071

GROMMET

92071-1115

$4.14

92072

BAND,L=82

92072-053

$11.81

92072A

BAND,L=58

92072-1156

$7.15

92075

DAMPER

92075-1352

$4.88

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

130B

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL,6X8

132J0608

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

186

BOLT-UPSET-WP

186J0618

Unavailable

411

WASHER PLAIN

411F0600

$0.95

610

ROLLER,4X8

610A0408

$3.29

670

O RING,6MM

670B1506

$0.98
