Description

Price

13061

BOSS,KICK PEDAL

13061-1106

Unavailable

13064

LEVER-ASSY-KICK,PEDAL

13064-1102

Unavailable

13066

SHAFT-KICK

13066-1058

Unavailable

13070

GUIDE,KICK SPRING

13070-1106

Unavailable

13078

RATCHET

13078-1051

Unavailable

13206

GUIDE-KICK

13206-1051

Unavailable

32085

STOPPER,KICKSTARTER

13072-014

$11.60

59051

GEAR-SPUR,IDLE

59051-1102

Unavailable

59051A

GEAR-SPUR,KICK

59051-1142

$138.06

92001

BOLT,8X28

92001-1042

$6.69

92022

WASHER,15.2X20X1

92022-1019

$5.23

92022A

WASHER,20.3X29X0.5

92022-1479

$5.05

92022B

WASHER,25.3X30X0.5

92022-159

$8.58

92022C

WASHER,20.5X25.5X0.5

92022-252

$6.22

92033

RING-SNAP,24MM

92033-026

$8.79

92033A

RING-SNAP,18MM

92033-029

$9.82

92033B

RING-SNAP,10MM

92033-1166

$3.89

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING

92081-097

$11.80

92081B

SPRING,KICKSTARTER

92082-003

$28.46

112

BOLT-UPSET

112G0618

$1.01

290

SCREW-SET-SOCKET,8X8

290Q0808

$4.78

600

BALL-STEEL,1/4

600A0800

$0.62

670

O RING,15MM

670B2015

$1.42

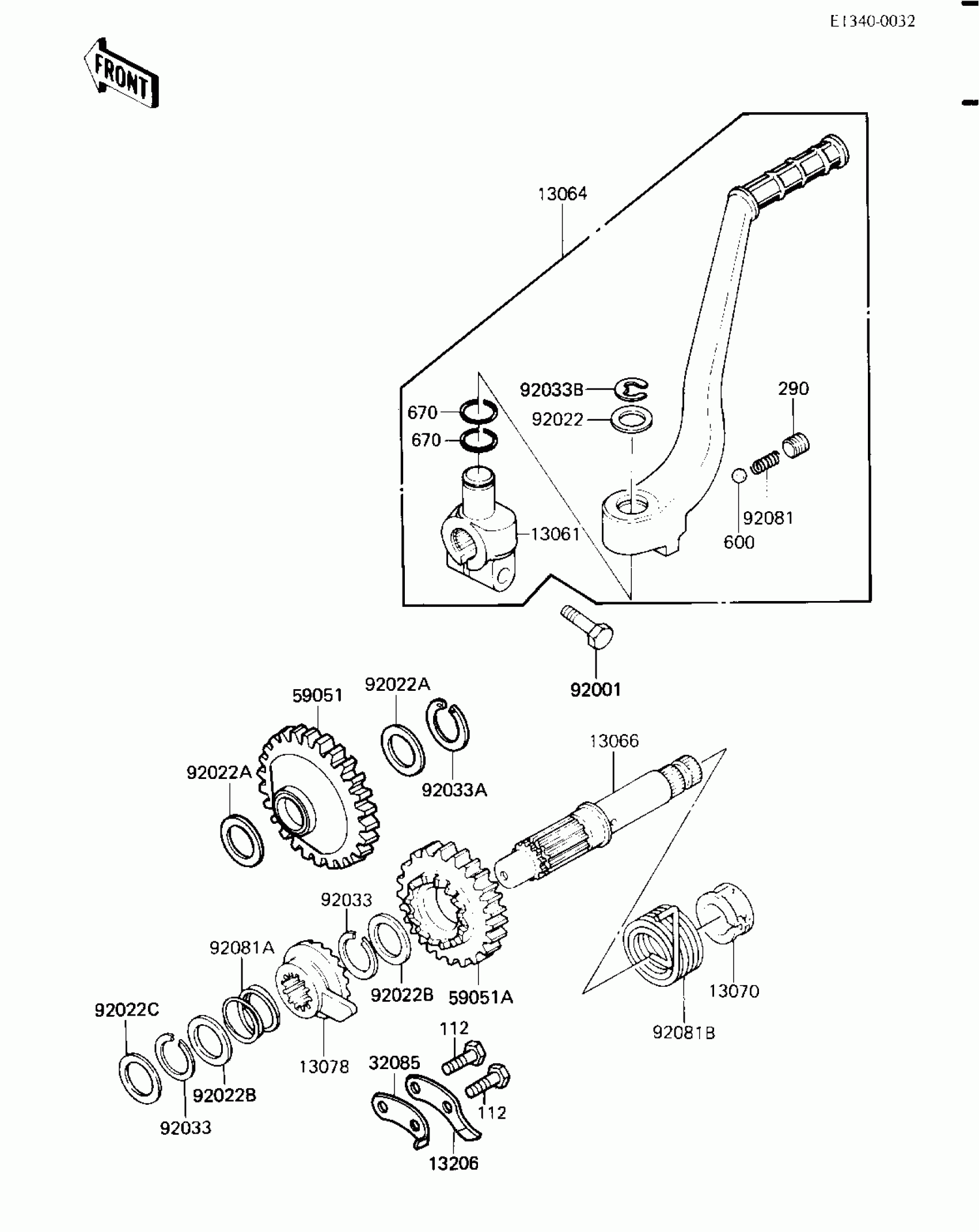

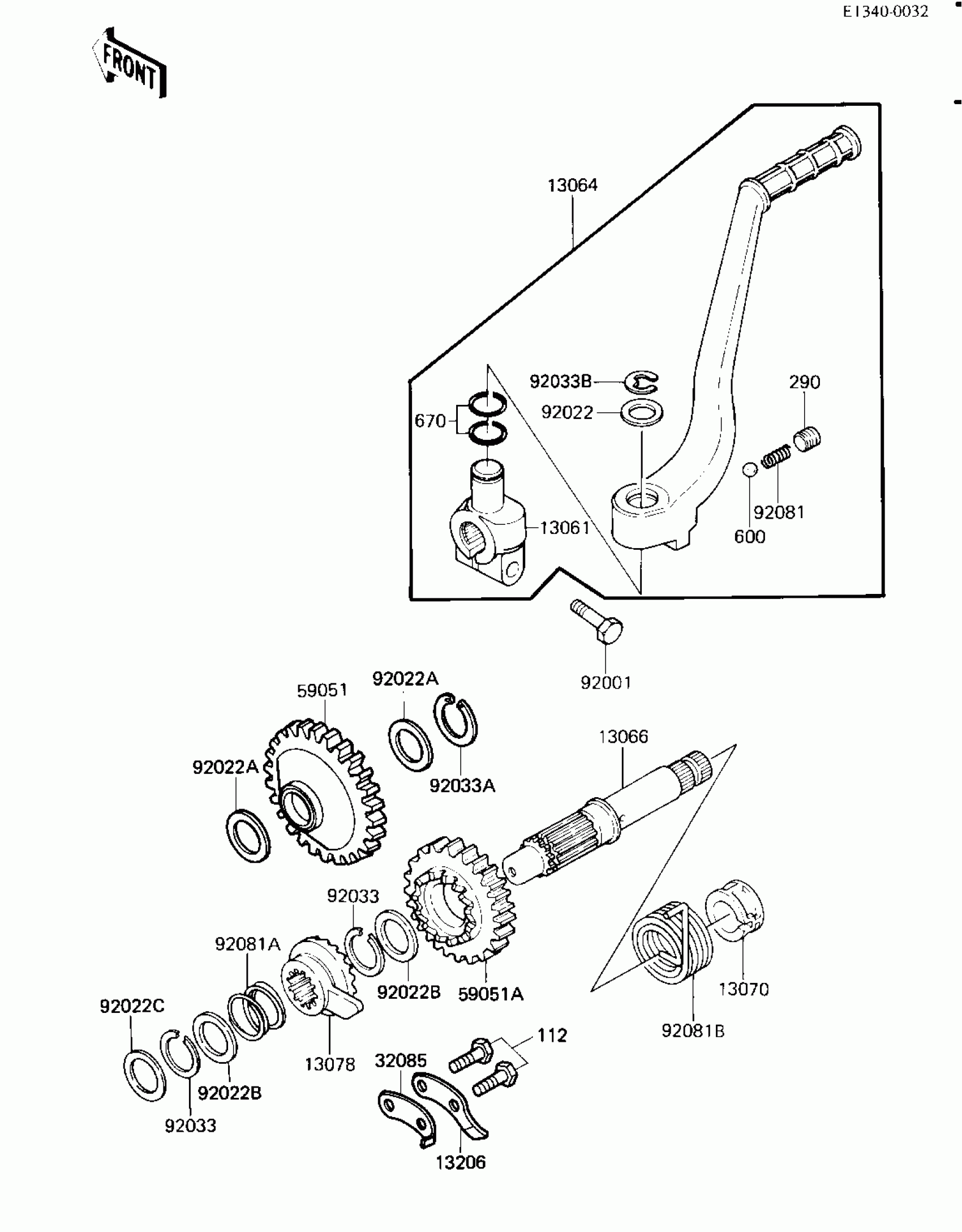

Kawasaki KL600 KICKSTARTER MECHANISM Diagram

BOSS,KICK PEDAL

LEVER-ASSY-KICK,PEDAL

SHAFT-KICK

GUIDE,KICK SPRING

RATCHET

GUIDE-KICK

STOPPER,KICKSTARTER

GEAR-SPUR,IDLE

GEAR-SPUR,KICK

BOLT,8X28

WASHER,15.2X20X1

WASHER,20.3X29X0.5

WASHER,25.3X30X0.5

WASHER,20.5X25.5X0.5

RING-SNAP,24MM

RING-SNAP,18MM

RING-SNAP,10MM

SPRING,KICK PEDAL

SPRING

SPRING,KICKSTARTER

BOLT-UPSET

SCREW-SET-SOCKET,8X8

BALL-STEEL,1/4

O RING,15MM
