Description

Price

43049

PACKING,FUEL TAP LEVER

43049-1017

$7.26

51002F

TANK-COMP-FUEL,P.WHIT

51002-5184-F1

$556.75

51002G

TANK-COMP-FUEL,P.WHIT

51002-5185-F1

$535.92

51023

TAP-ASSY,FUEL

51023-1106

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1063

Unavailable

92001

BOLT,6X20

92001-1091

$3.92

92009

SCREW PAN HEAD 3X5

220B0305A

$0.59

92022

WASHER,10.5X24X1.6

92022-1137

$4.38

92022A

WASHER-PLAIN

92022-183

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92055

RING-O,FUEL TAP LEVER

92055-1111

$5.00

92055A

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER,FUEL TANK

92075-1382

$28.97

92075B

DAMPER,FUEL TANK

92075-1511

Unavailable

92093

SEAL

92093-1193

Unavailable

554

PIN-SNAP,10MM

554A1000

$1.36

702

TUBE,5X1430

702A051430

$29.14

702A

TUBE-RUBBER,5X8X620

702A05620

$29.14

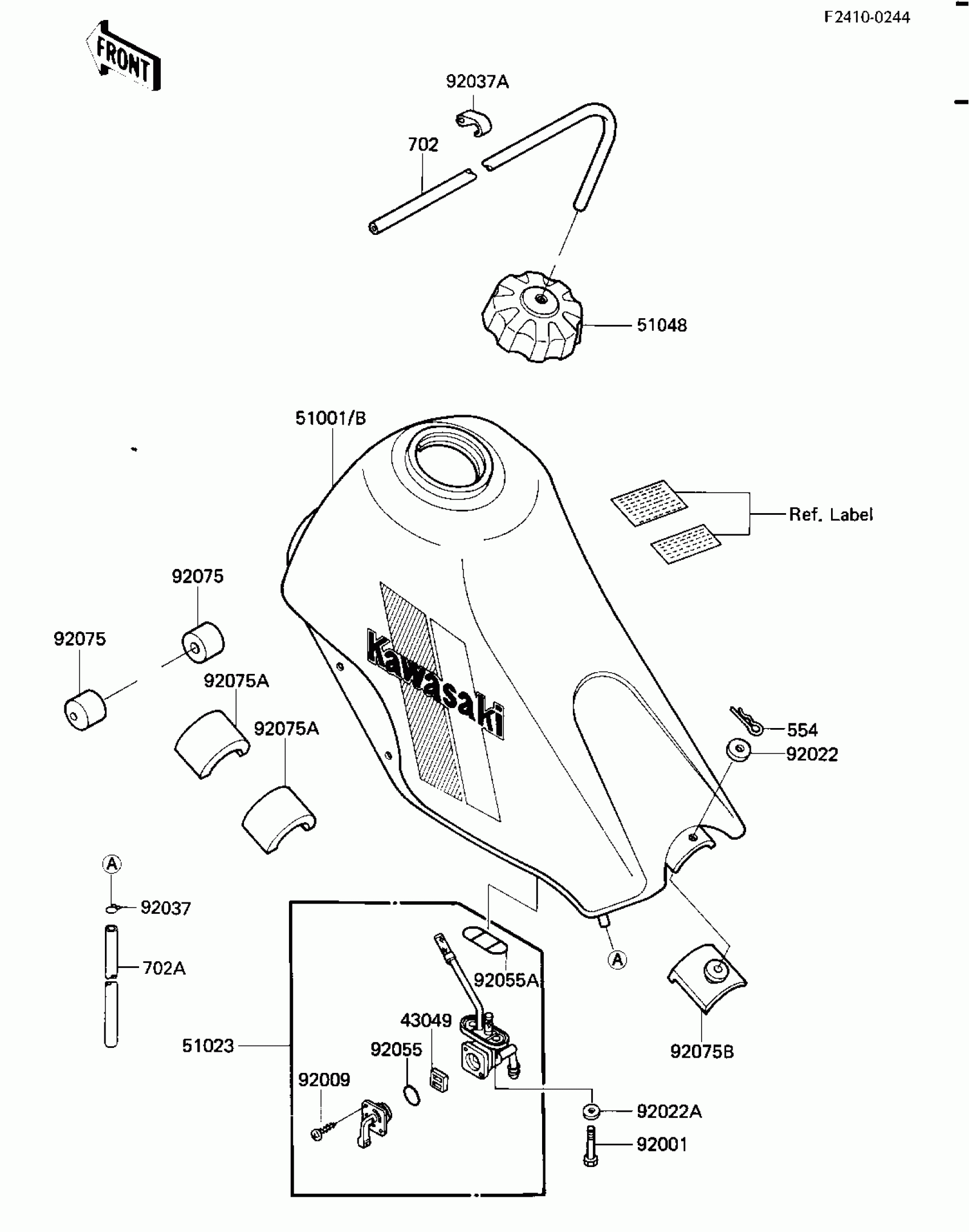

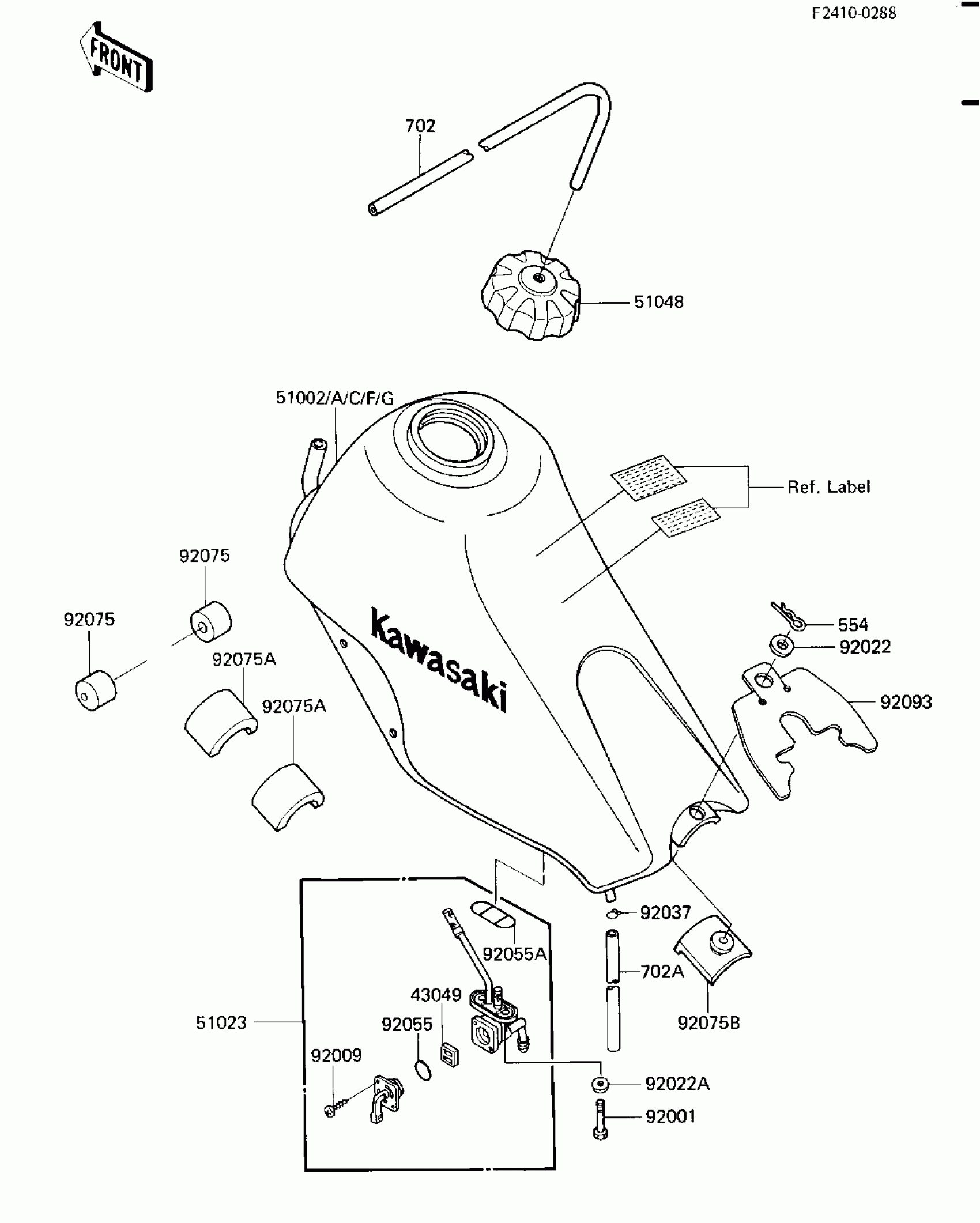

Kawasaki KL600 FUEL TANK Diagram

PACKING,FUEL TAP LEVER

TANK-COMP-FUEL,P.WHIT

TANK-COMP-FUEL,P.WHIT

TAP-ASSY,FUEL

CAP-ASSY-TANK,FUEL

BOLT,6X20

SCREW PAN HEAD 3X5

WASHER,10.5X24X1.6

WASHER-PLAIN

CLAMP,TUBE

RING-O,FUEL TAP LEVER

RING-O,FUEL TAP PACKING

DAMPER,FUEL TANK

DAMPER,FUEL TANK

DAMPER,FUEL TANK

SEAL

PIN-SNAP,10MM

TUBE,5X1430

TUBE-RUBBER,5X8X620
