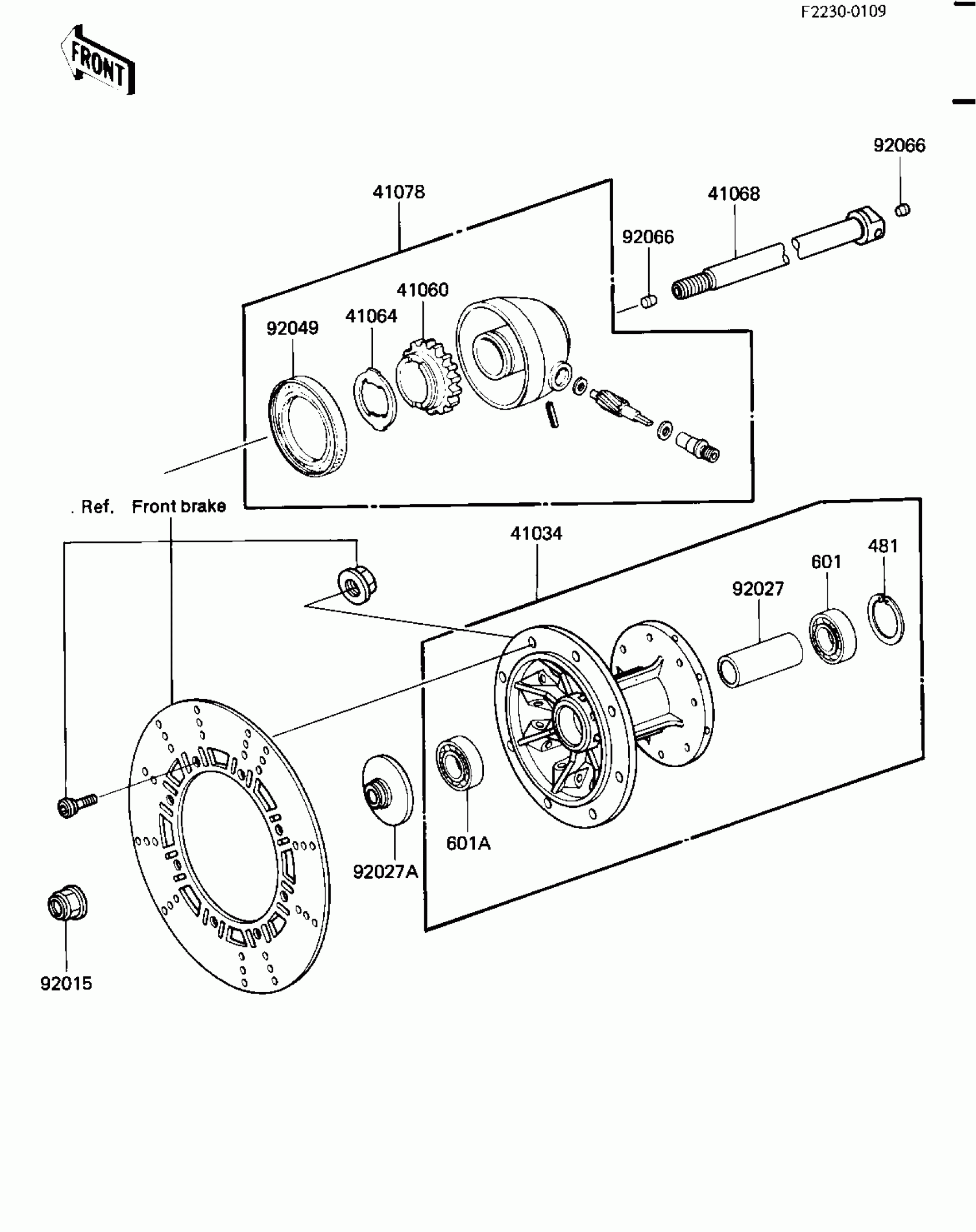

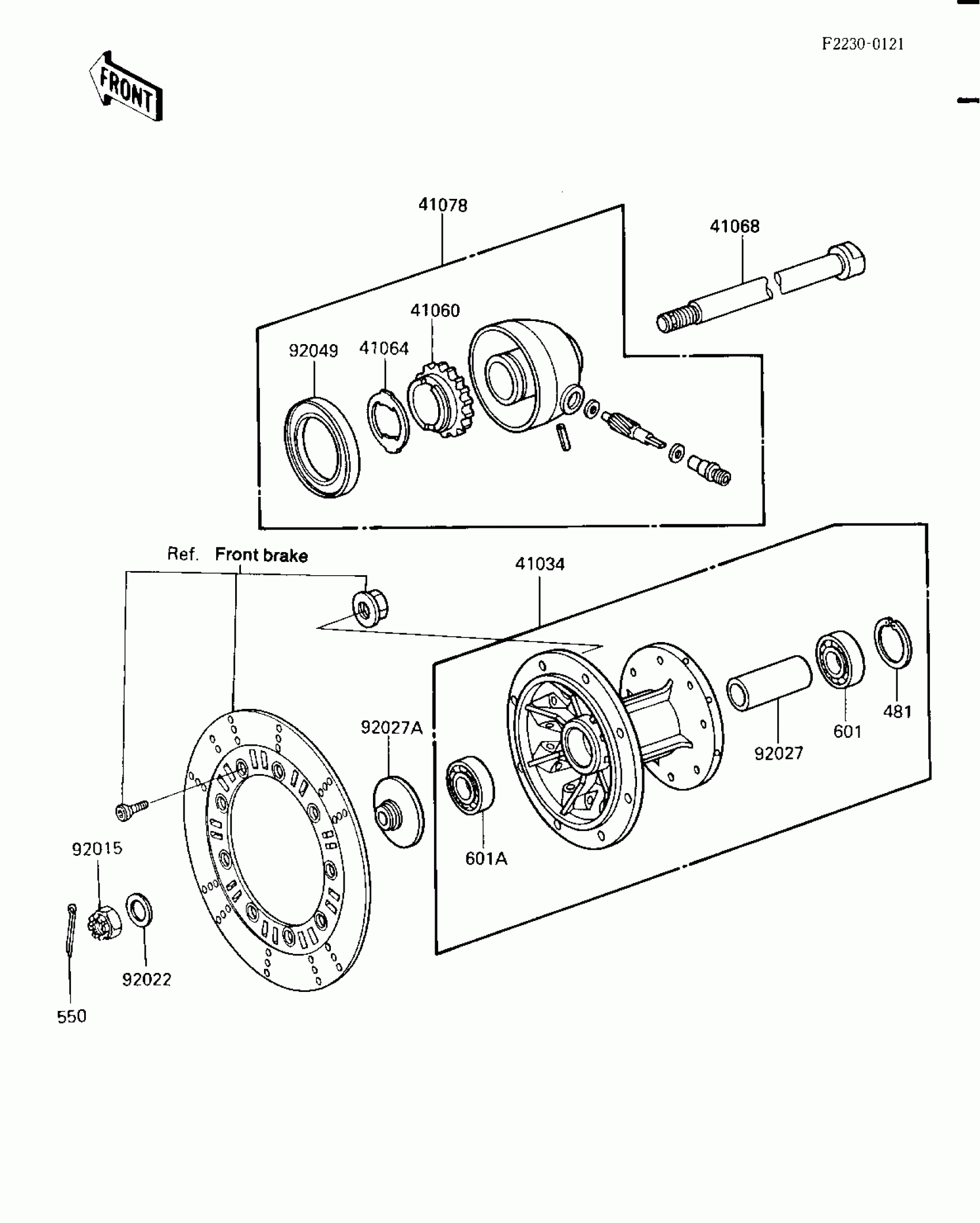

Kawasaki KL600 FRONT HUB Diagram

Description

Price

41034

DRUM-ASSY,FRONT BRAKE

41034-1128

$590.48

41060

GEAR-METER SCREW,24T

41060-1101

$27.08

41064

RECEIVER-SPEEDOMETER

41064-1051

$11.82

41068

AXLE,FR

41068-1185

$74.27

41078

CASE-ASSY-METER GEAR

41078-1051

$104.18

92015

NUT,CASTLE,14MM

42045-020

$9.91

92022

WASHER,15.5X28X2

92022-1550

$4.05

92027

COLLAR,FRONT BRAKE DRUM,L=79

92027-1683

$39.09

92027A

COLLAR

92027-1864

$33.25

92049

SEAL-OIL,METER GEAR CASE

92049-1172

$17.95

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

550

PIN-COTTER,3.0X35

550D3035

$2.81

601

BEARING-BALL,#6202UC3

601B6202U

$20.79

601A

BEARING-BALL,#6203LUC3/2A

601B6203U

$34.24
