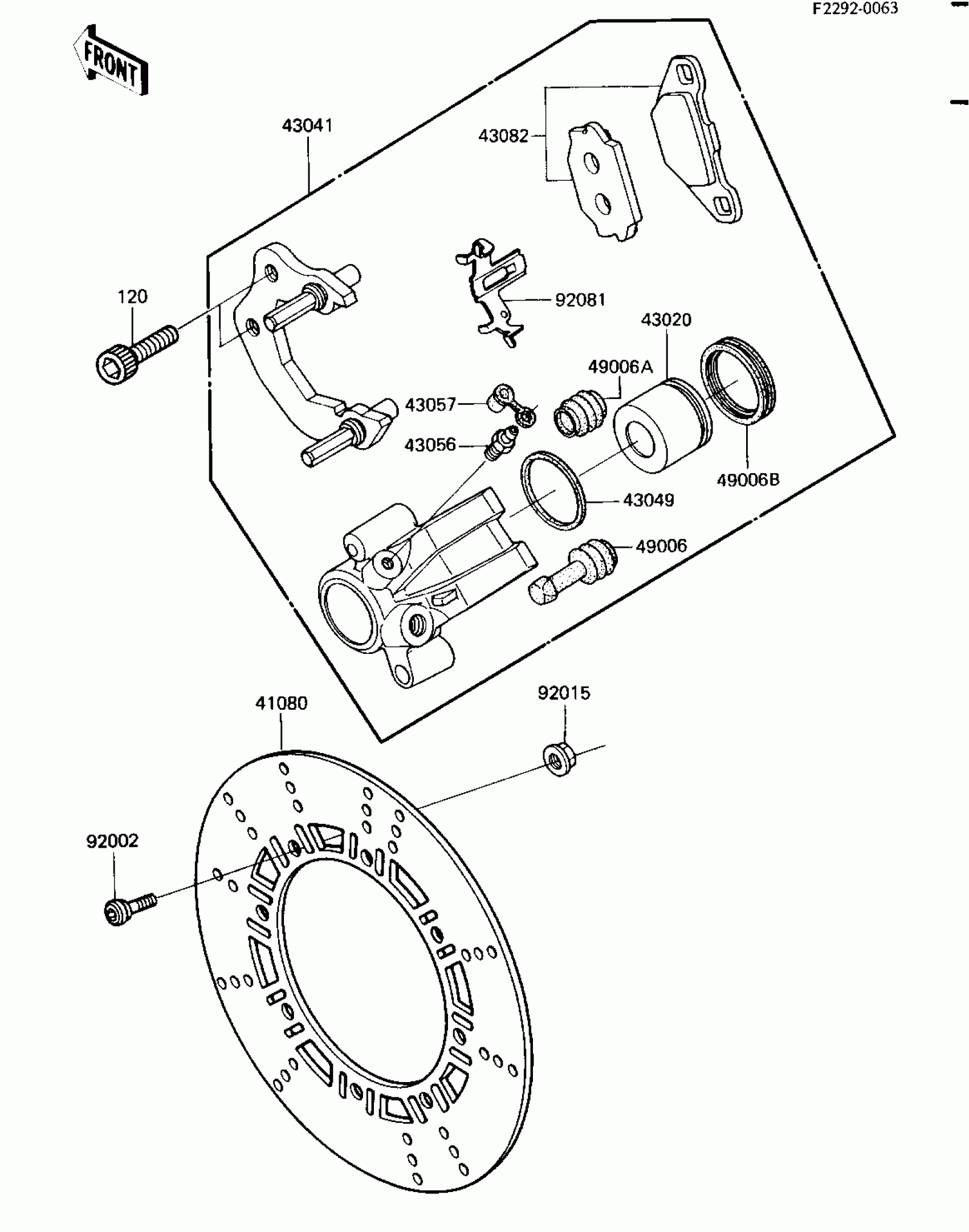

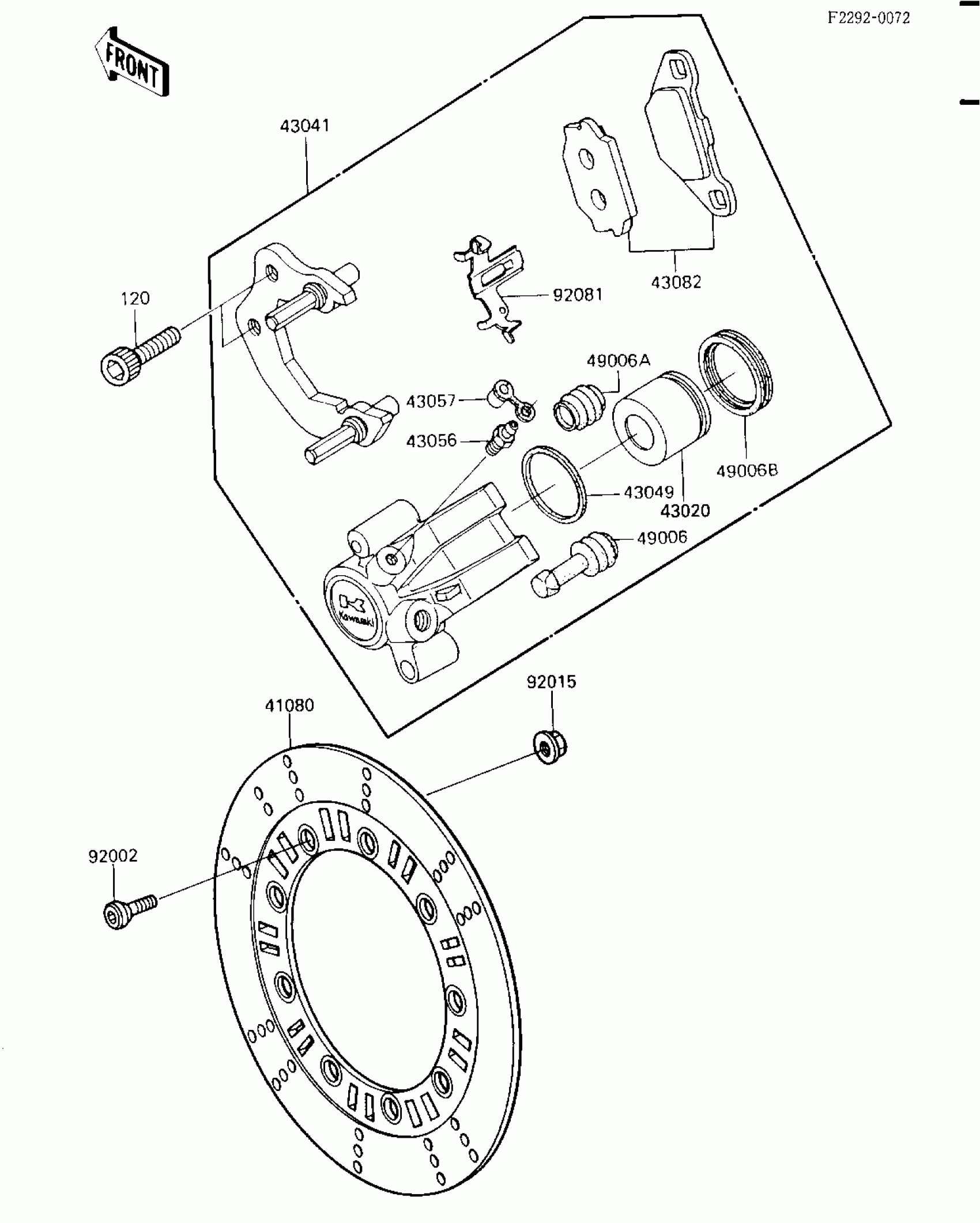

Kawasaki KL600 FRONT BRAKE Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1148

$451.78

43020

PISTON-COMP-BRAKE

43020-1082

$72.80

43041

CALIPER-ASSY,FR,LH

43041-1357

$498.02

43049

PACKING,PISTON SEAL

43049-1026

$13.10

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE,FR

43082-1056

$58.88

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1055

$7.27

49006B

BOOT,PISTON

49006-1091

$17.39

92002

BOLT,DISC PLATE,6X16

92001-1987

$6.45

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92081

SPRING,PAD

92081-1341

$14.76

120

BOLT-SOCKET,8X20

120P0820

$4.15
