Description

Price

11011

FILTER-ASSY-AIR

11010-5071

Unavailable

11011A

CASE-AIR FILTER

11011-1261

Unavailable

11011B

CASE-AIR FILTER

11011-1262

Unavailable

11012

CAP,ELEMENT

11012-1428

Unavailable

11013

ELEMENT-AIR FILTER

11013-1125

$24.79

11044

BRACKET,AIR FILTER

11044-1278

Unavailable

13070

GUIDE

13070-1191

Unavailable

13169

PLATE,ELEMENT

13169-1883

Unavailable

14073

DUCT,CARBURATOR

14073-1202

Unavailable

14073A

DUCT,INTAKE

14073-1221

Unavailable

51044

TUBE-ASSY

51044-1087

$67.41

51044

TUBE-ASSY

51044-1087

$67.41

92059

TUBE,BREATHER

92059-1584

$35.40

92071

GROMMET,AIR FILTER

92071-1114

$24.61

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

92081

SPRING,DUCT

92081-1638

$9.80

92093

SEAL,AIR FILTER

92093-1195

$38.10

130

BOLT-FLANGED,6X12

130G0612

$1.69

220

SCREW-PAN-CROS, 6X14

220C0614

$1.92

703

TUBE-RUBBER

703A07300

$5.79

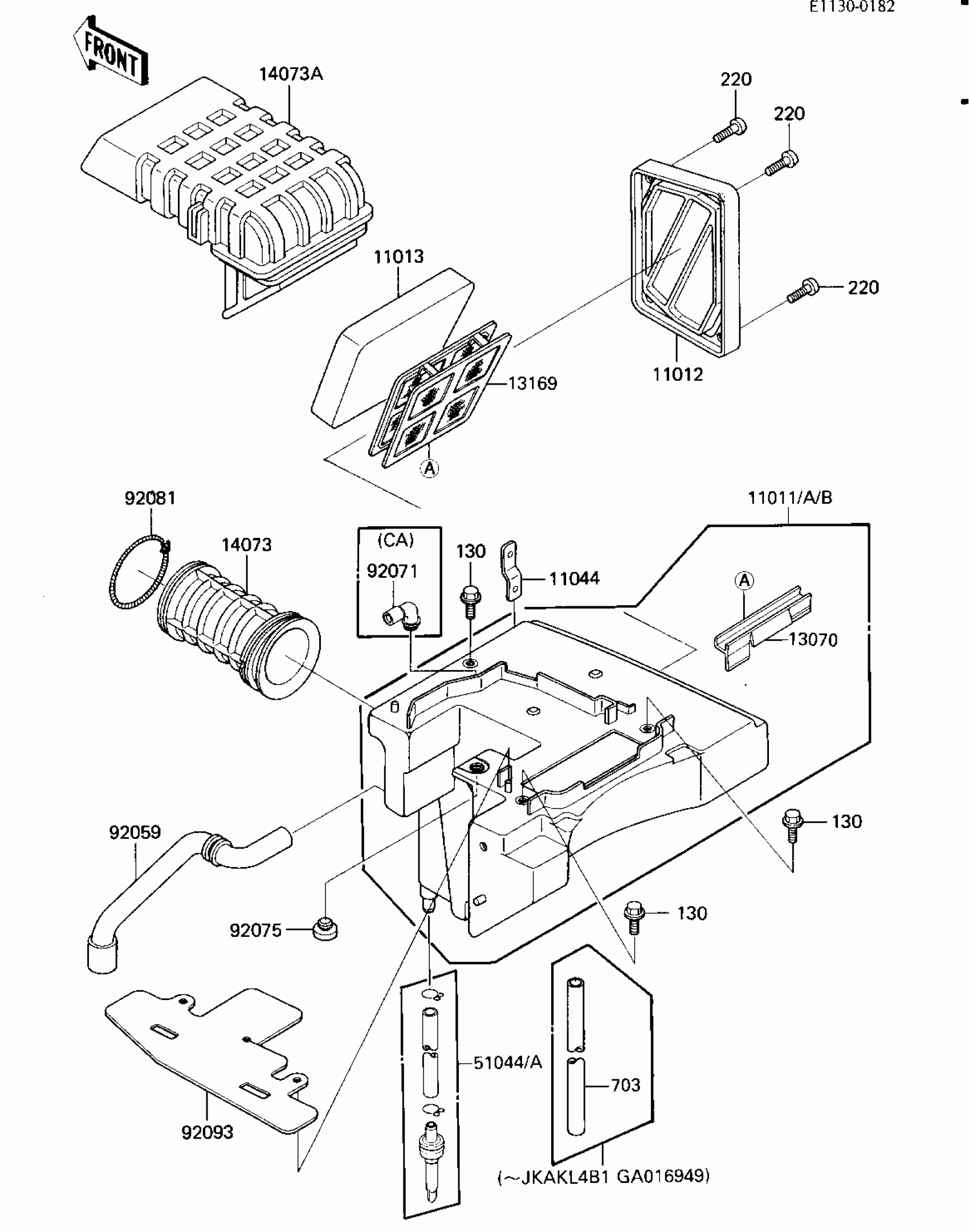

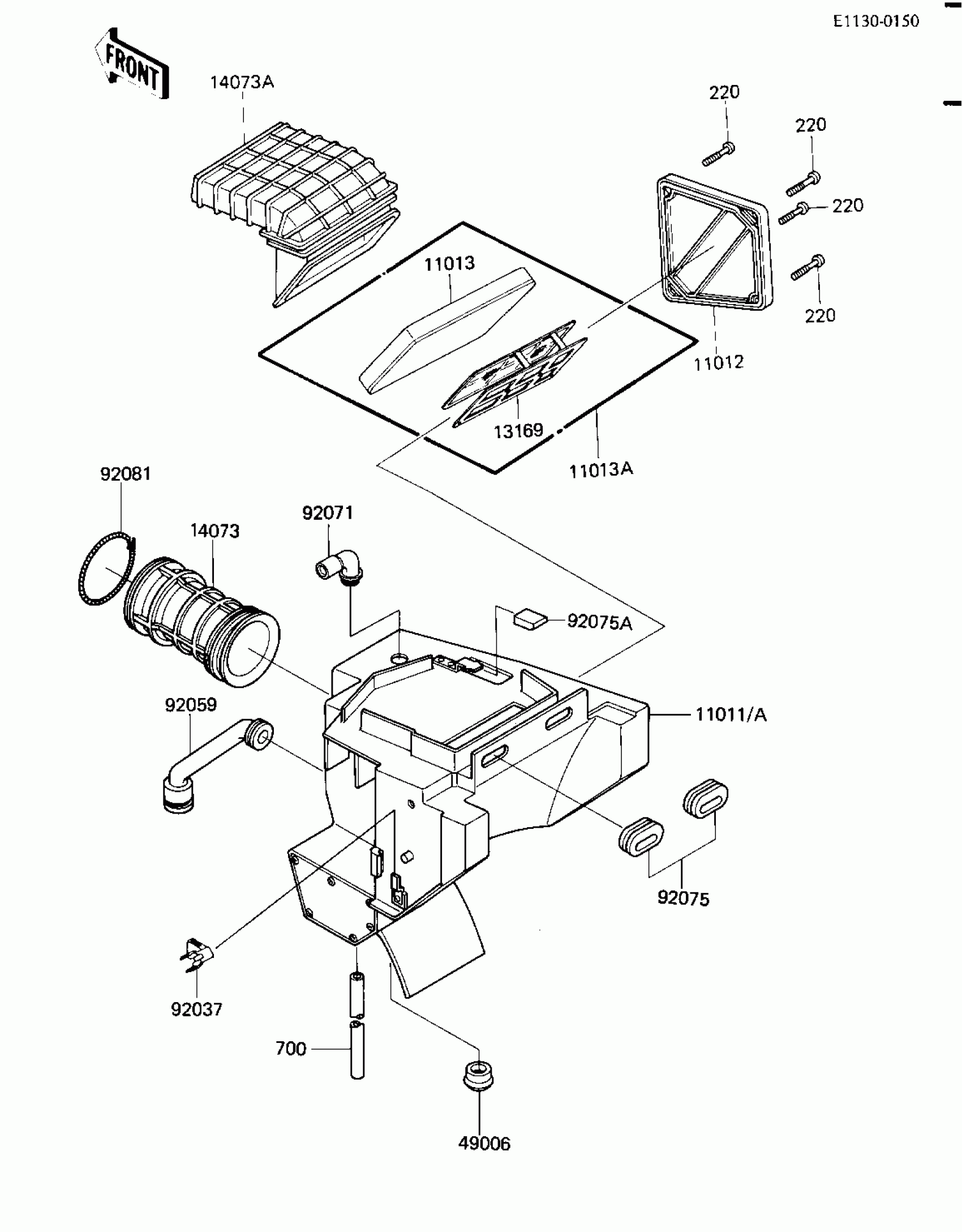

Kawasaki KL600 AIR CLEANER Diagram

FILTER-ASSY-AIR

CASE-AIR FILTER

CASE-AIR FILTER

CAP,ELEMENT

ELEMENT-AIR FILTER

BRACKET,AIR FILTER

GUIDE

PLATE,ELEMENT

DUCT,CARBURATOR

DUCT,INTAKE

TUBE-ASSY

TUBE-ASSY

TUBE,BREATHER

GROMMET,AIR FILTER

DAMPER RUBB MAIN STND

SPRING,DUCT

SEAL,AIR FILTER

BOLT-FLANGED,6X12

SCREW-PAN-CROS, 6X14

TUBE-RUBBER
