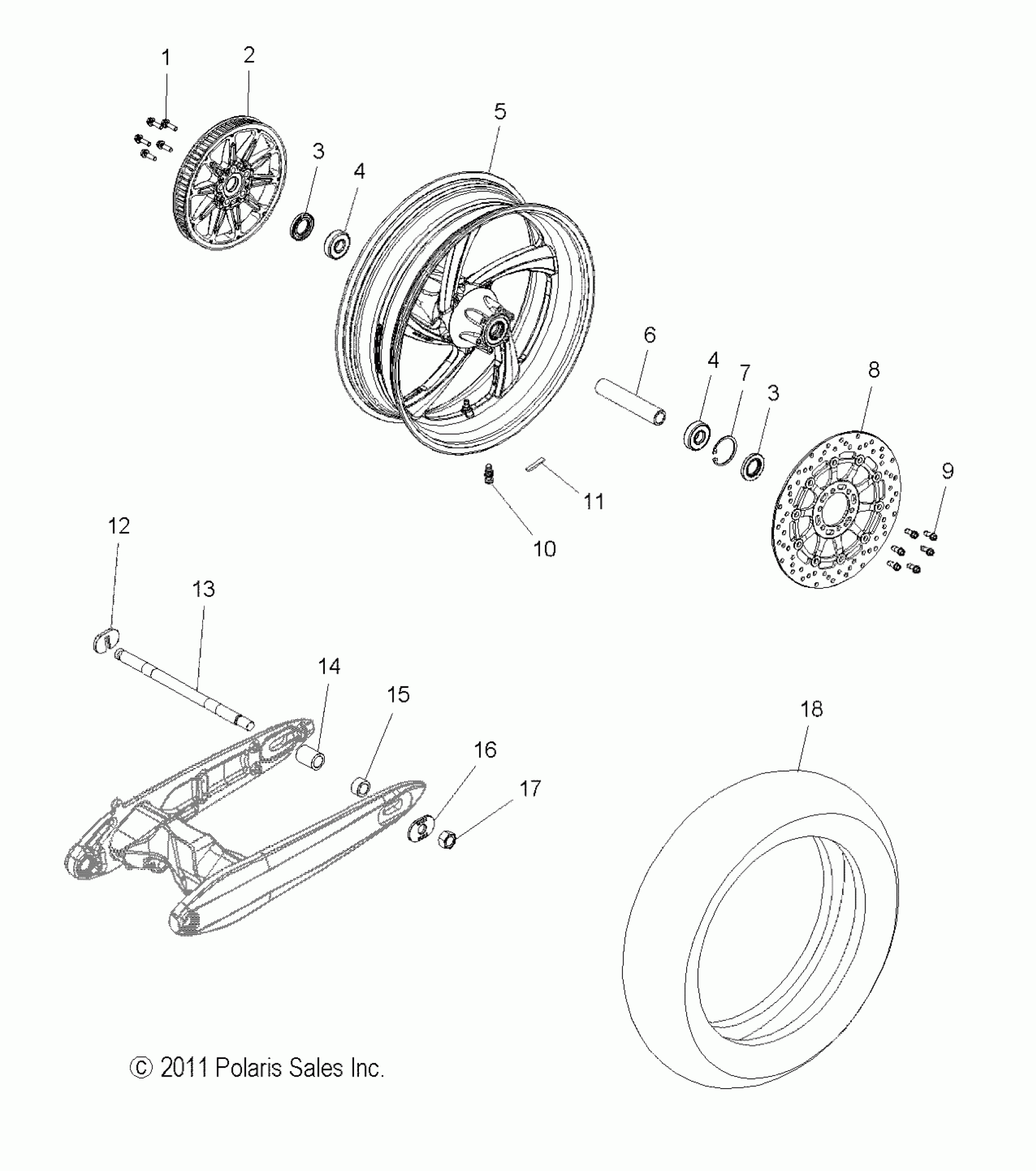

Polaris KINGPIN - V12CB36NP/NPC/NPA WHEELS, REAR - V12CB36NP/NPC/NPA (49VICWHEELRR12KP) Diagram

Description

Price

SCREW

7518878

$4.76

Asm., Sprocket, 70T, Black Engine Wrinkle

1332399-521

$554.99

SEAL

3610094

$31.75

SEAL

3610094

$31.75

BEARING, BALL

3514405

$19.84

BEARING, BALL

3514405

$19.84

ASM., WHEEL, REAR, CAST, BLACK [Incl. 3-7,10,11]

1521153-266

$682.49

SPACER, BEARING, MID

5335682

$61.89

Ring, Retaining

7710526

$10.32

ROTOR, BRAKE, BLACK

1911624-266

$379.99

SCREW

7518661

$1.59

VALVE, RIM

1521312

$11.32

WEIGHT, STEEL, BALANCE, BLACK

1521682

Unavailable

RETAINER-AXLE, REAR

5248599

$27.78

AXLE, REAR

5135743

$67.46

SPACER, WHEEL, REAR, RH

5631581

$11.99

SPACER, BEARING, LH

5631479

$3.97

WASHER, INDICATOR, AXLE

5248452-236

$27.78

NUT, HEX

7547226

$23.81

TIRE, REAR

5413825

$319.99
