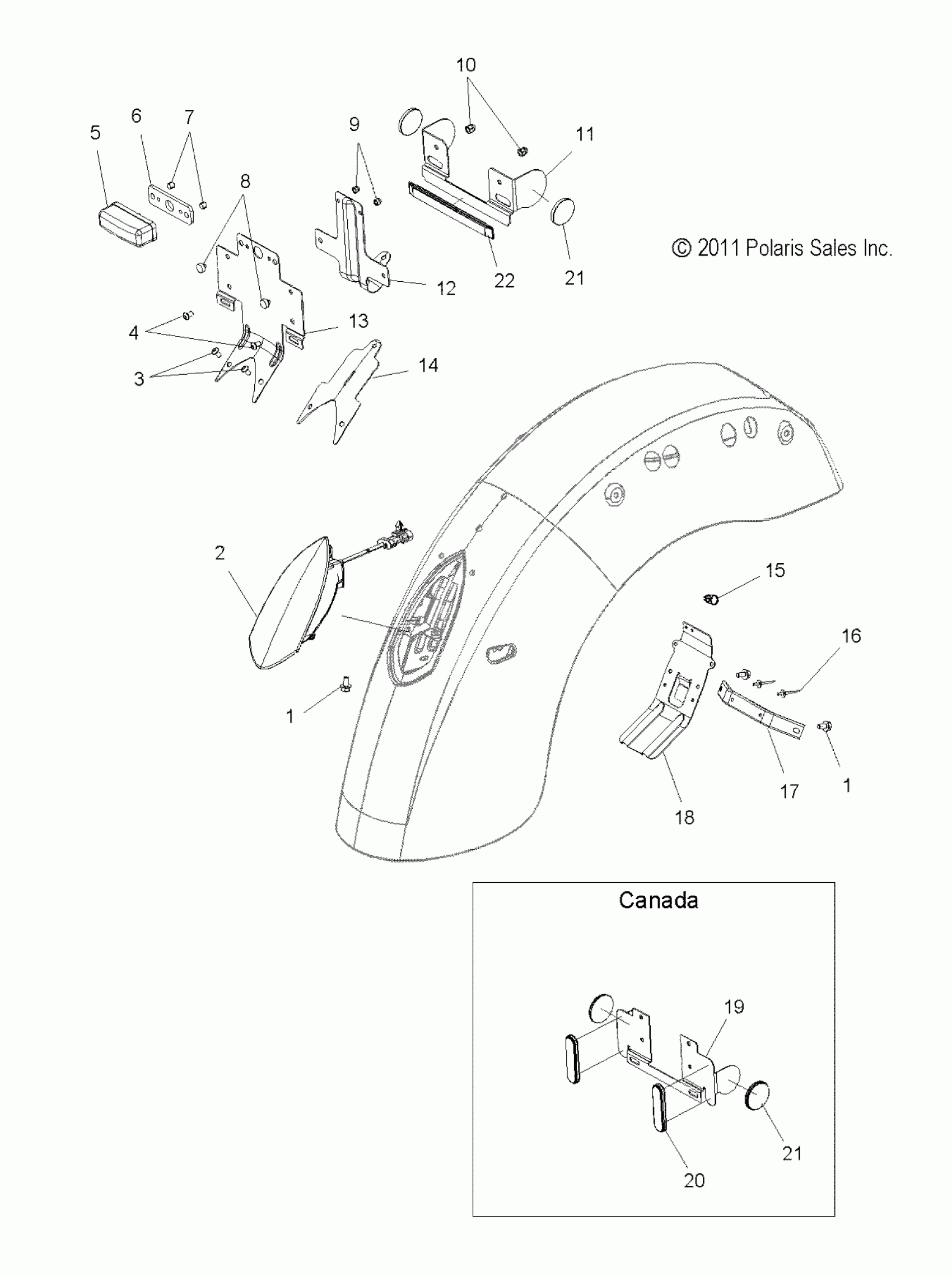

Polaris KINGPIN - V12CB36NP/NPC/NPA ELECTRICAL, TAILLIGHT and LICENSE PLATE LIGHT - V12CB36NP/NPC/NPA (49VICTAILLIGHT12KP) Diagram

#

Description
Price

1

SCREW

7517704

$7.19

1

SCREW

7517704

$7.19

2

Taillight, LED

2410948

Unavailable

3

Screw, Buttonhead

7517494

$7.91

4

SCREW

7517406

Unavailable

5

Light, License Plate

2410407

$40.46

5

BULB, W5W

4011741

Unavailable

6

Spacer, License Plate

5812520

$21.99

7

Spacer

5134403

$3.19

8

BUMPER, GROMMET

5411323

Unavailable

9

Nut, Acorn

7547264

$7.14

10

NUT-ACORN,M6,SS,DIN 1587

7547115

Unavailable

11

Asm., Reflector [Incl. Reflectors, 19]

2632828

$61.90

12

Bracket, License Plate, Front

5247446

$41.27

13

Bracket, License Plate, Rear

5247445

$226.99

14

Pad, License Plate Mount

5812521

Unavailable

15

Dart

5433140

Unavailable

16

Rivet

7081040

$1.49

17

Bracket, Fender, Brace, Black

5247156-266

Unavailable

18

Bracket, Taillight Shield, Black

5248132-266

$61.90

19

Bracket, License Plate, CND, Black

5247468

Unavailable

20

REFLECTOR, RED, OVAL

5434624

Unavailable

21

Reflector, Round, Red

5433921

Unavailable

21

Reflector, Round, Red

5433921

Unavailable

22

ASM., REFLECTOR, RED

2670070

$9.91
