Partiron

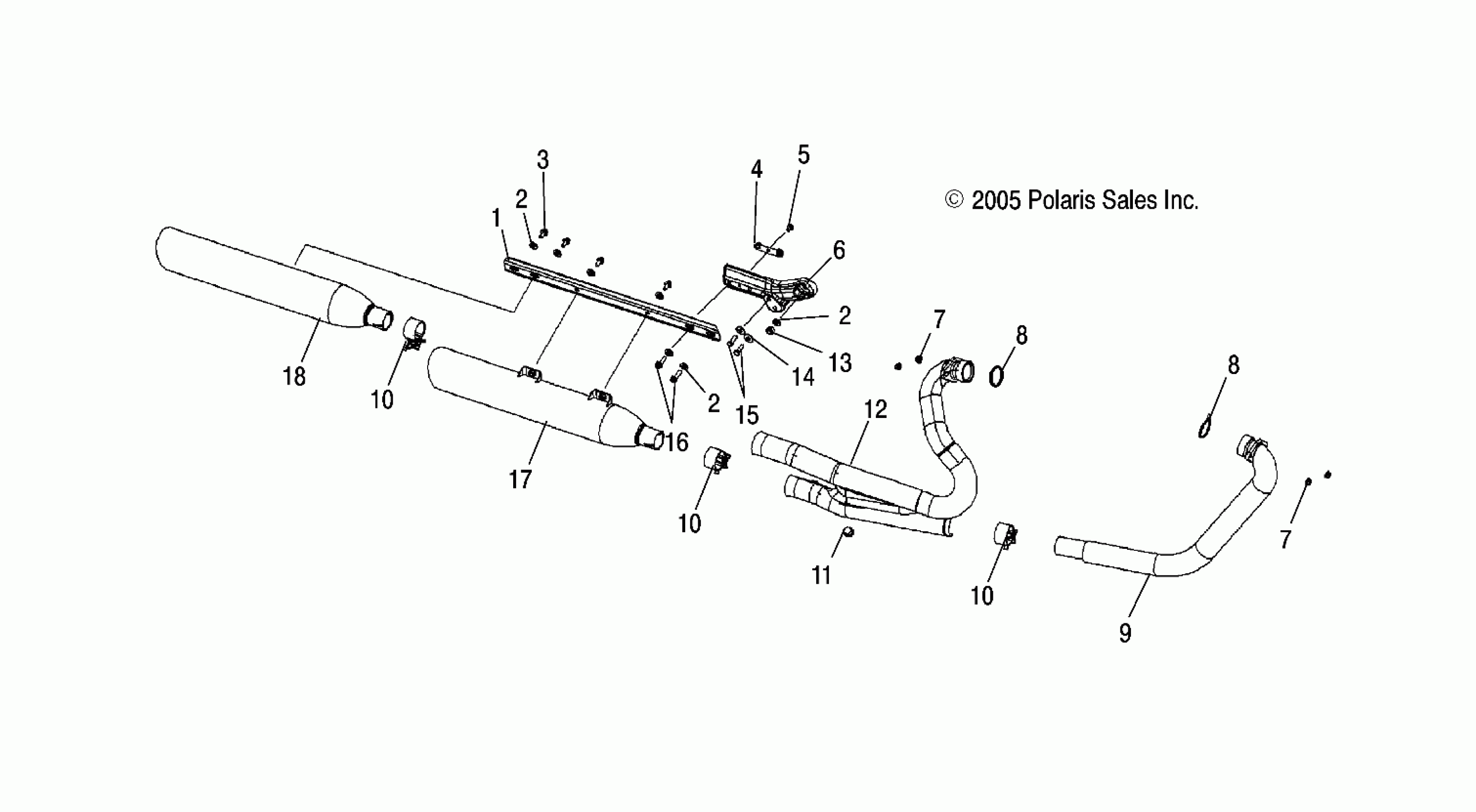

Polaris KINGPIN/TOUR ALL OPTIONS - V07CB26/CD26 ENGINE, EXHAUST SYSTEM - V07CB26/CD26 ALL OPTIONS (49VICEXHAUST07VEGAS) Diagram

#

Description
Price

1

Bracket, Muffler To Muffler, ZNC

5250030-236

$48.56

2

WASHER, FLAT

7556234

$3.19

2

WASHER, FLAT

7556234

$3.19

2

WASHER, FLAT

7556234

$3.19

3

SCREW

7518043

Unavailable

4

PLATE, NUT, ZINC

1015173

Unavailable

5

SCREW

7518393

Unavailable

6

Support, Exhaust

5631652-472

Unavailable

7

NUT

7546805

Unavailable

7

NUT

7546805

Unavailable

8

GASKET

5246008

Unavailable

8

GASKET

5246008

Unavailable

9

Shield, Front,

1261414

$216.49

9

CLAMP, HEAT SHIELD

7080774

Unavailable

9

Asm., Exhaust Headpipe, Front

1261398

$319.99

10

CLAMP

7081179

Unavailable

10

CLAMP

7081179

Unavailable

10

CLAMP

7081179

Unavailable

11

Bolt

7518295

$30.54

12

Shield, Collector

1261418

$245.70

12

Shield, Mid Rear

1261394

$180.16

12

CLAMP

7080774

Unavailable

12

Shield Rear Cyl., Lower

1261417

Unavailable

12

Shield, Rear Cyl., Upper

1261416

$147.62

12

Asm., Header Pipes, Rear

1261397

$140.87

12

Header Pipe w/ Catalyst

1261547

$629.99

13

NUT, NYLOK

7547268

$1.49

14

WASHER, FLAT

7556352

Unavailable

15

SCREW

7518443

Unavailable

16

Screw

7518391

$4.75

17

Asm., Muffler, Front

1261640

Unavailable

18

Asm., Muffler, Rear

1261641

$539.99
