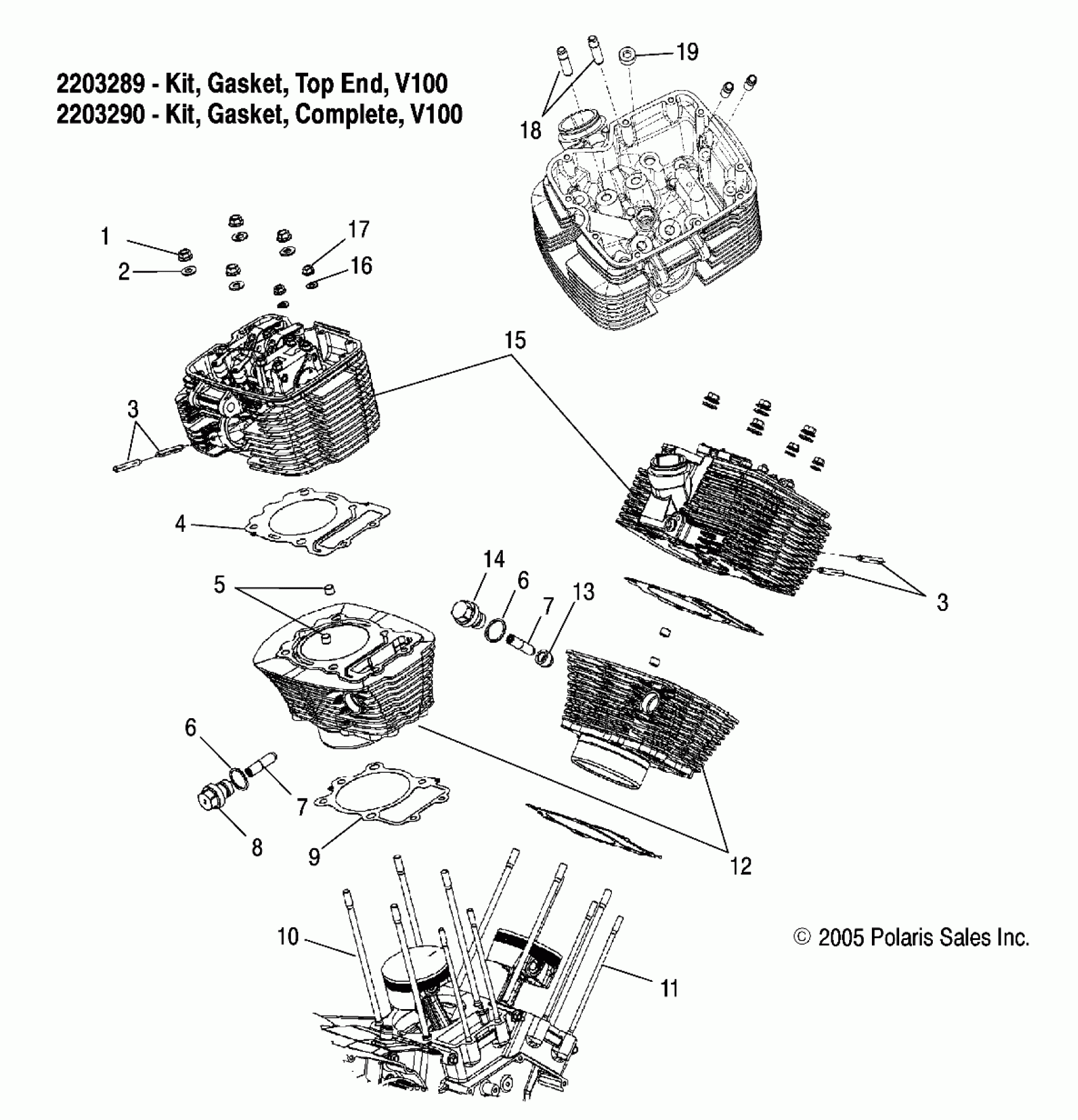

Polaris KINGPIN/TOUR ALL OPTIONS - V07CB26/CD26 ENGINE, CYLINDER and HEAD - V07CB26/CD26 ALL OPTIONS (4999203359920335C12) Diagram

#

Description
Price

1

NUT

7547017

$5.59

2

WASHER, FLAT

7555986

$10.39

3

STUD, EXHAUST MOUNT

5132040

$5.59

3

STUD, EXHAUST MOUNT

5132040

$5.59

4

GASKET, HEAD

5249360

Unavailable

5

DOWEL

7663008

$5.27

6

WASHER, SEALING

7556310

Unavailable

6

WASHER, SEALING

7556310

Unavailable

7

TENSIONER, HYDRAULIC

3021517

Unavailable

7

TENSIONER, HYDRAULIC

3021517

Unavailable

8

Plug, Screw, Rear

3021796

$48.56

9

Gasket, Base

5244365

$39.68

10

STUD, CYLINDER MOUNTING

5134314

Unavailable

11

STUD, CYLINDER MOUNTING

5134315

Unavailable

12

CYLINDER, BLACK

5138800

Unavailable

12

Cylinder, Silver

5134497

$764.99

13

SLEEVE, DAMPER, CAM DRIVE

3021668

Unavailable

14

Plug, Screw, Front

3021797

$48.56

15

Head, Cylinder, Front, Silver [Incl. 18,19]

3021775

Unavailable

15

Head, Cylinder, Rear, Black [Incl. 18,19]

3021772

Unavailable

15

Head, Cylinder, Front, Black [Incl. 18,19]

3021771

Unavailable

15

Head, Cylinder, Rear, Silver [Incl. 18,19]

3021776

$959.99

16

WASHER, FLAT

7556043

Unavailable

17

NUT

7547014

$7.84

18

Guide, Valve

3021154

Unavailable

19

Plug, Pipe

7052315

$5.75
