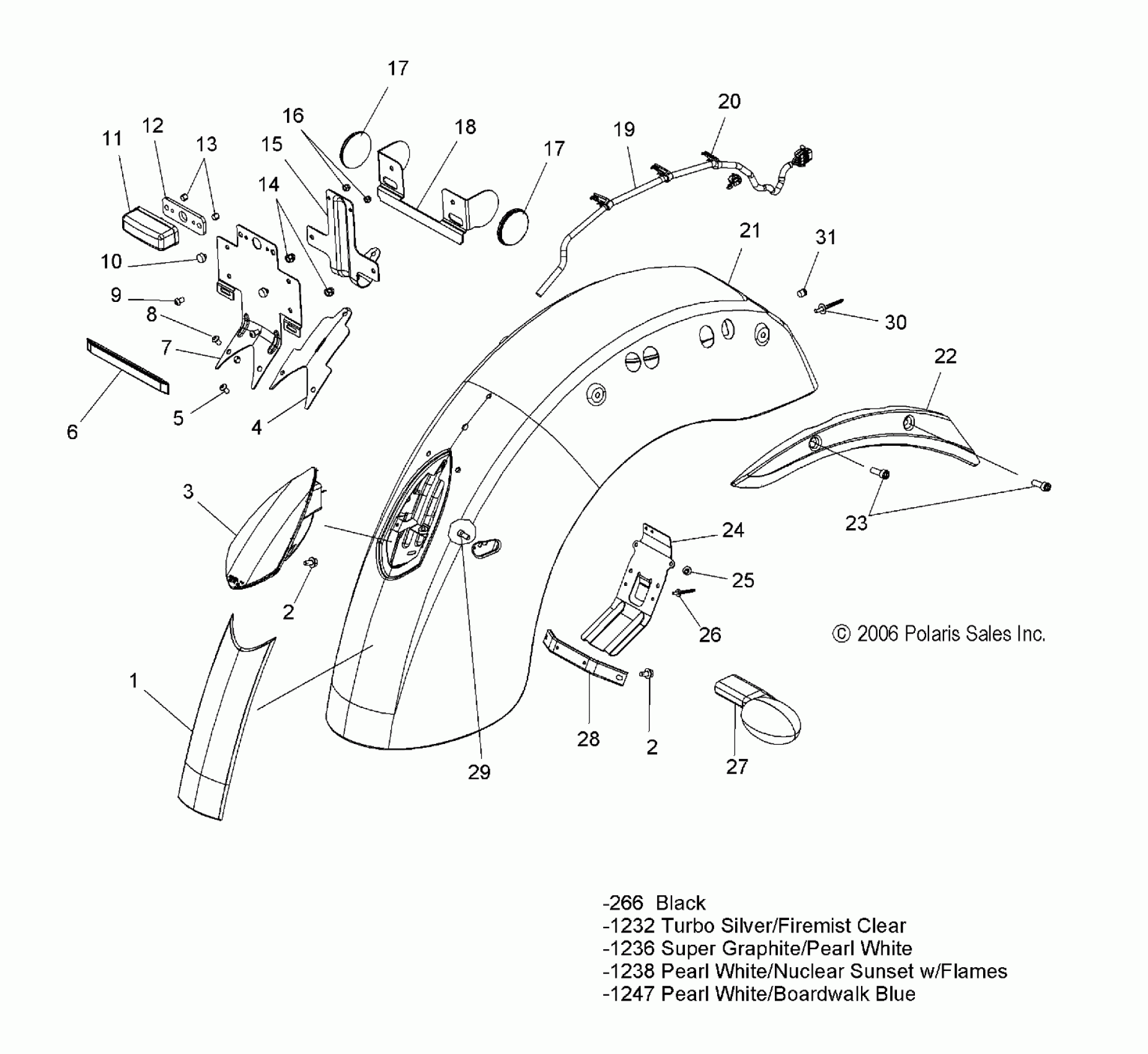

Polaris KINGPIN/TOUR ALL OPTIONS - V07CB26/CD26 BODY, FENDER, REAR and TAILLIGHT - V07CB26/CD26 ALL OPTIONS (49VICFENDERRR07KING) Diagram

#

Description
Price

1

Trim, Fender, Rear

5247016

$79.98

2

SCREW

7517704

$7.84

2

SCREW

7517704

$7.84

3

Taillight, LED

2410471

Unavailable

4

Pad, License Plate Mount

5812521

Unavailable

5

NUT, NYLOK

7547106

$3.48

6

Reflector, Red

2670070

$9.84

7

Bracket, License Plate

5247445

$226.99

8

Screw, Buttonhead

7517494

$8.99

9

SCREW

7517406

$4.76

10

BUMPER, GROMMET

5411323

$3.17

11

Bulb, Replacement

4030015

$4.03

11

Light, License Plate

2410407

$40.46

12

Spacer, License Plate

5812520

$24.99

13

Spacer

5134403

$3.17

14

NUT-ACORN,M6,SS,DIN 1587

7547115

$9.52

15

Bracket, License Plate

5247446

$41.27

16

Nut, Acorn

7547264

$7.14

17

Reflector, Round, Red

5433921

$32.37

17

Reflector, Round, Red

5433921

$32.37

18

Asm., Reflector [Incl. 6,17]

2632828

$61.90

19

Harness, Rear

2410473

Unavailable

20

CLIP, ELECTRICAL

7080737

$4.76

21

Asm., Fender, Rear

1014214-266

$1,054.99

21

Asm., Fender, Rear

1014214-1236

$1,029.99

21

Asm., Fender, Rear

1014214-1247

$1,019.99

21

Asm., Fender, Rear

1014214-1238

$1,019.99

21

Asm., Fender, Rear

1014214-1232

$1,029.99

22

Cover, Rail, LH

5631841-156

Unavailable

22

Cover, Rail, RH

5631842-156

$170.63

23

SCREW

7518084

$7.14

24

Bracket, Taillight Shield

5248132-067

Unavailable

25

Dart

5433140

Unavailable

26

Rivet

7081040

$1.19

27

Bulb, Single Filament

4010742

$10.63

27

Signal, Rear, LH [Incl. 29]

2410404

Unavailable

27

Signal, Rear, RH [Incl. 29]

2410405

Unavailable

28

Bracket, Fender, Brace

5247156-067

$15.56

29

SCREW

7517405

$10.32

30

Rivet

7081040

$1.19

31

PLUG, FENDER, REAR

7671178

$2.02
