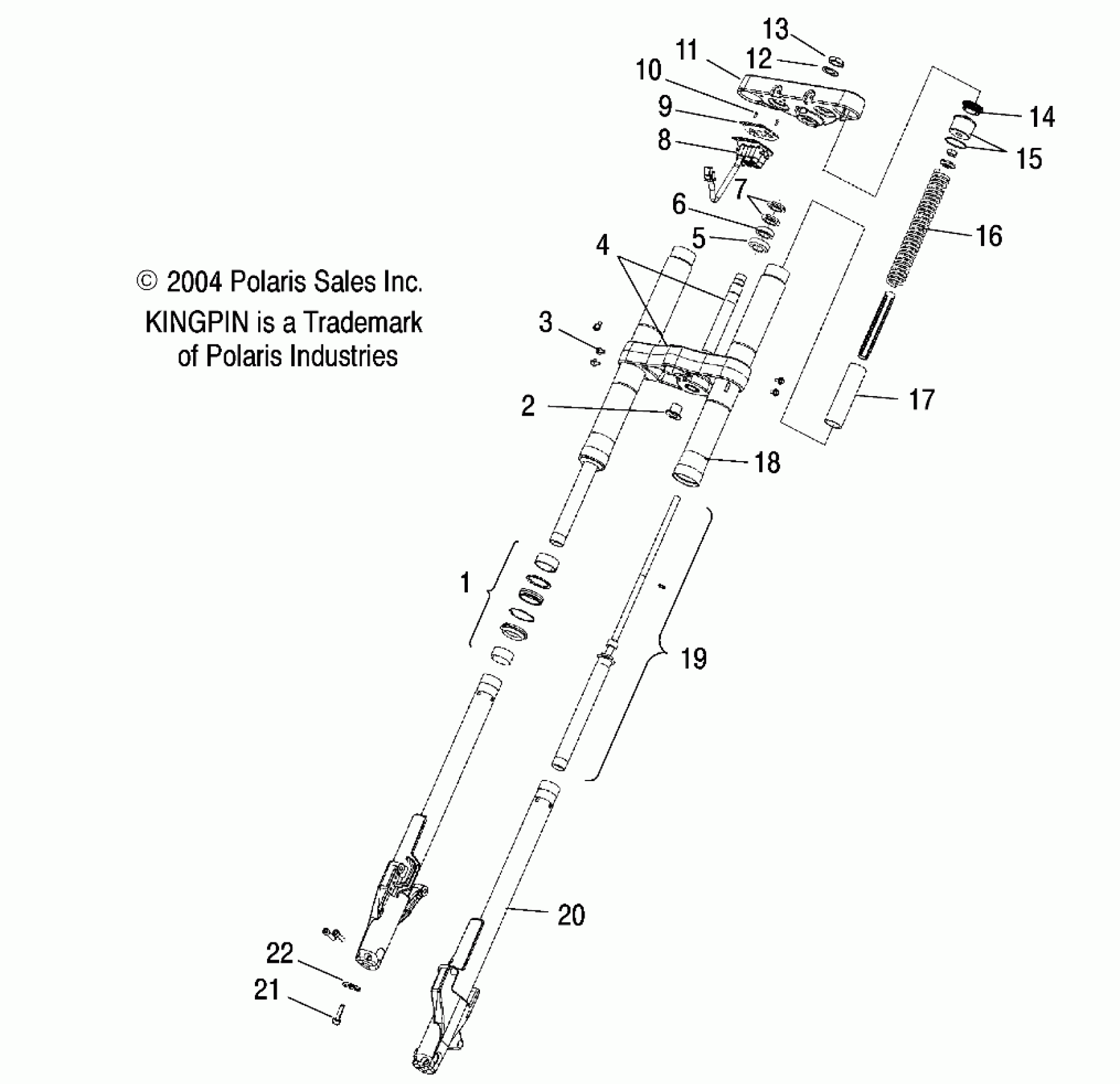

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 SUSPENSION, FRONT FORKS and CLAMP ASM. - V05CB16/DC16/ALL OPTIONS (4996259625A12) Diagram

#

Description
Price

1

Kit, Bearing Seal

2202686

Unavailable

2

CAP, STEERING STEM

5412473

Unavailable

3

SCREW

7517361

$23.99

4

Asm., Bracket, Lower, Brushed

1823531-411

$389.99

4

Asm., Bracket, Lower, Chrome

1823531-156

$652.37

5

BEARING, NEEDLE

3514416

Unavailable

6

Bearing, Needle

3514417

$31.75

7

NUT, STEERING HEAD

5134094

Unavailable

8

Housing, Indicator Light, Neut/Hi/Eng. (If built after 2/01/05)

5435799

$589.99

8

Housing, Indicator Light, Oil/Turn/Fuel (If built after 2/01/05)

5435798

$589.99

8

Bulb, Wedge Base

4010760

$6.99

8

Harness, Indicator Light [Incl. Bulbs](If built after 2/01/05)

2410493

$589.99

8

Harness, Indicator Light [Incl. Bulbs](If built before 2/01/05)

2461094

Unavailable

8

Housing, Indicator Light, Oil/Turn/Fuel (If built before 2/01/05)

5435209

$18.10

8

Housing, Indicator Light, Neut/Hi/Eng. (If built before 2/01/05)

5435210

$18.10

9

Bezel

5434683

Unavailable

10

SCREW

7518144

Unavailable

11

Asm., Clamp, Upper, Brushed

1821530-411

$319.99

11

Asm., Clamp, Upper, Chrome

1821530-156

$639.99

12

WASHER

7556246

Unavailable

13

Nut, Top, Triple Clamp

5134148

Unavailable

14

CAP

5132481-156

Unavailable

15

O-Ring

5412560

Unavailable

15

Kit, Cap, Fork Tube [Incl. O-Ring]

2202703

$73.81

16

Spring, Fork

7042330

$102.38

17

Spacer

5134364

$11.11

18

Tube, Outer

5134362

$494.99

19

Kit, Cartridge Hardware

2202685

$76.81

19

Kit, Cartridge Asm.

2202684

$216.99

19

CARTRIDGE

-------

Unavailable

19

RETAINER, SPRING

-------

Unavailable

19

NUT, JAM

-------

Unavailable

19

GUIDE, SPRING

-------

Unavailable

19

Bolt

-------

Unavailable

19

WASHER

-------

Unavailable

19

CLIP, RETAINING

-------

Unavailable

20

Kit, Inner Tube, LH, Chrome [Incl. 3]

2202682-156

Unavailable

20

Kit, Inner Tube, LH, Brushed [Alum][Incl. 3]

2202682-411

Unavailable

20

Kit, Inner Tube, RH, Brushed [Alum][Incl. 3]

2202683-411

Unavailable

20

Kit, Inner Tube, RH, Chrome [Incl. 3]

2202683-156

Unavailable

21

SCREW

7518101

Unavailable

22

Washer, Oil Seal

3610069

$23.81
