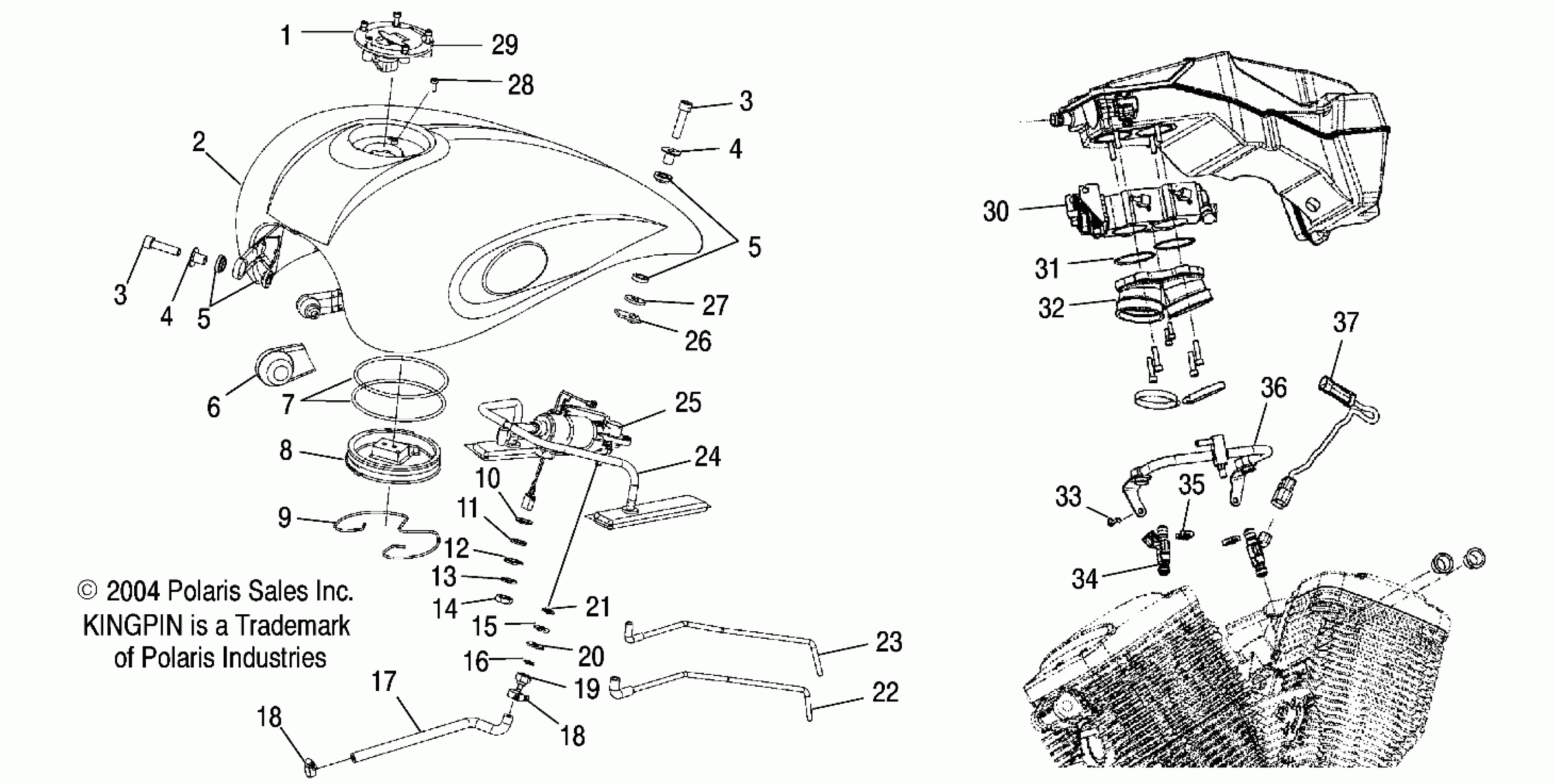

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V05CB16/DC16/ALL OPTIONS (4996259625A13) Diagram

#

Description
Price

1

SCREW

7518086

$5.56

2

Tank, Fuel, No Spine, Black

1014755-266

Unavailable

2

Tank, Fuel, No Spine, Blue

1014755-341

$561.51

2

Tank, Fuel, No Spine, Red

1014755-342

$626.98

2

Tank, Fuel, No Spine, Black/Blue

1014755-1180

$1,444.99

2

Tank, Fuel, No Spine, Black/Silver

1014755-1192

Unavailable

2

Tank, Fuel, No Spine, White/Silver

1014755-1193

Unavailable

2

Tank, Fuel, No Spine, White/Silver/Flame

1014755-1194

Unavailable

2

Tank, Fuel, No Spine, Black/Flame

1014755-1195

Unavailable

2

Tank, Fuel, No Spine, Purple Haze

1014755-1201

Unavailable

3

SCREW

7517525

$4.35

3

SCREW

7517525

$4.35

4

Bushing

5134160

$10.99

4

Bushing

5134160

$10.99

5

Bushing, Flange

5412480

$3.17

5

Bushing, Flange

5412480

$3.17

6

COVER, MOUNT, LH

5412414

$32.37

6

COVER, MOUNT, RH

5412415

$32.37

7

O-Ring

5412071

Unavailable

8

Plug

5133613

Unavailable

9

Ring, Retaining

7710515

Unavailable

10

Grommet

5412096

$12.70

11

Grommet

5412095

Unavailable

12

Washer

7556193

Unavailable

13

Washer

7556192

$4.76

14

Nut

7547186

$4.76

15

Grommet

5412093

Unavailable

16

O-Ring

5411869

Unavailable

17

Hose

5412332

Unavailable

18

CLAMP, HOSE

7081151

$7.14

18

CLAMP, HOSE

7081151

$7.14

19

Fitting

2520251

Unavailable

20

Washer

7556131

$3.17

21

Grommet

5412094

$12.70

22

Line

5434782

$83.33

23

Line, Water Vent

5434781

Unavailable

24

Asm., Fuel Line, Filter

2520322

Unavailable

25

Pump, Fuel

2520394

Unavailable

25

Thermistor, Fuel Pump [Level Sensor]

2520678

Unavailable

26

U-NUT

7547233

$10.32

27

Washer, Flat

7556260

$10.32

28

SCREW

7517845

$5.56

29

ASM., IGNITION SWITCH/FUEL CAP [See Ignition Asm. Pg. C8, Ref. 5]

----

Unavailable

30

Asm., Throttle Body

1253363

Unavailable

30

Cap, Fitting

5411886

Unavailable

31

O-Ring

5412259

$1.59

32

Adapter, Throttle Body

1253335

$159.99

33

SCREW

7517405

$10.32

34

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.90

34

Injector, Fuel

1253405

Unavailable

35

Clip, Injector Clocking

7670129

Unavailable

36

Asm., Fuel Rail

2520207

Unavailable

37

HARNESS, JUMPER, FUEL INJECTOR [See Electrical Pg. C7, Ref. 23]

----

Unavailable
