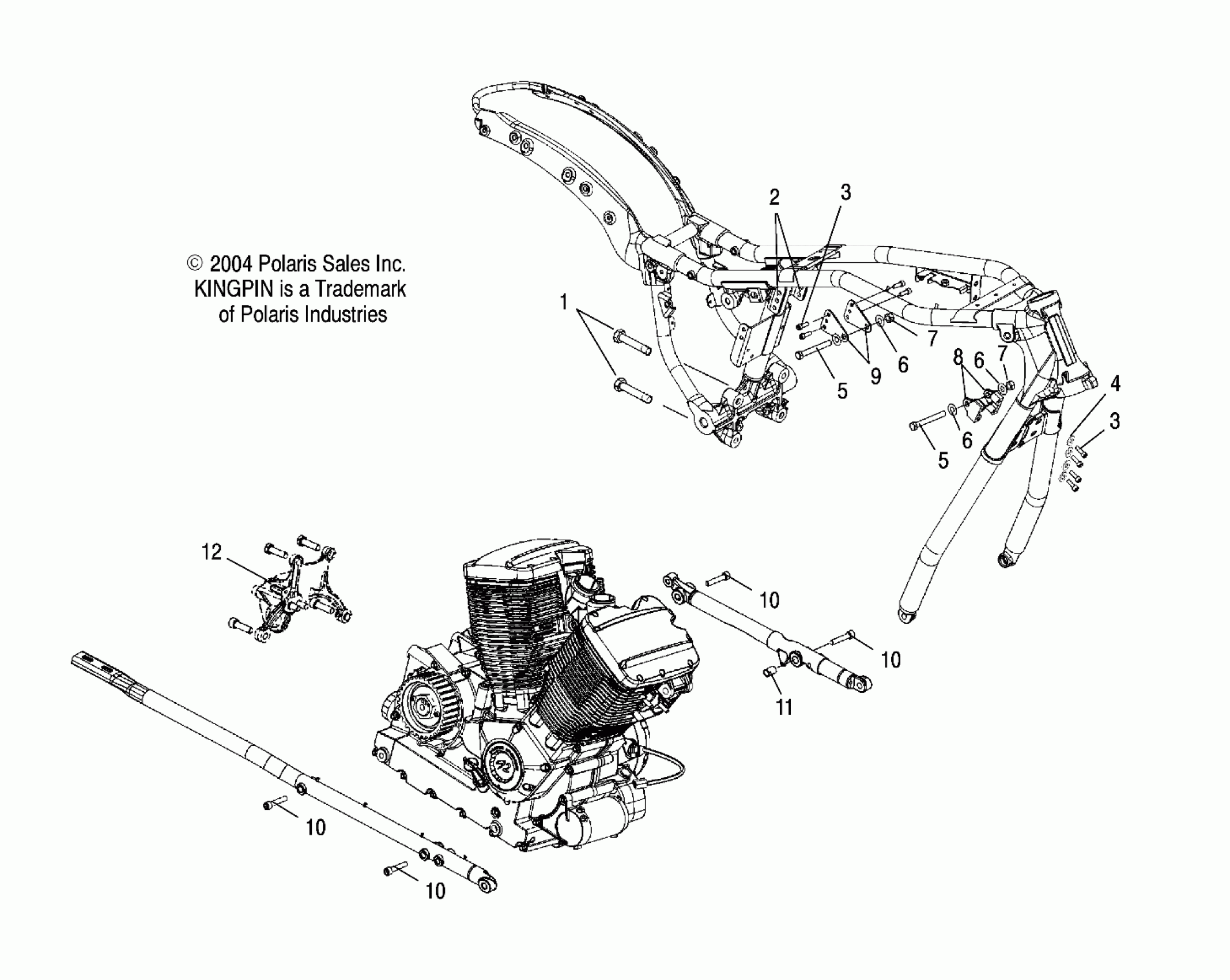

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 ENGINE, MOUNTING - V05CB16/DC16/ALL OPTIONS (4996259625C12) Diagram

#

Description
Price

1

SCREW

7517365

Unavailable

2

PLATE, NUT

1013889

Unavailable

3

SCREW

7518053

Unavailable

3

SCREW

7518053

Unavailable

4

WASHER, FLAT

7556305

$1.49

5

SCREW

7518125

$11.19

5

SCREW

7518125

$11.19

6

WASHER, FLAT

7556287

$7.19

6

WASHER, FLAT

7556287

$7.19

6

WASHER, FLAT

7556287

$7.19

7

NUT

7547232

$23.99

7

NUT

7547232

$23.99

8

Mount, Engine, Front, Silver

5133599-236

$65.87

8

Mount, Engine, Front, Black

5133599-408

$65.87

9

Bracket, Engine Mount, Rear, Black

5246366-408

Unavailable

9

Bracket, Engine Mount, Rear, Silver

5246366-236

$2.86

10

SCREW

7518099

Unavailable

10

SCREW

7518099

Unavailable

10

SCREW

7518099

Unavailable

10

SCREW

7518099

Unavailable

11

DOWEL

5133693

Unavailable

12

MOUNT, MINOR PIVOT [SEE SWING ARM AND REAR SUSPENSION PG. A4 FOR DETAILS]

-------

Unavailable
