- KINGPIN/NESS ALL OPTIONS - V05CB16/DC16
ENGINE, EXHAUST SYSTEM - V05CB16/DC16/ALL OPTIONS (4996259625C10)

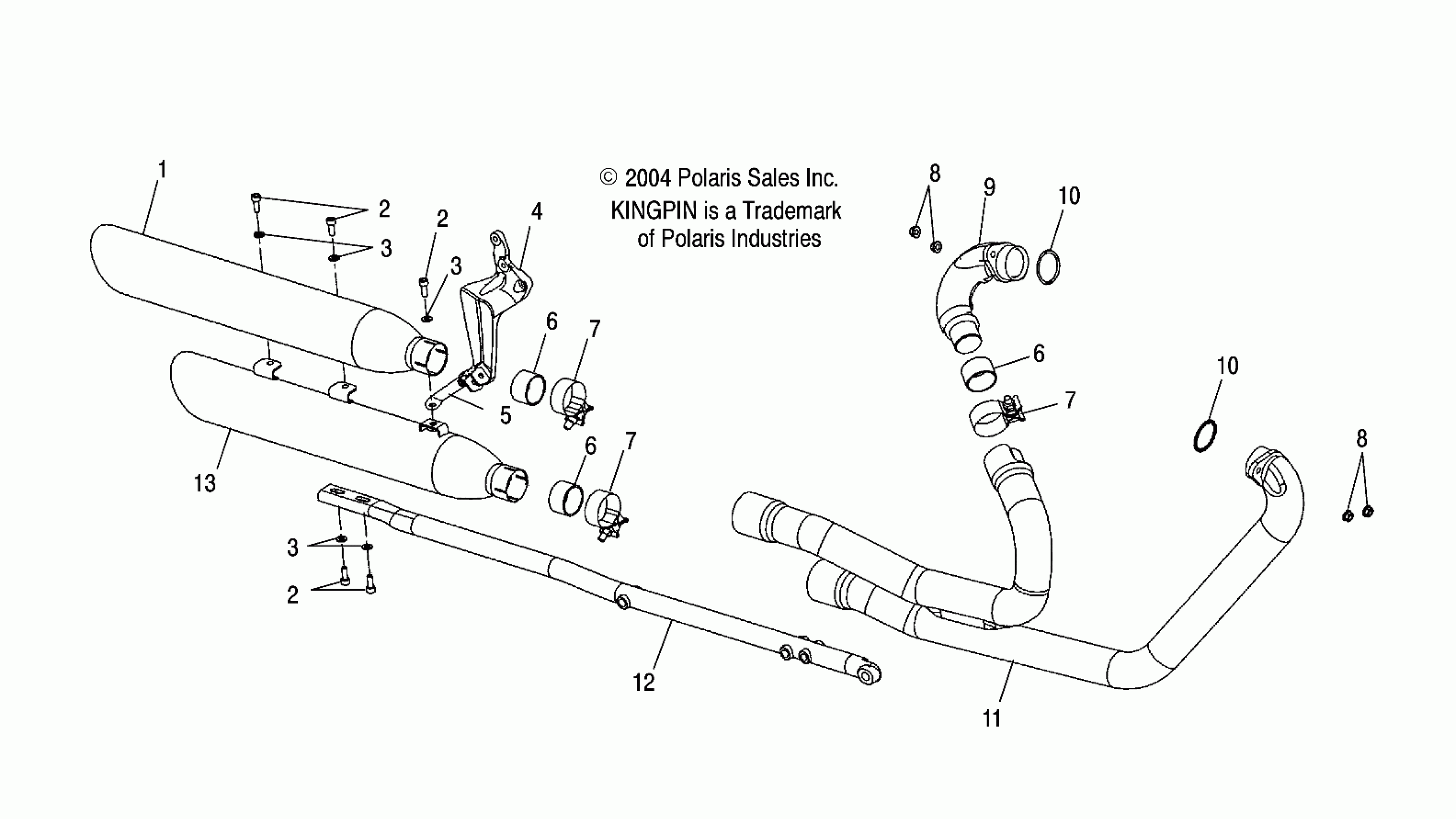

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 ENGINE, EXHAUST SYSTEM - V05CB16/DC16/ALL OPTIONS (4996259625C10) Diagram
#
Description
Price
1
Asm., Muffler, Rear, 49 States
1261291
$969.99
1
Asm., Muffler, Rear, California
1261378
$969.99
2
SCREW
7517523
Unavailable
2
SCREW
7517523
Unavailable
2
SCREW
7517523
Unavailable
3
Washer, Flat
7556245
$4.79
3
Washer, Flat
7556245
$4.79
3
Washer, Flat
7556245
$4.79
4
Footpeg, Passenger, Silver, RH
1014127-385
$182.54
5
Bracket, Exhaust, Upper
5246787-236
$23.02
6
Gasket, Exhaust
5811770
Unavailable
6
Gasket, Exhaust
5811770
Unavailable
6
Gasket, Exhaust
5811770
Unavailable
7
Clamp, Muffler
7081028
Unavailable
7
Clamp, Muffler
7081028
Unavailable
7
Clamp, Muffler
7081028
Unavailable
8
NUT
7546805
Unavailable
8
NUT
7546805
Unavailable
9
CLAMP, HEAT SHIELD
7080774
Unavailable
9
Manifold, Exhaust, Rear
1261087
$163.49
9
Shield, Heat, U-Tube
1261260
$188.10
9
Asm., U-Tube
1261328
$155.56
10
GASKET, EXHAUST SEALING
5246008
Unavailable
10
GASKET, EXHAUST SEALING
5246008
Unavailable
11
CLAMP, HEAT SHIELD
7080774
Unavailable
11
Shield, Exhaust, Rear
1261105
$237.30
11
Shield, Exhaust, Front
1261095
$189.43
11
Asm., Header Pipe
1261323
Unavailable
11
Pipe, Header
1261324
Unavailable
12
CRADLE, RH [SEE MAIN FRAME PG.A3, REF. 10]
-------
Unavailable
13
Asm., Muffler Front, 49 States
1261290
$569.99
13
Asm., Muffler, Front, California
1261377
$539.99
