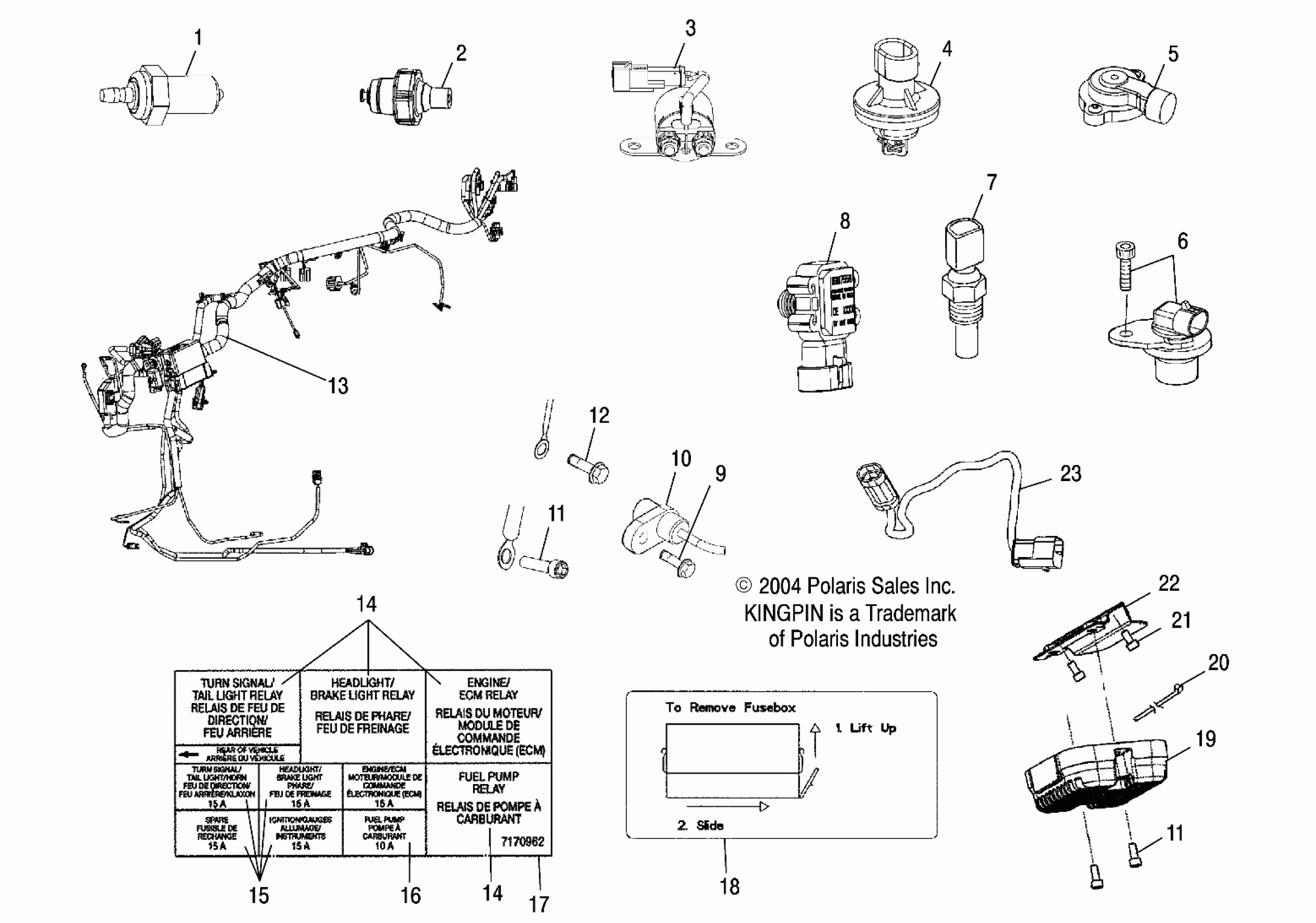

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V05CB16/DC16/ALL OPTIONS (4996259625C07) Diagram

#

Description
Price

1

Switch, Neutral Indicator

4110235

Unavailable

2

Switch, Oil Pressure

4010649

Unavailable

3

NUT

7547270

$3.99

3

Solenoid, Starter

4010947

Unavailable

4

Sensor, Air Temperature

4040077

Unavailable

5

Sensor, Throttle Position

4010225

Unavailable

5

O-Ring

1500201

$2.87

6

SCREW

7517272

$7.19

6

Sensor, Crankshaft Position

4110217

Unavailable

7

Sensor, Engine Temperature

4040076

Unavailable

8

Sensor, MAP

4040078

Unavailable

9

SCREW

7518141

$4.79

10

Sensor, Speed

4011111

$183.95

11

SCREW

7517272

$7.19

11

SCREW

7517272

$7.19

12

SCREW

7518140

Unavailable

13

Harness, Main Wire

2410472

Unavailable

14

Relay, Micro

4010948

$28.32

14

Relay, Micro

4010948

$28.32

15

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

16

FUSE-IGNITION,10 AMP

2434016

$4.79

17

Decal, Fuse Box

7170962

Unavailable

18

DECAL, FUSE BOX REMOVAL

7171031

Unavailable

19

Regulator, Voltage [Black]

2410337

Unavailable

19

Regulator, Voltage, Silver

2410421

Unavailable

20

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

21

Screw

7517739

$9.59

22

Bracket, Voltage Regulator [Black]

1013510

$27.94

22

Bracket, Voltage Regulator, Silver

1013623

$41.27

23

Harness, Jumper, Fuel Injector

2461135

Unavailable
