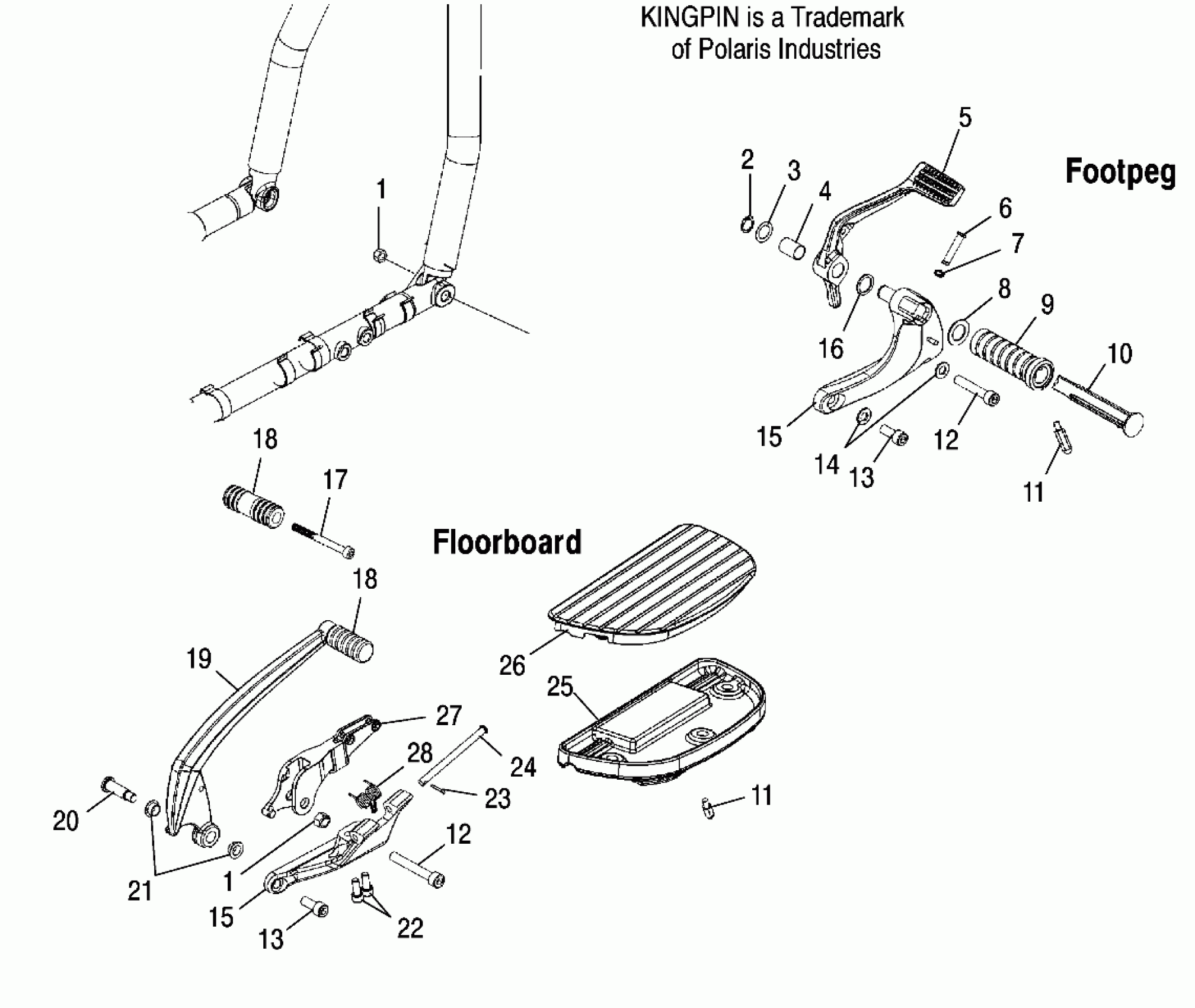

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 CHASSIS, R.H. FOOTPEG/FLOORBOARD/BRAKE - V05CB16/DC16/ALL OPTIONS (4996259625A07) Diagram

#

Description
Price

1

NUT

7547039

Unavailable

1

NUT

7547039

Unavailable

2

RING, RETAINING, EXTERNAL

7710499

$7.19

3

WASHER, FLAT

7556075

Unavailable

4

BEARING-SHIFT PEDAL

3514335

Unavailable

5

Pedal, Brake Lever

5133525-385

Unavailable

6

Pin, Pivot

7661167

$7.94

7

Ring, Retaining

7710545

$1.98

8

Washer, Flat

7556241

Unavailable

9

PAD, FOOTPEG

5412256

Unavailable

10

Footpeg, CC, RH

5133526-411

Unavailable

11

FEELER, FOOTPEG

5133539

Unavailable

11

FEELER, FOOTPEG

5133539

Unavailable

12

SCREW

7518146

Unavailable

12

SCREW

7518146

Unavailable

13

SCREW

7518101

Unavailable

13

SCREW

7518101

Unavailable

14

WASHER, FLAT

7556234

$3.19

15

Support, Footpeg, Silver, RH

5133529-385

$237.30

15

Support, Floorboard, RH

5133864-385

$266.49

15

Support, Footpeg, Silver, RH

5133529-385

$237.30

15

Support, Floorboard, RH

5133864-385

$266.49

16

WASHER, WAVE

7556273

Unavailable

17

Screw

7518420

$9.99

18

PAD, FOOTPEG

5412256

Unavailable

18

Peg, Shifter, Brake, Billet, Ness

5412651

$127.60

18

PAD, FOOTPEG

5412256

Unavailable

18

Peg, Shifter, Brake, Billet, Ness

5412651

$127.60

19

Pedal, Brake Lever, Chrome

5134178-156

Unavailable

19

Pedal, Brake Lever, Pol

5134178-410

Unavailable

20

Screw, Brake Pivot

7517715

Unavailable

21

BUSHING, PEDAL

5020904

Unavailable

22

SCREW

7517410

Unavailable

23

PIN, COTTER

7661094

Unavailable

24

PIN, FLOORBOARD SUPPORT

7661095

$2.99

25

Floorboard, Driver, Bur

5134061-425

Unavailable

25

Floorboard, Driver, Chrome [Ness]

5134061-156

Unavailable

26

Pad, Floorboard

5412456

Unavailable

27

Support, Brake Pedal

5134199-385

$139.68

28

Spring, Floorboard Support

7041623

$27.99
