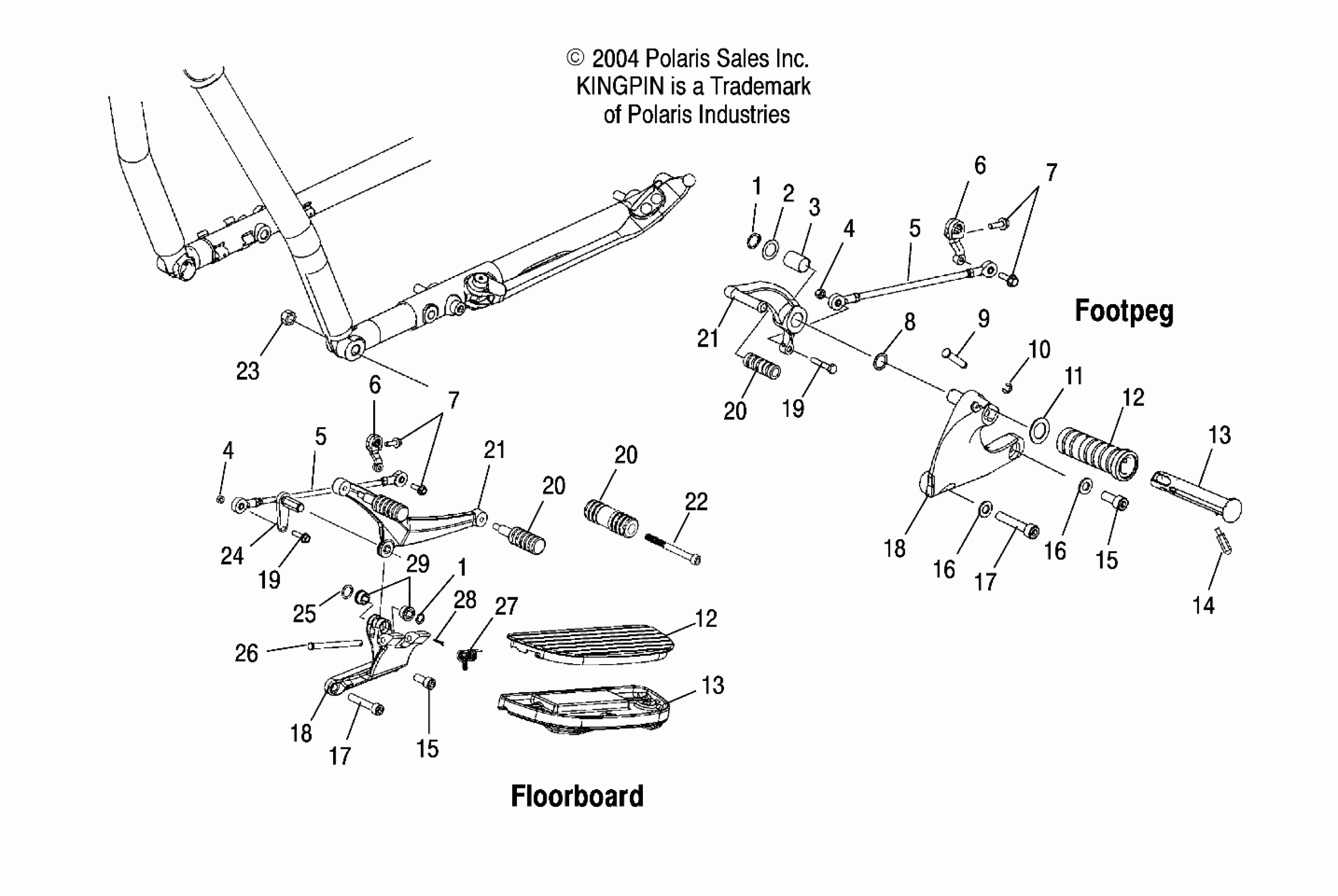

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 CHASSIS, L.H. FOOTPEG/FLOORBOARD/SHIFTER - V05CB16/DC16/ALL OPTIONS (4996259625A06) Diagram

#

Description
Price

1

Ring, Retaining, External [Floorboard]

7710508

$4.35

1

Ring, Retaining, External [Footpeg]

7710499

$7.14

1

Ring, Retaining, External [Floorboard]

7710508

$4.35

1

Ring, Retaining, External [Footpeg]

7710499

$7.14

2

WASHER, FLAT

7556075

$11.33

3

BEARING-SHIFT PEDAL

3514335

Unavailable

4

NUT

7547230

$9.52

4

NUT

7547230

$9.52

5

Asm., Shifter Linkage [Footpeg]

1013957

$93.08

5

Asm., Shifter Linkage [Floorboard]

1014246

Unavailable

5

Asm., Shifter Linkage [Footpeg]

1013957

$93.08

5

Asm., Shifter Linkage [Floorboard]

1014246

Unavailable

6

LEVER, SHIFTER

5133530

$80.94

6

LEVER, SHIFTER

5133530

$80.94

7

SCREW

7518141

$4.76

7

SCREW

7518141

$4.76

8

WASHER, WAVE

7556273

$2.38

9

Pin, Pivot

7661167

$7.94

10

Ring, Retaining

7710545

$1.98

11

Washer, Flat

7556241

Unavailable

12

PAD, FOOTPEG

5412256

$20.22

12

PAD, FLOORBOARD, DRIVER

5412456

$44.51

12

PAD, FOOTPEG

5412256

$20.22

12

PAD, FLOORBOARD, DRIVER

5412456

$44.51

13

Footpeg, CC, LH

5133540-411

$105.02

13

Floorboard, Driver

5134061-425

$214.99

13

Floorboard, Driver [Ness]

5134061-156

$216.99

13

Footpeg, CC, LH

5133540-411

$105.02

13

Floorboard, Driver

5134061-425

$214.99

13

Floorboard, Driver [Ness]

5134061-156

$216.99

14

FEELER, FOOTPEG

5133539

Unavailable

15

SCREW

7518101

$7.94

15

SCREW

7518101

$7.94

16

WASHER, FLAT

7556234

$3.17

16

WASHER, FLAT

7556234

$3.17

17

SCREW

7518146

$10.32

17

SCREW

7518146

$10.32

18

Support, Footpeg, Silver, LH

5133527-385

Unavailable

18

Support, Floorboard, Black, LH

5133863-067

$170.63

18

Support, Footpeg, Black, LH

5133527-067

$184.13

18

Support, Floorboard, Silver, LH

5133863-385

$289.68

18

Support, Footpeg, Silver, LH

5133527-385

Unavailable

18

Support, Floorboard, Black, LH

5133863-067

$170.63

18

Support, Footpeg, Black, LH

5133527-067

$184.13

18

Support, Floorboard, Silver, LH

5133863-385

$289.68

19

Screw [Floorboard]

7518329

$7.14

19

Screw [Footpeg]

7518147

$4.76

19

Screw [Floorboard]

7518329

$7.14

19

Screw [Footpeg]

7518147

$4.76

20

PEG-SHIFTER, BRAKE [Floorboard]

5412493

$36.41

20

Pad, Shift Pedal [Footpeg]

5411364

$28.32

20

Peg, Shifter, Brake, Ness

5412651

$127.60

20

PEG-SHIFTER, BRAKE [Floorboard]

5412493

$36.41

20

Pad, Shift Pedal [Footpeg]

5411364

$28.32

20

Peg, Shifter, Brake, Ness

5412651

$127.60

20

PEG-SHIFTER, BRAKE [Floorboard]

5412493

$36.41

20

Pad, Shift Pedal [Footpeg]

5411364

$28.32

20

Peg, Shifter, Brake, Ness

5412651

$127.60

21

Pedal, Shifter Lever [Floorboard]

5134179-410

$319.99

21

Pedal, Shift Lever, Silver [Footpeg]

5133528-385

$178.08

21

Pedal, Shift Lever, Chrome [Footpeg]

5133528-156

$178.08

21

Pedal, Shifter Lever, Chrome [Ness]

5134179-156

Unavailable

21

Pedal, Shifter Lever [Floorboard]

5134179-410

$319.99

21

Pedal, Shift Lever, Silver [Footpeg]

5133528-385

$178.08

21

Pedal, Shift Lever, Chrome [Footpeg]

5133528-156

$178.08

21

Pedal, Shifter Lever, Chrome [Ness]

5134179-156

Unavailable

22

Screw [Ness]

7518420

$9.99

23

NUT

7547039

$4.76

24

Shaft, Shift Lever

1014589

$35.71

25

Washer, Wave

7556322

$15.99

26

PIN, FLOORBOARD SUPPORT

7661095

$0.99

27

SPRING, SUPPORT, FLOORBOARD

7041623

$32.37

28

PIN, COTTER

7661094

$5.56

29

Bushing, Shift, Rear

3514470

Unavailable
