BRAKES, REAR - V05CB16/DC16/ALL OPTIONS (4996259625B13)

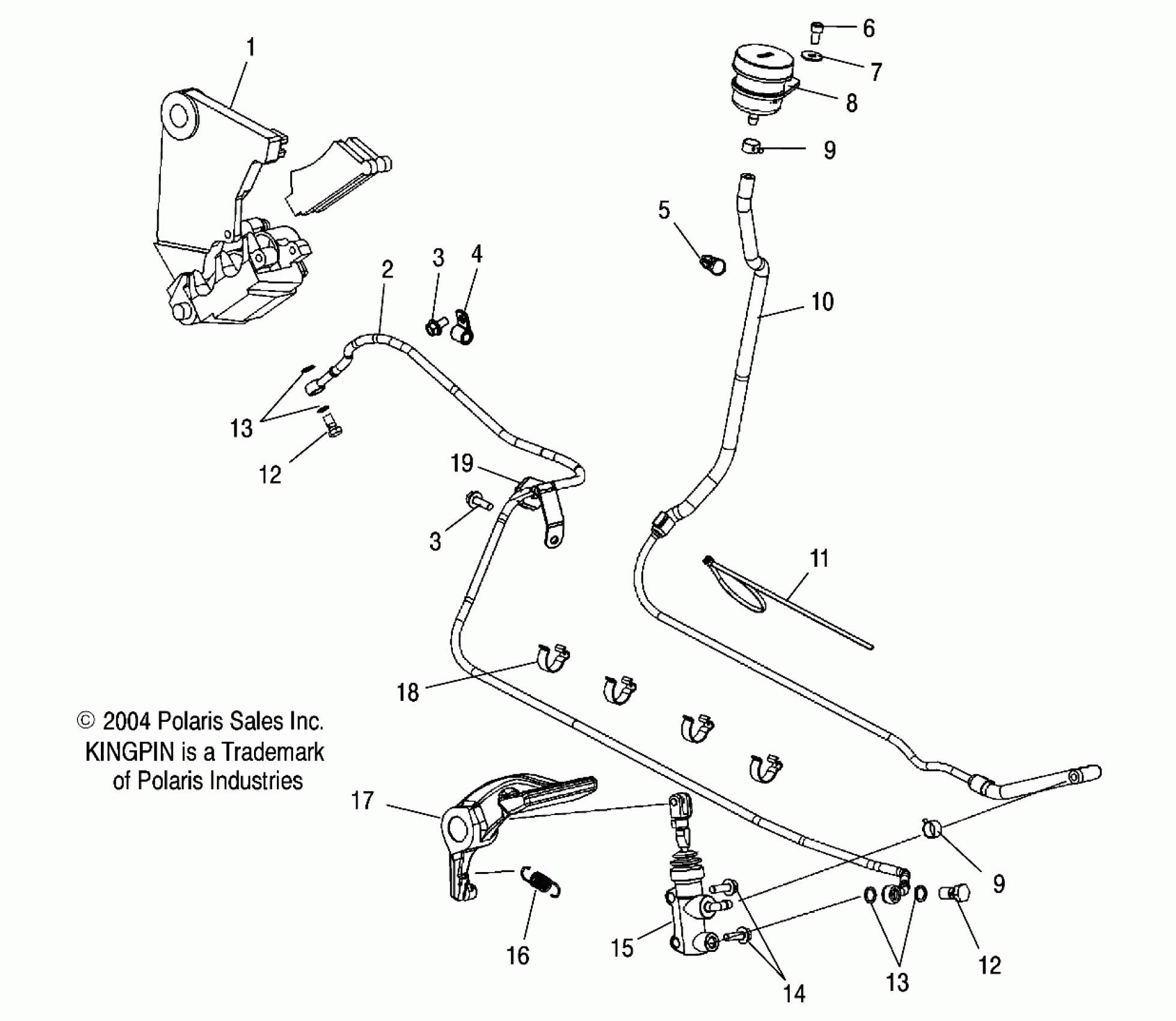

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 BRAKES, REAR - V05CB16/DC16/ALL OPTIONS (4996259625B13) Diagram
#
Description
Price
1
Kit, Bleeder Screw, Boot
2201173
$12.99
1
Kit, Boots, Caliper, Rear
2201174
Unavailable
1
Kit, Pin, Retainer, Spring, Clip
2201175
$21.81
1
Asm., Caliper, Rear
1910619
Unavailable
1
Kit, Brake Pad
2202491
Unavailable
2
Asm., Brake Hose, Rear [Footpeg]
1910746
Unavailable
2
Asm., Brake, Hose, Rear [Floorboard]
1910794
Unavailable
3
SCREW
7517704
$7.19
3
SCREW
7517704
$7.19
4
CLAMP-REAR BRAKE
7080983
$3.99
5
Dart
5433140
Unavailable
6
SCREW
7517405
$10.39
7
Washer, Flat
7556088
$4.79
8
Reservoir
1930882
Unavailable
9
Clamp, Hose
7080904
Unavailable
9
Clamp, Hose
7080904
Unavailable
10
Hose, Reservoir [Footpeg]
1910656
Unavailable
10
Hose, Reservoir [Floorboard]
1910796
$45.24
11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
12
Bolt
1930848
Unavailable
12
Bolt
1930848
Unavailable
13
Washer, Banjo, Copper
7556028
$1.59
13
Washer, Banjo, Copper
7556028
$1.59
14
Screw [Footpeg]
7518141
$4.79
14
Screw [Floorboard]
7517391
$8.79
15
Cylinder, Master, Rear [Footpeg]
1910620
$141.65
15
Cylinder, Master, Rear [Floorboard]
1910762
Unavailable
16
SPRING-EXTENSION,BRAKE, RETURN [Floorboard]
7042288
Unavailable
16
Spring, Ext., Brake Return [Footpeg]
7042186
Unavailable
17
PEDAL, BRAKE LEVER [See R.H. Footpeg/Floorboard/Brake Pg. A7, Ref. 5]
-------
Unavailable
18
Clip, Brake Line [Black]
7081014
$6.98
18
Clip, Brake Line [Black]
7080945
$3.30
18
Clip, Brake Line, Silver
7081114
$5.40
18
Clip, Brake Line, Silver
7081113
$3.97
19
SWITCH, PRESSURE
4010372
Unavailable
