Description

Price

1

Trim, Fender, Rear

5247016

$79.98

2

SCREW

7517704

$7.84

2

SCREW

7517704

$7.84

3

Taillight, LED

2410471

Unavailable

4

Pad, License Plate Mount

5812521

Unavailable

5

NUT, NYLOK

7547106

$3.48

6

Reflector, Red

2670070

$9.84

7

Bracket, License Plate

5247445

$226.99

8

Screw, Buttonhead

7517494

$8.99

9

SCREW

7517406

$4.76

10

BUMPER, GROMMET

5411323

$3.17

11

Bulb, Replacement

4030015

$4.03

11

Light, License Plate

2410407

$40.46

12

Spacer, License Plate

5812520

$24.99

13

Spacer

5134403

$3.17

14

NUT-ACORN,M6,SS,DIN 1587

7547115

$9.52

15

Bracket, License Plate

5247446

$41.27

16

Nut, Acorn

7547264

$7.14

17

Reflector, Round, Red

5433921

$32.37

17

Reflector, Round, Red

5433921

$32.37

18

Asm., Reflector [Incl. 6,17]

2632828

$61.90

19

Harness, Rear

2410473

Unavailable

20

CLIP, ELECTRICAL

7080737

$4.76

21

Asm., Fender, Rear, Black

1014214-266

$1,054.99

21

Asm., Fender, Rear, Blue

1014214-341

$807.79

21

Asm., Fender, Rear, Red

1014214-342

Unavailable

21

Asm., Fender, Rear, Silver/Blue

1014214-1180

Unavailable

21

Asm., Fender, Rear, Black/Silver

1014214-1192

$869.99

21

Asm., Fender, Rear, White/Silver

1014214-1193

$869.99

21

Asm., Fender, Rear, White/Silver/Flame

1014214-1194

Unavailable

21

Asm., Fender, Rear, Black/Flame

1014214-1195

$869.99

21

Asm., Fender, Rear, Purple Haze

1014214-1201

$929.99

22

Cover, Rail, LH

5631635-156

$178.08

22

Cover, Rail, RH

5631636-156

$170.63

23

SCREW

7518084

$7.14

24

Bracket, Taillight Shield

5248132-067

Unavailable

25

Dart

5433140

Unavailable

26

Rivet

7081040

$1.19

27

Bulb, Single Filament

4010742

$10.63

27

Signal, Rear, LH [Incl. 29]

2410404

Unavailable

27

Signal, Rear, RH [Incl. 29]

2410405

Unavailable

28

Bracket, Fender, Brace

5247156-067

$15.56

29

SCREW

7517405

$10.32

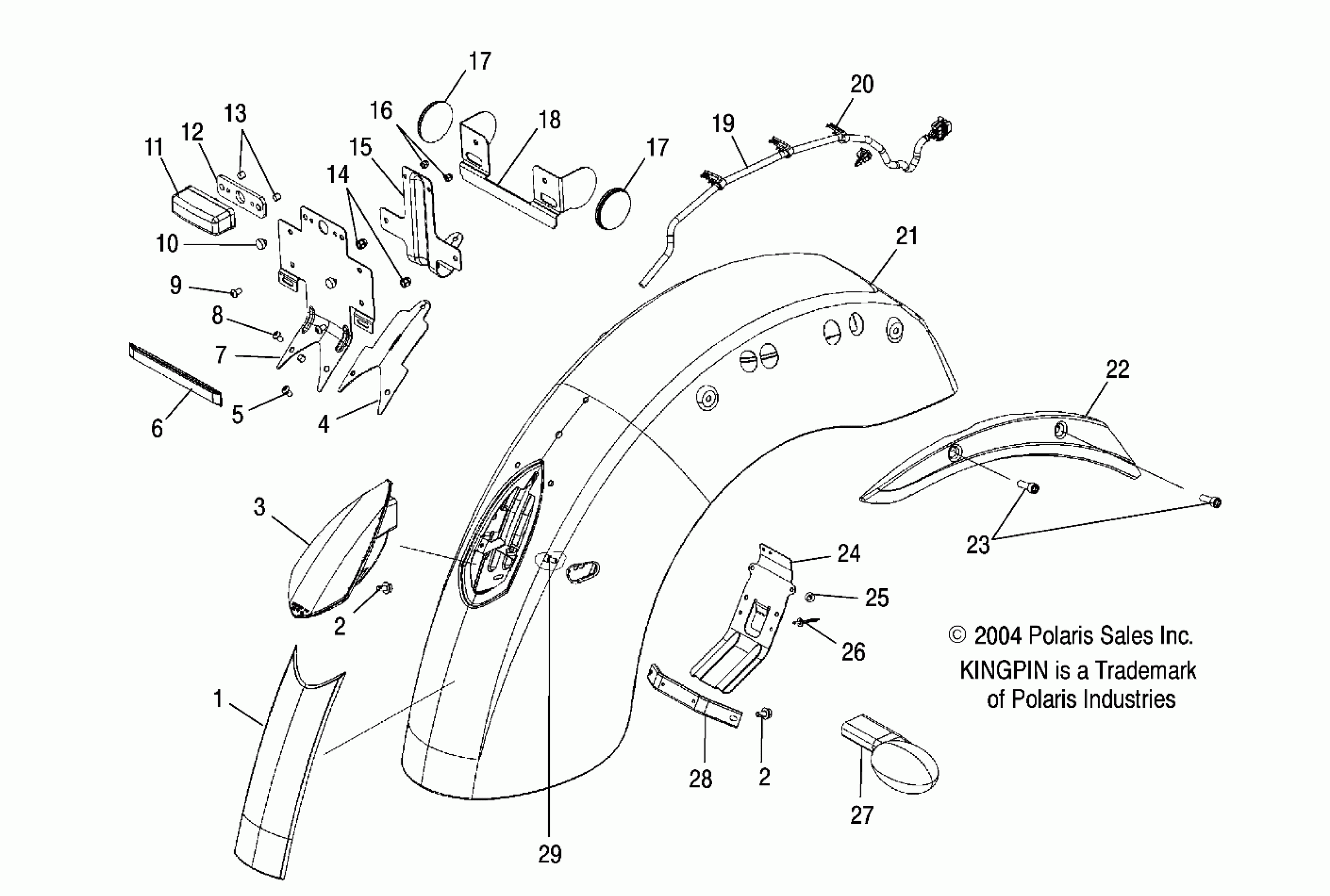

Polaris KINGPIN/NESS ALL OPTIONS - V05CB16/DC16 BODY, REAR FENDER and TAILLIGHT - V05CB16/DC16/ALL OPTIONS (4996259625B10) Diagram

Trim, Fender, Rear

SCREW

SCREW

Taillight, LED

Pad, License Plate Mount

NUT, NYLOK

Reflector, Red

Bracket, License Plate

Screw, Buttonhead

SCREW

BUMPER, GROMMET

Bulb, Replacement

Light, License Plate

Spacer, License Plate

Spacer

NUT-ACORN,M6,SS,DIN 1587

Bracket, License Plate

Nut, Acorn

Reflector, Round, Red

Reflector, Round, Red

Asm., Reflector [Incl. 6,17]

Harness, Rear

CLIP, ELECTRICAL

Asm., Fender, Rear, Black

Asm., Fender, Rear, Blue

Asm., Fender, Rear, Red

Asm., Fender, Rear, Silver/Blue

Asm., Fender, Rear, Black/Silver

Asm., Fender, Rear, White/Silver

Asm., Fender, Rear, White/Silver/Flame

Asm., Fender, Rear, Black/Flame

Asm., Fender, Rear, Purple Haze

Cover, Rail, LH

Cover, Rail, RH

SCREW

Bracket, Taillight Shield

Dart

Rivet

Bulb, Single Filament

Signal, Rear, LH [Incl. 29]

Signal, Rear, RH [Incl. 29]

Bracket, Fender, Brace

SCREW
