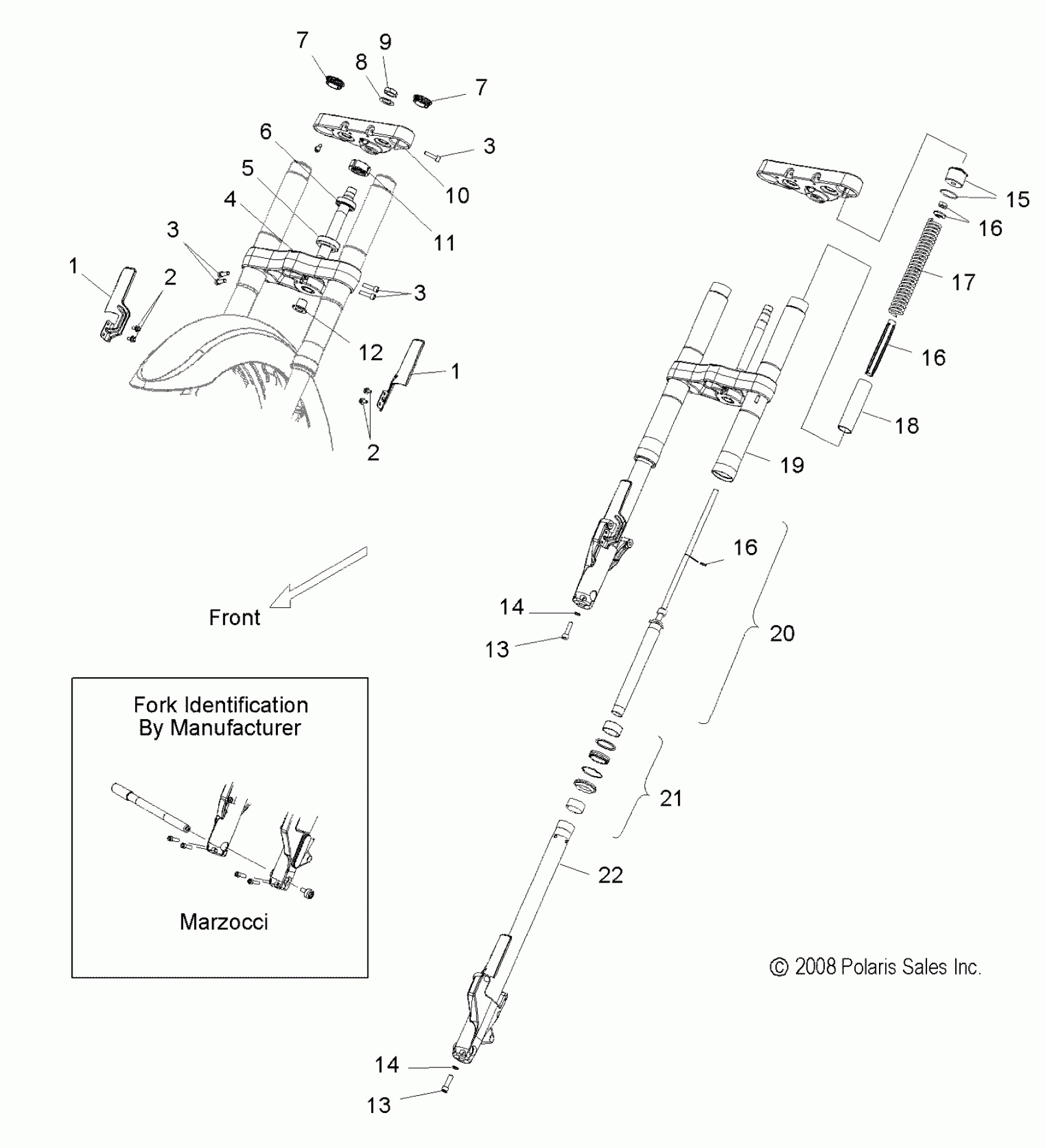

Polaris KINGPIN/KINGPIN TOURING/KINGPIN LOW/KINGPIN PINBALL ALL OPTIONS - V09CB26/CD26/KB26/PB26 SUSPENSION, FRONT FORKS, MARZOCCI - V09CB26/CD26/KB26/PB26 ALL OPTIONS (49VICFORKS09KPM) Diagram

#

Description
Price

-

Asm., Fork Leg, RH, Bru

1822692-411

Unavailable

-

Asm., Fork Leg, RH, Black

1822692-1261

$949.99

-

Asm., Fork Leg, LH, Black

1822691-1261

Unavailable

-

Asm., Fork Leg, LH, Bru

1822691-411

Unavailable

-

Asm., Fork Leg, LH, Chrome

1822691-156

Unavailable

-

Asm., Fork Leg, RH, Chrome

1822692-156

Unavailable

1

Guard, Fork, LH, Black

5247013-266

Unavailable

1

Guard, Fork, LH, Chrome

5247013-156

$123.02

1

Guard, Fork, RH, Black

5247014-266

Unavailable

1

Guard, Fork, RH, Chrome

5247014-156

Unavailable

1

Guard, Fork, LH, Black

5247013-266

Unavailable

1

Guard, Fork, LH, Chrome

5247013-156

$123.02

1

Guard, Fork, RH, Black

5247014-266

Unavailable

1

Guard, Fork, RH, Chrome

5247014-156

Unavailable

2

SCREW

7517257

$9.59

2

SCREW

7517257

$9.59

3

SCREW

7517361

$23.99

3

SCREW

7517361

$23.99

3

SCREW

7517361

$23.99

4

Asm., Bracket, Lower, Bru [Incl. 3]

1823287-411

$389.99

4

Asm., Bracket, Lower, Chrome [Incl. 3]

1823287-156

Unavailable

4

Asm., Bracket, Lower, Black [Incl. 3]

1823287-067

Unavailable

5

BEARING, NEEDLE

3514416

Unavailable

6

BEARING, BALL

3514549

Unavailable

7

CAP, CHROME

5132481-156

Unavailable

7

CAP, CHROME

5132481-156

Unavailable

8

WASHER

7556246

Unavailable

9

Nut, Top, Triple Clamp

5134148

Unavailable

10

Bracket, Upper, 50mm, Chrome

5135827-156

$376.17

10

Bracket, Upper, 50mm, Black

5135827-067

Unavailable

10

Bracket, Upper, 50mm, Bru

5135827-411

$319.99

11

NUT, STEERING HEAD

5631935

Unavailable

12

CAP, STEERING STEM

5412473

Unavailable

13

SCREW

-------

Unavailable

13

SCREW

-------

Unavailable

14

Washer, Oil Seal

3610069

$23.81

14

Washer, Oil Seal

3610069

$23.81

15

Cap, Fork Tube

5134363

$73.81

15

O-Ring

5412560

Unavailable

16

Kit, Cartridge Hardware [Incl. 13]

2202685

$76.81

16

RETAINER, SPRING

-------

Unavailable

16

WASHER

-------

Unavailable

16

NUT, JAM

-------

Unavailable

16

GUIDE, SPRING

-------

Unavailable

16

Bolt

-------

Unavailable

16

CLIP, RETAINING

-------

Unavailable

16

Kit, Cartridge Hardware [Incl. 13]

2202685

$76.81

16

RETAINER, SPRING

-------

Unavailable

16

WASHER

-------

Unavailable

16

NUT, JAM

-------

Unavailable

16

GUIDE, SPRING

-------

Unavailable

16

Bolt

-------

Unavailable

16

CLIP, RETAINING

-------

Unavailable

16

Kit, Cartridge Hardware [Incl. 13]

2202685

$76.81

16

RETAINER, SPRING

-------

Unavailable

16

WASHER

-------

Unavailable

16

NUT, JAM

-------

Unavailable

16

GUIDE, SPRING

-------

Unavailable

16

Bolt

-------

Unavailable

16

CLIP, RETAINING

-------

Unavailable

17

Spring, Fork

7042330

$102.38

18

Spacer

5134364

$11.11

19

Tube, Outer, Clear

5134829-411

Unavailable

19

Tube, Outer, Black

5134829-468

Unavailable

20

Kit, Cartridge Asm.

2202684

$216.99

20

CARTRIDGE

-------

Unavailable

21

Kit, Bearing Seal

2202686

Unavailable

22

Kit, Inner Tube, LH, Chrome [Incl. 3]

2202682-156

Unavailable

22

Kit, Inner Tube, LH, Bru [Incl. 3]

2202682-411

Unavailable

22

Kit, Tube, Inner, RH, Black [Incl. 3]

2202683-067

$265.87

22

Kit, Inner Tube, RH, Bru [Incl. 3]

2202683-411

Unavailable

22

Kit, Inner Tube, RH, Chrome [Incl. 3]

2202683-156

Unavailable

22

Kit, Tube, Inner, LH, Black [Incl. 3]

2202682-067

$257.94
