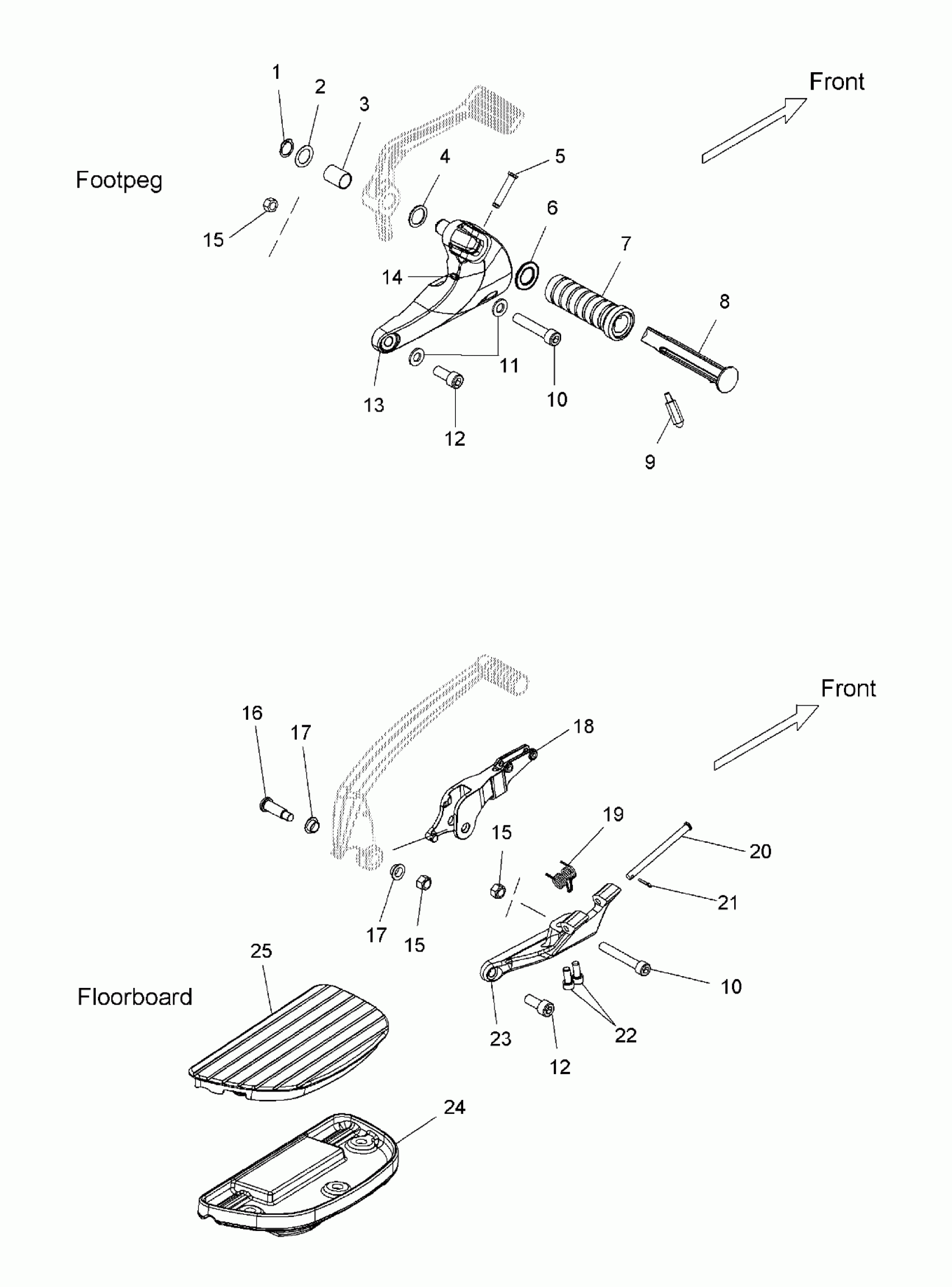

Polaris KINGPIN/KINGPIN TOURING/KINGPIN LOW/KINGPIN PINBALL ALL OPTIONS - V09CB26/CD26/KB26/PB26 CHASSIS, FOOTPEG and FLOORBOARD, RH - V09CB26/CD26/KB26/PB26 ALL OPTIONS (49VICFOOTPEGRH08VEGAS) Diagram

#

Description
Price

1

RING, RETAINING, EXTERNAL

7710499

$7.14

2

WASHER, FLAT

7556075

$11.33

3

BUSHING, SHIFT PEDAL

3514490

$6.65

4

WASHER, WAVE

7556273

$2.38

5

Pin, Pivot

7661951

$11.32

6

WASHER-FOOTPEG,PIVOT

7556274

$3.17

7

PAD, FOOTPEG

5412256

$20.22

8

FOOTPEG, RH

5136036-411

Unavailable

9

FEELER, FOOTPEG

5133539

Unavailable

10

SCREW

7518146

$10.32

10

SCREW

7518146

$10.32

11

WASHER, FLAT

7556234

$3.17

12

SCREW

7518101

$7.94

12

SCREW

7518101

$7.94

13

Support, Footpeg, Black, RH

1016659-266

Unavailable

14

E-CLIP,M6, DIN 6799

7710466

$3.17

15

Nut [Qty. 2 on Floorboard]

7547039

$4.76

15

Nut [Qty. 2 on Floorboard]

7547039

$4.76

15

Nut [Qty. 2 on Floorboard]

7547039

$4.76

16

Screw, Brake Pivot

7517715

$48.00

17

BUSHING, PEDAL

5020904

$5.22

17

BUSHING, PEDAL

5020904

$5.22

18

Support, Brake Pedal, Silver

5135457-385

$139.68

18

SUPPORT, BRAKE PEDAL, BLACK

5135457-266

$174.60

19

Spring, Floorboard Support

7041623

$32.37

20

PIN, FLOORBOARD SUPPORT

7661095

$0.99

21

PIN, COTTER

7661094

$5.56

22

SCREW

7517410

$10.99

23

Support, Floorboard, Black, RH

5134623-266

$499.99

23

Support, Floorboard, Black, RH, Low [Kingpin Low]

5136522-266

Unavailable

24

Floorboard, Driver, Bur

5136038-425

$214.99

25

Pad, Floorboard

5412456

$44.51
