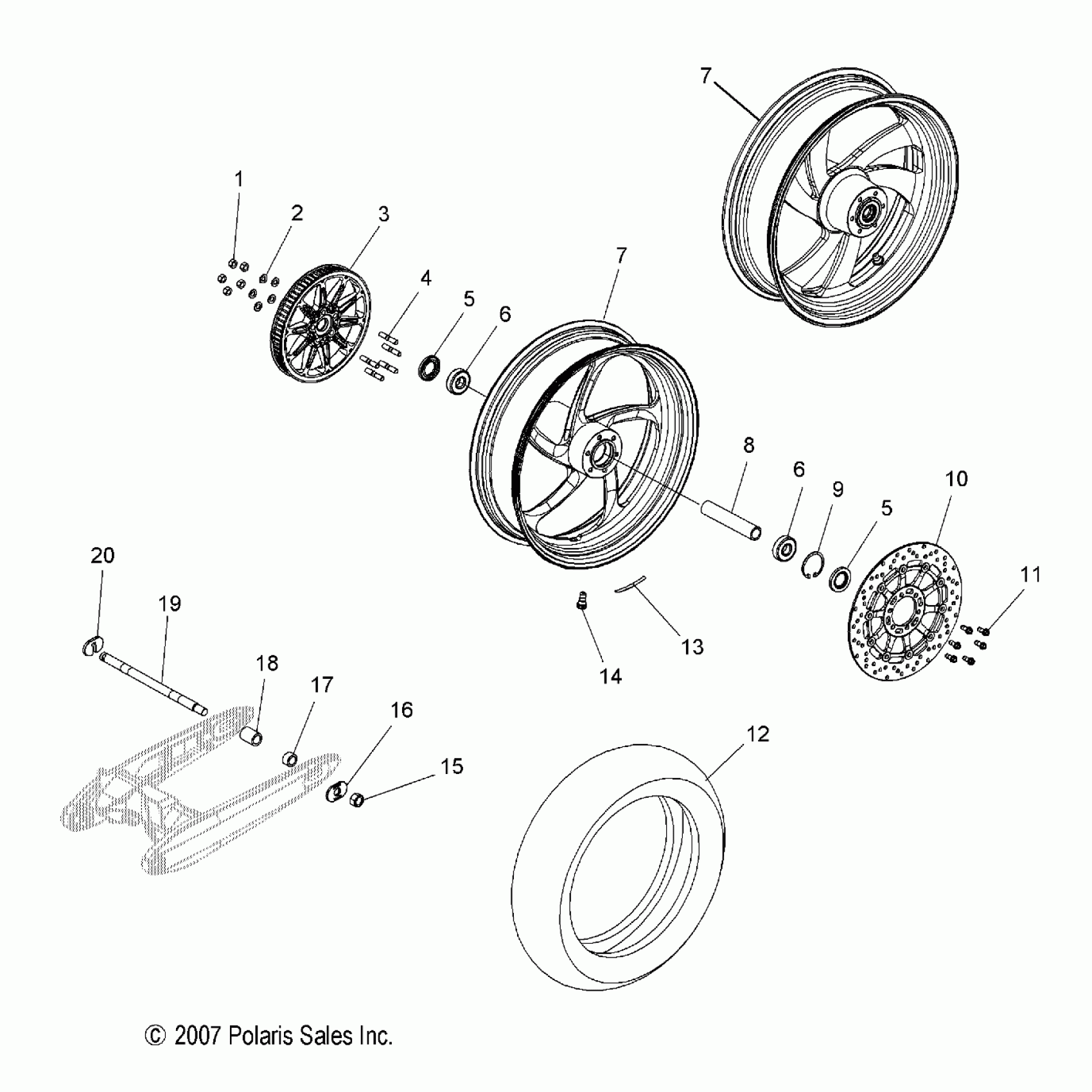

Polaris KINGPIN/KINGPIN 8 BALL/KINGPIN TOUR ALL OPTIONS - V08CB26/CD26/PB26 WHEELS, REAR - V08CB26/CD26/PB26 ALL OPTIONS (49VICWHEELRR08VEGAS) Diagram

NUT

7547232

$23.99

WASHER

7556287

$7.19

Asm., Sprocket, 70T, Silver

1332399-385

Unavailable

Stud

7518311

Unavailable

SEAL

3610094

Unavailable

SEAL

3610094

Unavailable

BEARING, BALL

3514405

Unavailable

BEARING, BALL

3514405

Unavailable

Asm., Wheel, Billet, Rear [Incl. 5-9,13,14]

1521035-405

Unavailable

Asm., Wheel, Rear, Cast, Clear [Incl. 5-9,13,14]

1521116-409

$989.99

Asm., Wheel, Rear, Cast, Black [Incl. 5-9,13,14]

1521116-266

Unavailable

Asm., Wheel, Billet, Rear [Incl. 5-9,13,14]

1521035-405

Unavailable

Asm., Wheel, Rear, Cast, Clear [Incl. 5-9,13,14]

1521116-409

$989.99

Asm., Wheel, Rear, Cast, Black [Incl. 5-9,13,14]

1521116-266

Unavailable

Spacer, Bearing, Mid

5334138

Unavailable

Ring, Retaining

7710526

Unavailable

Rotor, Brake, Floating

1910959-385

$264.99

SCREW

7518661

Unavailable

Tire, Rear

5412373

Unavailable

Weight, Balance

1520618

Unavailable

Valve, Rim [Cast]

1520232

$3.17

Valve, Rim [Billet]

1520995

Unavailable

NUT, HEX

7547226

$23.81

WASHER, INDICATOR, AXLE

5248452-236

Unavailable

SPACER, BEARING, LH

5631479

Unavailable

SPACER, WHEEL, REAR, RH

5631581

Unavailable

AXLE, REAR

5135743

Unavailable

RETAINER-AXLE, REAR

5248599

Unavailable
