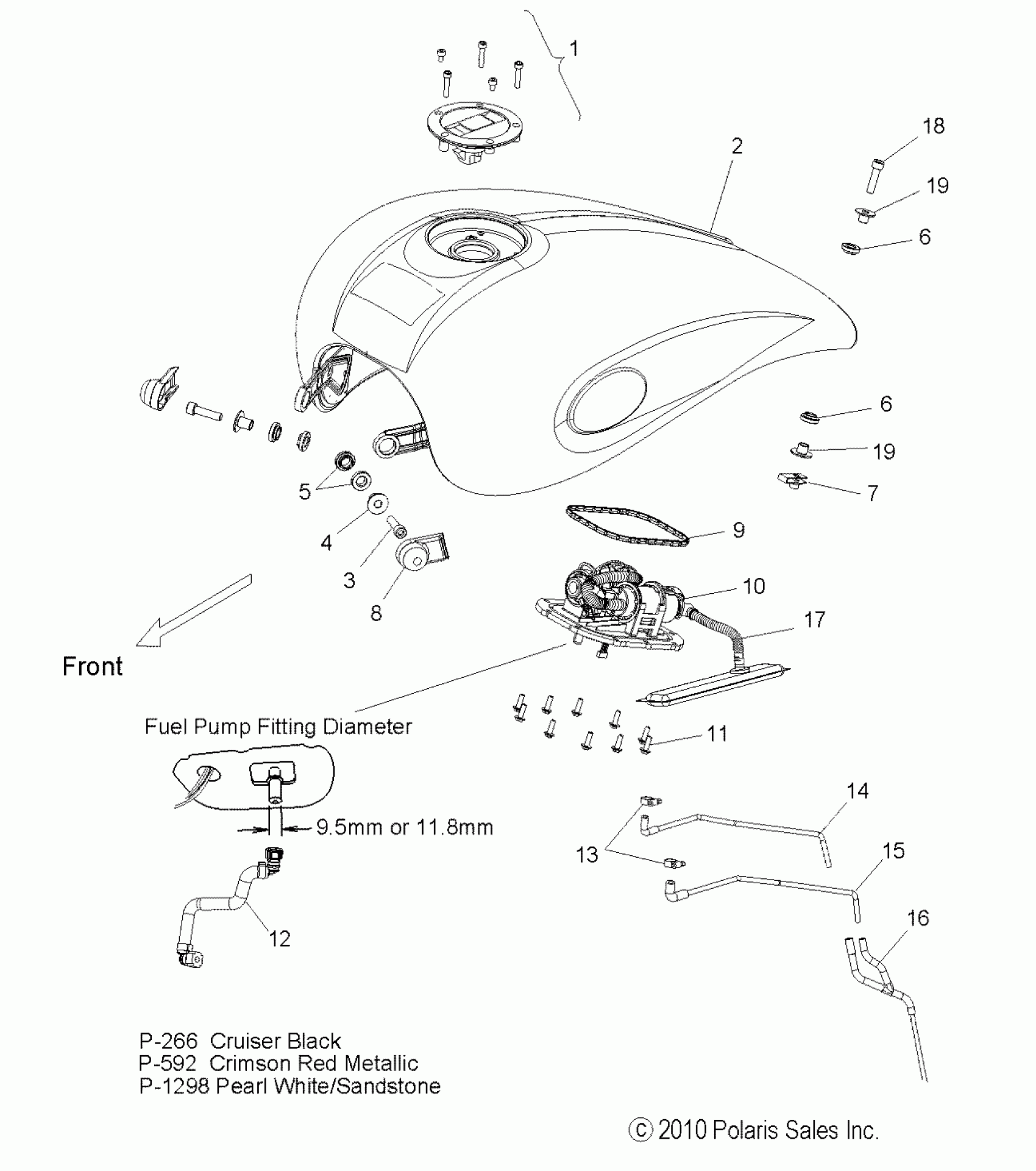

Polaris KINGPIN ALL OPTIONS - V11CA36/CB36 BODY, FUEL TANK - V11CA36/CB36 ALL OPTIONS (49VICFUEL11KP) Diagram

#

Description
Price

1

ASM., IGNITION/FUEL CAP, BLACK

4012376-266

Unavailable

1

Asm., Ignition/Fuel Cap, Black [Int'l]

4012377-266

Unavailable

1

SCREW

7518086

$5.59

1

SCREW

7517515

Unavailable

1

SCREW

7517845

Unavailable

2

Tank, Fuel

1018004-266

Unavailable

2

Tank, Fuel

1018004-1298

$2,309.99

2

Tank, Fuel

1018004-592

$2,289.99

3

SCREW

7517525

$3.99

4

BUSHING, FLANGE

5136665

Unavailable

5

Bushing

5412480

Unavailable

6

BUSHING, FLANGE, RUBBER

5413491

Unavailable

6

BUSHING, FLANGE, RUBBER

5413491

Unavailable

7

U-NUT

7547233

Unavailable

8

COVER, MOUNT, LH

5412414

Unavailable

8

COVER, MOUNT, RH

5412415

$27.99

9

SEAL, FUEL, MOLDED

5413346

Unavailable

10

PUMP, FUEL

2521169

Unavailable

11

SCREW

7518923

Unavailable

12

Line, Fuel, Tank to Fuel Rail [For 11.8 mm Fuel Tank Fitting]

5414150

Unavailable

12

Line, Fuel, Tank to Fuel Rail [For 9.5 mm Fuel Tank Fitting]

5413413

$84.98

13

CLAMP, HOSE

7081151

Unavailable

14

LINE, WATER DRAIN

5435764

Unavailable

15

LINE, FUEL VENT

5437376

Unavailable

16

LINE, WATER/FUEL TO GROUND

5435771

Unavailable

17

ASM., FILTER, FUEL

2520909

Unavailable

18

SCREW

7517946

Unavailable

19

Bushing, Flange

5137570

$34.99

19

Bushing, Flange

5137570

$34.99
