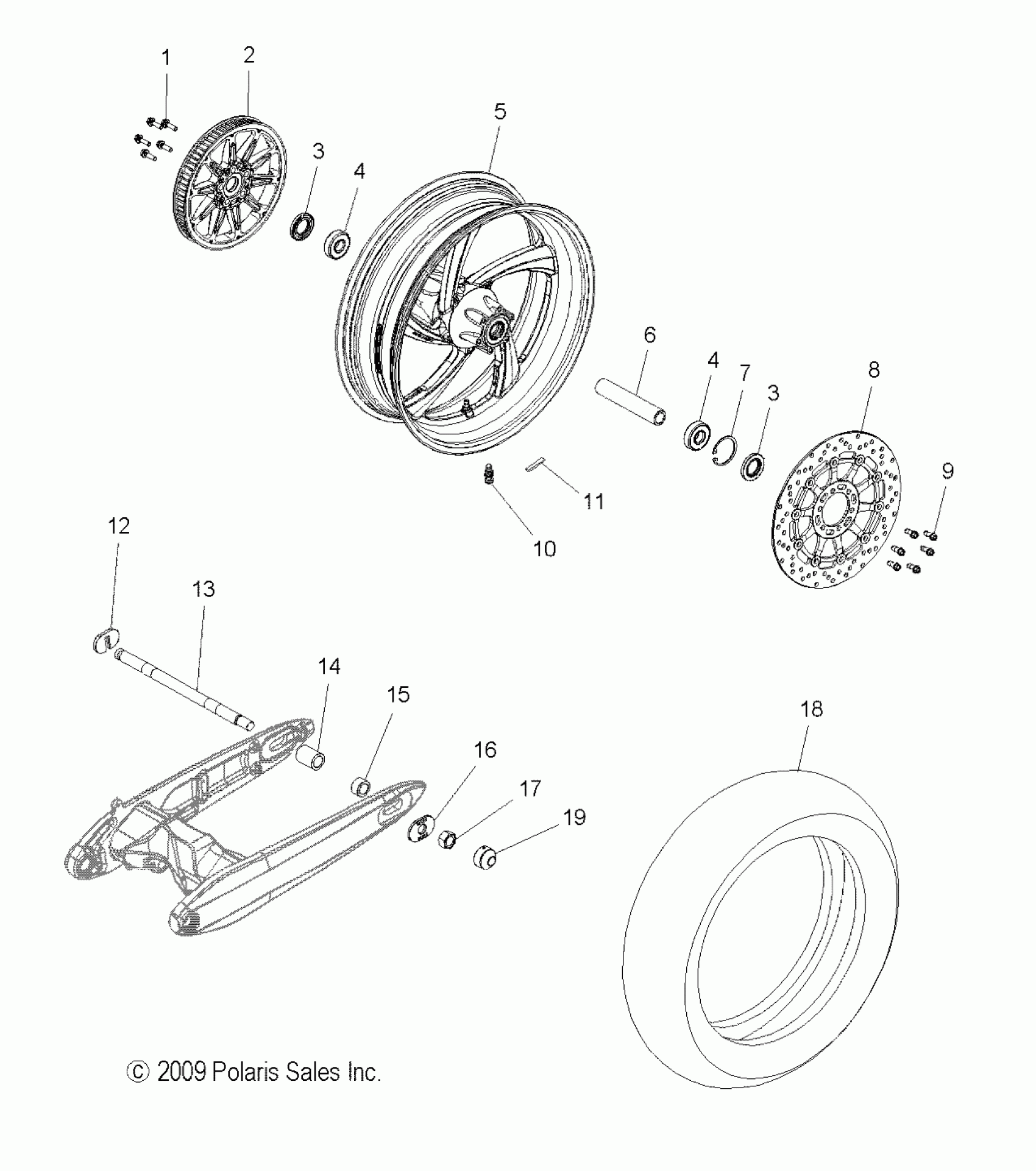

Polaris KINGPIN ALL OPTIONS - V10CB26/PB26 WHEELS, REAR - V10CB26/PB26 ALL OPTIONS (49VICWHEELRR10VGS) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

Asm., Sprocket, 70T, Black

1332399-266

$564.99

2

Asm., Sprocket, 70T, Silver

1332399-385

Unavailable

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

Asm., Wheel, Rear, Cast, Silver [Incl. 3-7,10,11]

1521153-385

$682.49

5

ASM., WHEEL, REAR, CAST, BLACK [Incl. 3-7,10,11]

1521153-266

$682.49

6

SPACER, BEARING, MID

5335682

$61.89

7

Ring, Retaining

7710526

$10.32

8

Rotor, Brake, Black

1911463-266

$379.99

8

Rotor, Brake, Silver

1911463-385

$264.99

9

SCREW

7518661

$1.59

10

VALVE, RIM

1521312

$11.32

11

Weight, Balance

1520253

Unavailable

12

RETAINER-AXLE, REAR

5248599

$27.78

13

AXLE, REAR

5135743

$67.46

14

SPACER, WHEEL, REAR, RH

5631581

$11.99

15

SPACER, BEARING, LH

5631479

$3.97

16

WASHER, INDICATOR, AXLE

5248452-236

$27.78

17

NUT, HEX

7547226

$23.81

18

TIRE, REAR

5413825

$319.99

19

Asm., Cover, Axle Nut [Chrome][Int'l]

1017531

$79.99

19

Screw, Set [Int'l]

7518449

$3.97
