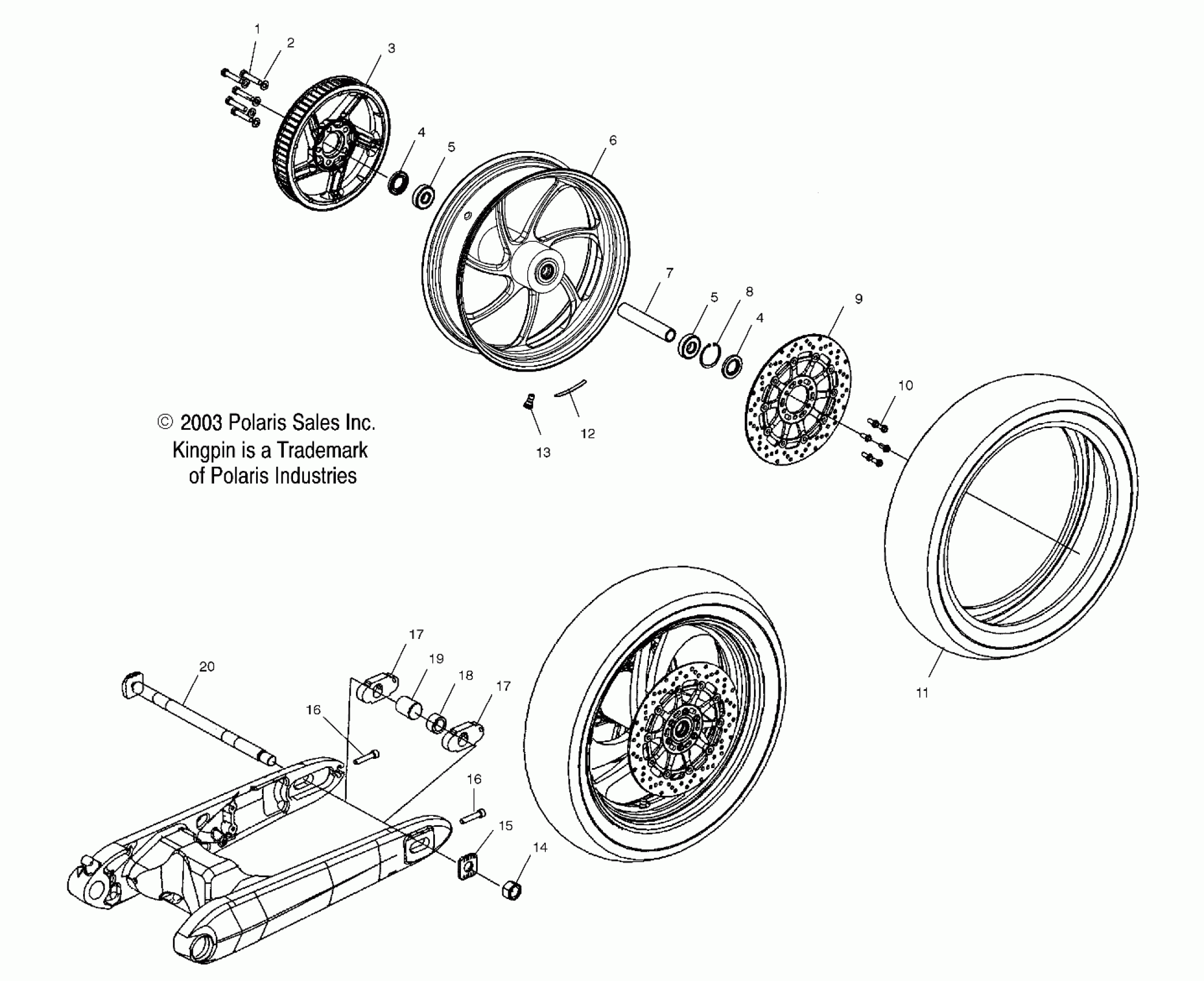

Polaris KINGPIN ALL OPTIONS - V04CB16 WHEELS, REAR (BILLET) - V04CB16/ALL OPTIONS (4989568956B03) Diagram

#

Description
Price

1

Screw

7518044

$6.19

2

WASHER, FLAT

7556234

$3.17

3

Asm., Sprocket, 64T

1341448

Unavailable

4

SEAL

3610094

$31.75

4

SEAL

3610094

$31.75

5

BEARING, BALL

3514405

$19.84

5

BEARING, BALL

3514405

$19.84

6

Asm., Wheel, Billet, Rear [Incl. 4-8,12,13]

1520616

Unavailable

6

Asm., Wheel, Billet, Rear [Incl. 4-8,12,13](If built 10/14/03, 10/15/03, 10/27/03 or 10/28/03 only)

1520768

Unavailable

7

Spacer

5334138

$61.89

8

Ring, Retaining

7710526

$10.32

9

Rotor, Brake, Floating

1910623

$349.99

10

Screw

7518297

$5.56

11

Tire, Rear

5412373

$319.99

12

Weight, Balance

1520618

Unavailable

13

Valve, Rim

1520232

$3.17

14

Nut, Hex, Fujilok

7547226

$23.81

15

Washer, Indicator, Axle

5245087-236

$15.70

16

SCREW

7518178

$7.14

16

SCREW

7518178

$7.14

17

Mount, Axle, Adjustment

5133481

$27.94

17

Mount, Axle, Adjustment

5133481

$27.94

18

SPACER, BEARING, LH

5631479

$3.97

19

Spacer, RH

5631480

$5.79

20

Shaft, Spindle

1014470

Unavailable
